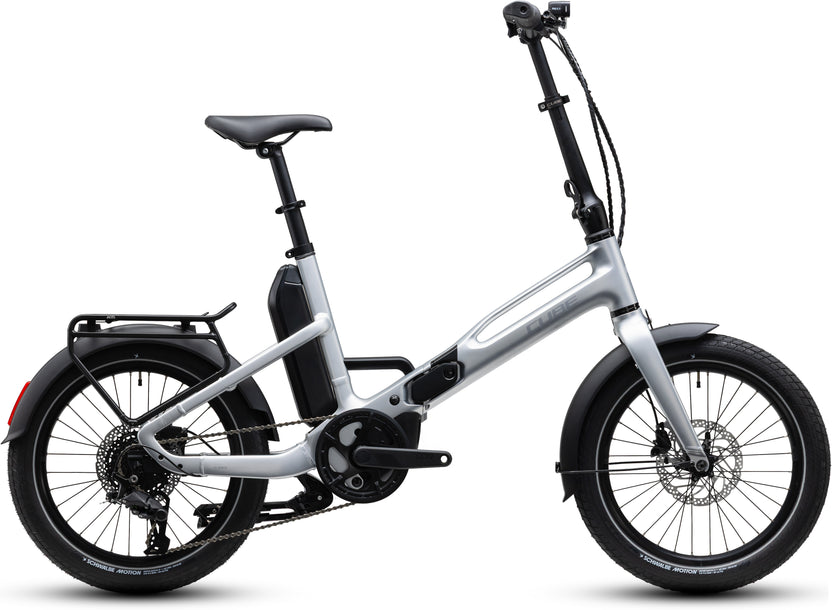

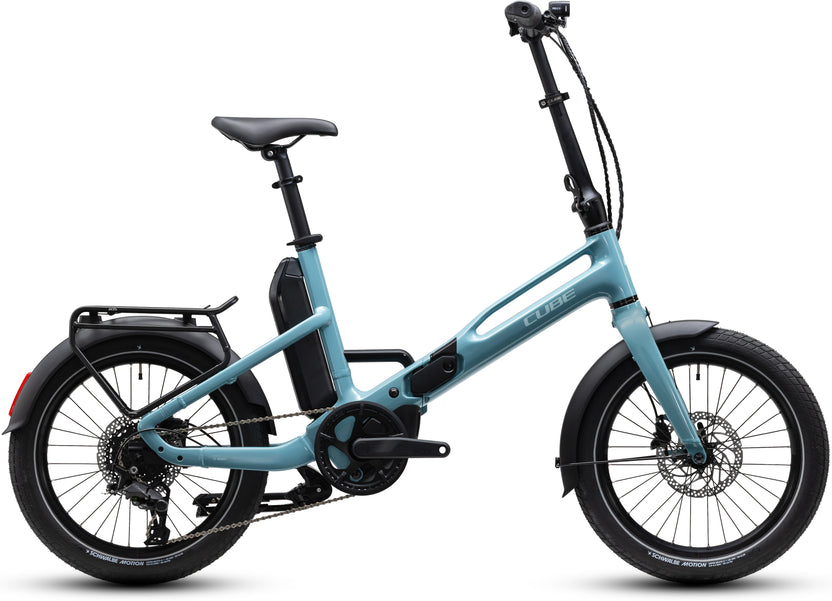

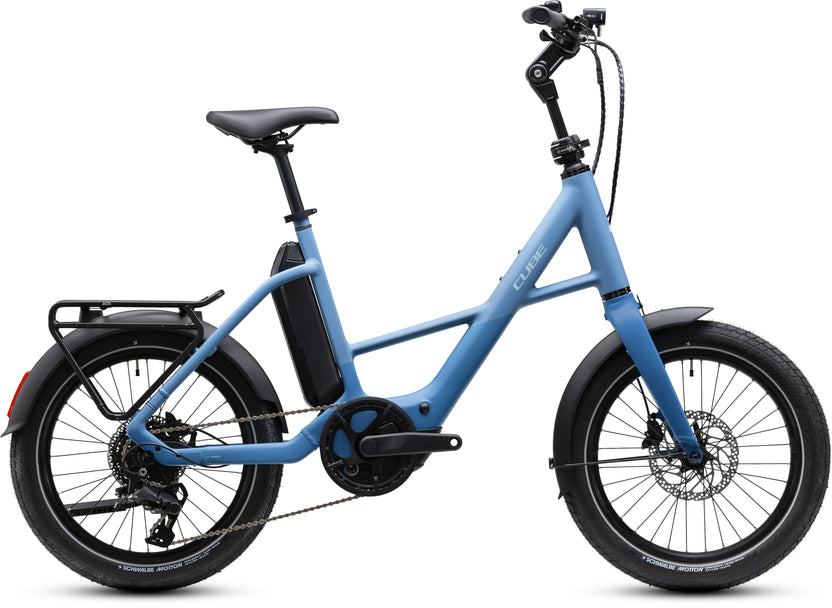

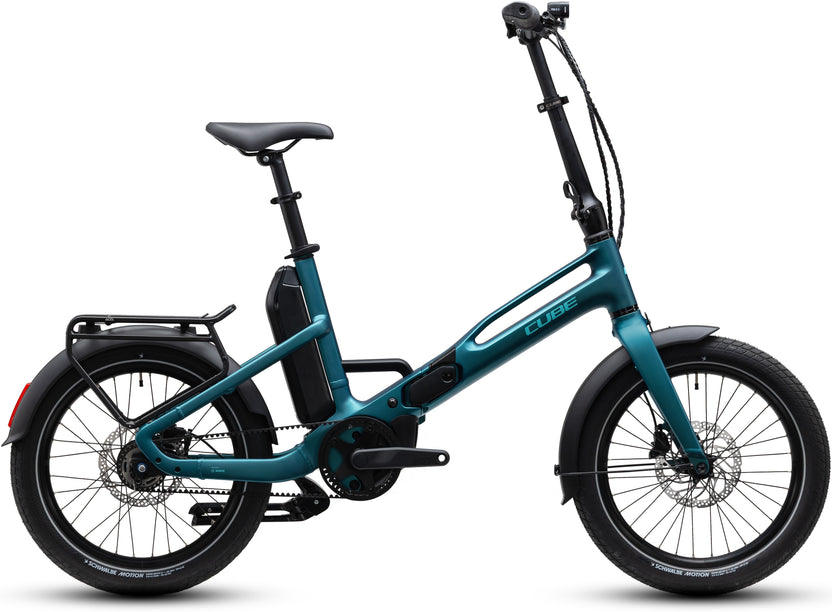

A great bike makes your life easier, and that's just what we had in mind with the Compact Hybrid. Bosch Smart System power, compact frame design and a full complement of accessories plus a wide gear range make for the ideal everyday companion – from holidays to commuting.

Frame

Our foldable Bosch e-bike already set the benchmark for flexibility, mobility and functionality. But now it also features an improved folding mechanism, a more ergonomic carry handle, HIC interface for easy attachment of front-mounted carriers and accessories, and a neatly integrated rear carrier. It's easy to store or transport, so it can go wherever you need it to go. The 540Wh battery sits neatly behind the seat tube, and Bosch's Smart System gives you the control you need via the eBike Flow app. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height, and we included mudguards, a really stable kickstand and lights too. It's ready for anything.

Specification

Frame	Aluminium Superlite, Comfort Ride Geometry, Seatstay-Integrated Carrier, Integrated Folding Technology, Carrying Handlebar, Slider Dropout
Fork	Aluminium Rigid Fork, 20"
Headset	ACROS Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Stem	Cube Folding Stem, Adjustable Length, 25,4mm Clamp
Handlebar	CUBE Comfort Trail Bar, 25.4mm
Grips	ACID Travel Comfort Gripshift
Shifters	Shimano Nexus SL-C7000-5, Revoshift
Brakes	Shimano BR-MT200, Hydr. Disc Brake (180/180)
Crankset	ACID Trekking Hybrid, 46T
Hub Sprocket	Gates CDX Shimano Nexus 28T
Belt	Gates CDC
Rims	ACID EX30, 32H, Disc, Tubeless Ready
Hub Front	Shimano HB-QC300, QR, Centerlock
Hub Rear	Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut
Tires	Schwalbe Motion Super Moto-X, Double Defense, 62-406
Pedals	Folding Pedal, Aluminium
Saddle	ACID Sequence 160 Pro Bubble Foam
Seatpost	Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
Headlight	ACID Front Light PRO-E 80 X-Connect, 12V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	Two Leg Kickstand
Mudguard	ACID 62 IC-Mount
Bell	Easy Bell
Carrier	ACID 20" Seatstay-Integrated Carrier, RILink, CILink
Motor	Bosch Drive Unit Performance Line 75Nm (BDU34)
Battery	Bosch PowerPack 540
Charger	Bosch 2A
Remote	Bosch Purion 200 with Integrated Display
Weight	25,5 kg
System Weight max.	150 kg
Driver max. Weight	100 kg
