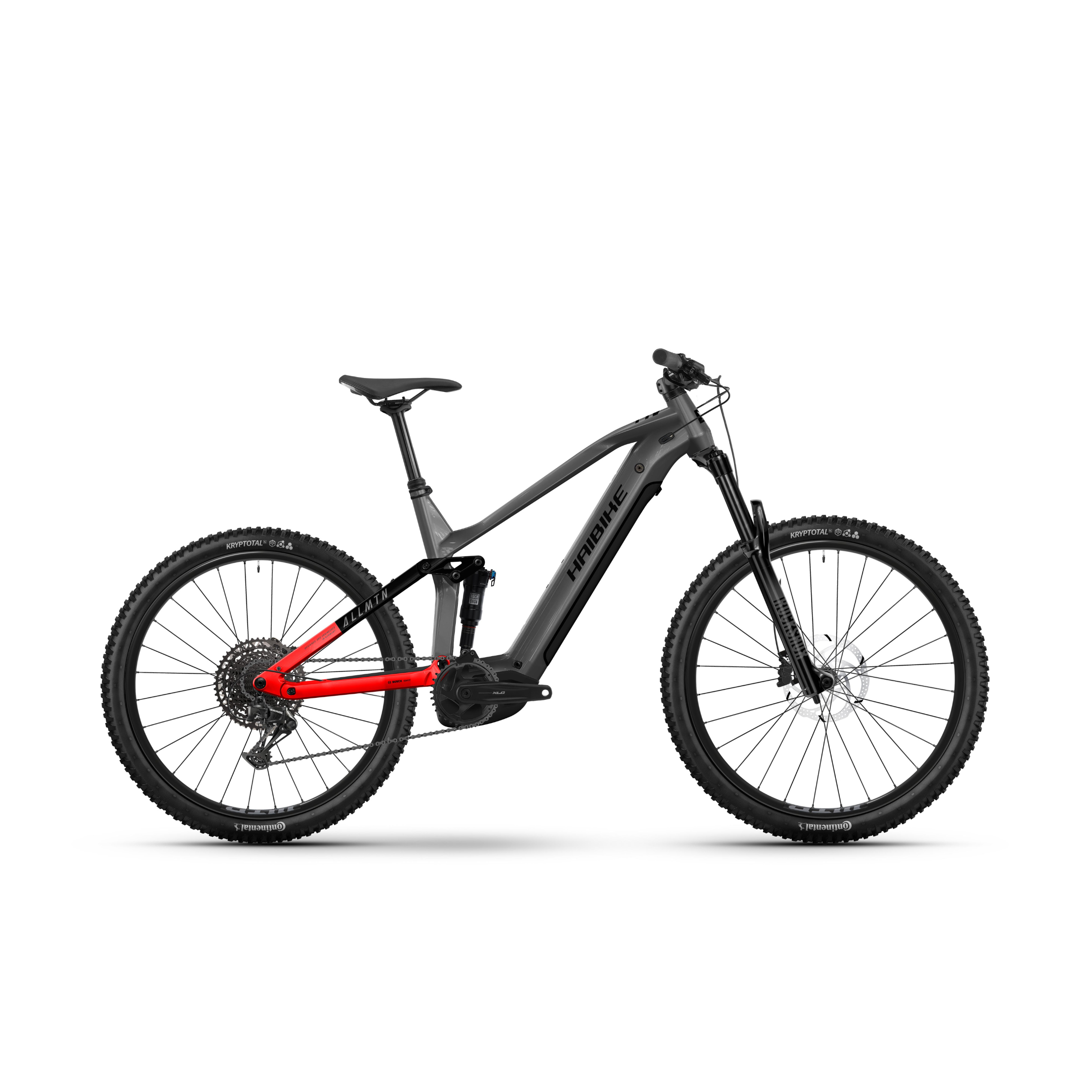

Haibike
ALLMTN 4
£4,199.99
Low Stock
Click and Collect
UK Delivery Available
Colour
Size

Product Details

Summit thrills and valley fun in one ride. Our new ALLMTN 4 is bursting with fun, even when you’re aiming high. We’ve equipped this full-suspension all-mountain eMTB with a newly-developed aluminium frame, offering the perfect blend of weight savings, comfort and stiffness thanks to its unique design. The finely tuned component mix complements the experience: with the powerful Bosch Performance CX motor and 800Wh battery, plus an optional Range Extender, you can enjoy limitless long mountain tours. With 160mm front and 150mm rear travel, the descents are pure fun, and the Sram components ensure you're always in the right gear. In short, this is the ideal eMTB for those looking to experience the perfect mix of summit thrills and valley fun.

Battery - Bosch InTube 800Wh

Battery capacity - 800 Wh

Charger - Bosch Charger 4A

Display - Bosch Purion 200

E-bike system - Bosch

Maximum support speed - 25 km/h

Motor - Bosch Performance CX

Motor torque (nm) - 85 Nm

Cassette - Sram PG-1230 Eagle HG

Chain - Sram Chain SX Eagle 12s

Crankset - Miranda Crius ISIS Crankarm 165 mm + SRAM T-Type Chainring 165

Derailleur Rear - Sram NX Eagle 12s

Frame - High Aluminium Uni

Frame size - 49 cm

Gear - Sram Derailleur

Max permissible weight (Rider, Cargo and Bike)135 kg

Number of gears - 12

Shifter Right - Sram Trigger shift NX Eagle Trigger

Front Fork - Rockshox Psylo Gold RC 160 mm

Rear travel - 150 mmShock

Rockshox Deluxe Select 205x65mm, Trunnion, DebonAir+

Travel - 160 mm

Brake light - No

Brake Rear - TRP Hydraulic Disc brake Slate EVO HD-M807, 4 pistons 203 mm

Front brake - TRP Hydraulic Disc brake Slate EVO HD-M807, 4 pistons 203 mm

Grip kind - VLG-1751D2, MTB Grips

Handlebar - Haibike TheBar++ Dia. 31.8 mm

Pedal - XLC VPE-527 MTB Alloy Pedal w. Reflector

Saddle - Selle Royal Vivo 1216HRN

Seatpost - Limotec Dropperpost A1H Dropper, Dia. 34.9 mm, Travel: 170 mm

Front wheel size - 29

Rear wheel size - 27.5

Rim - WTB ST i30 TCS 2.0 32H

Tyre - Continental Kryptotal-Fr, Trail Endurance 60-622

Tyre size ETRTO60-622

Mixed Sized Wheels: 29" and 27.5" (Mullet)

Suspension Travel: 160mm front and 160mm rear

Motor torque (nm)85 Nm
