e-System

Battery - Pinion InTube 800Wh

Battery brand - Pinion

Battery capacity - 800 Wh

Charger - Pinion FIT Standard Charger 48V

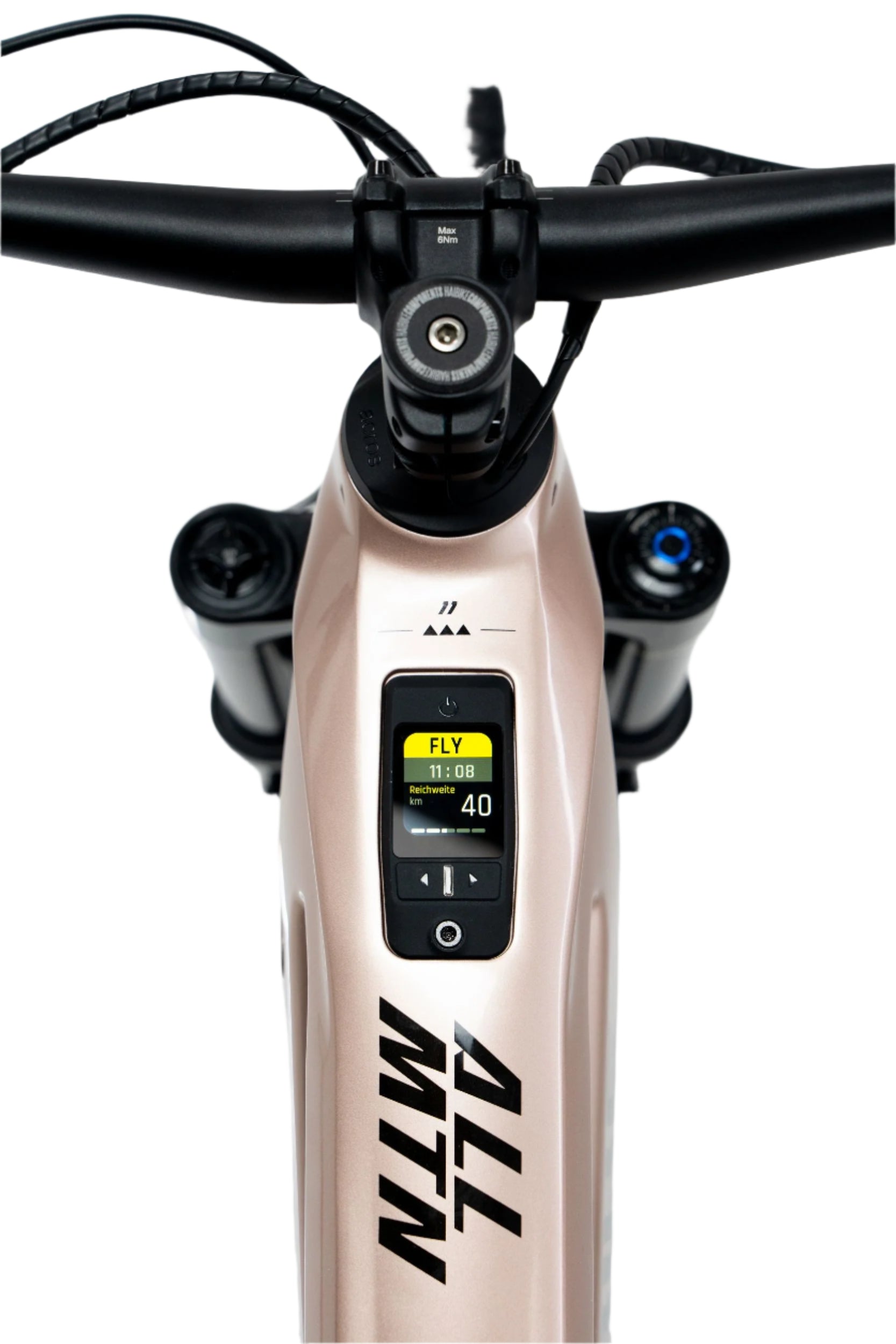

Display - Pinion FIT Master Node Display + Remote Pure

E-bike system

Pinion - Maximum support speed 25 km/h

Motor - Pinion E1.12 MGU

Motor torque (nm) - 85 Nm

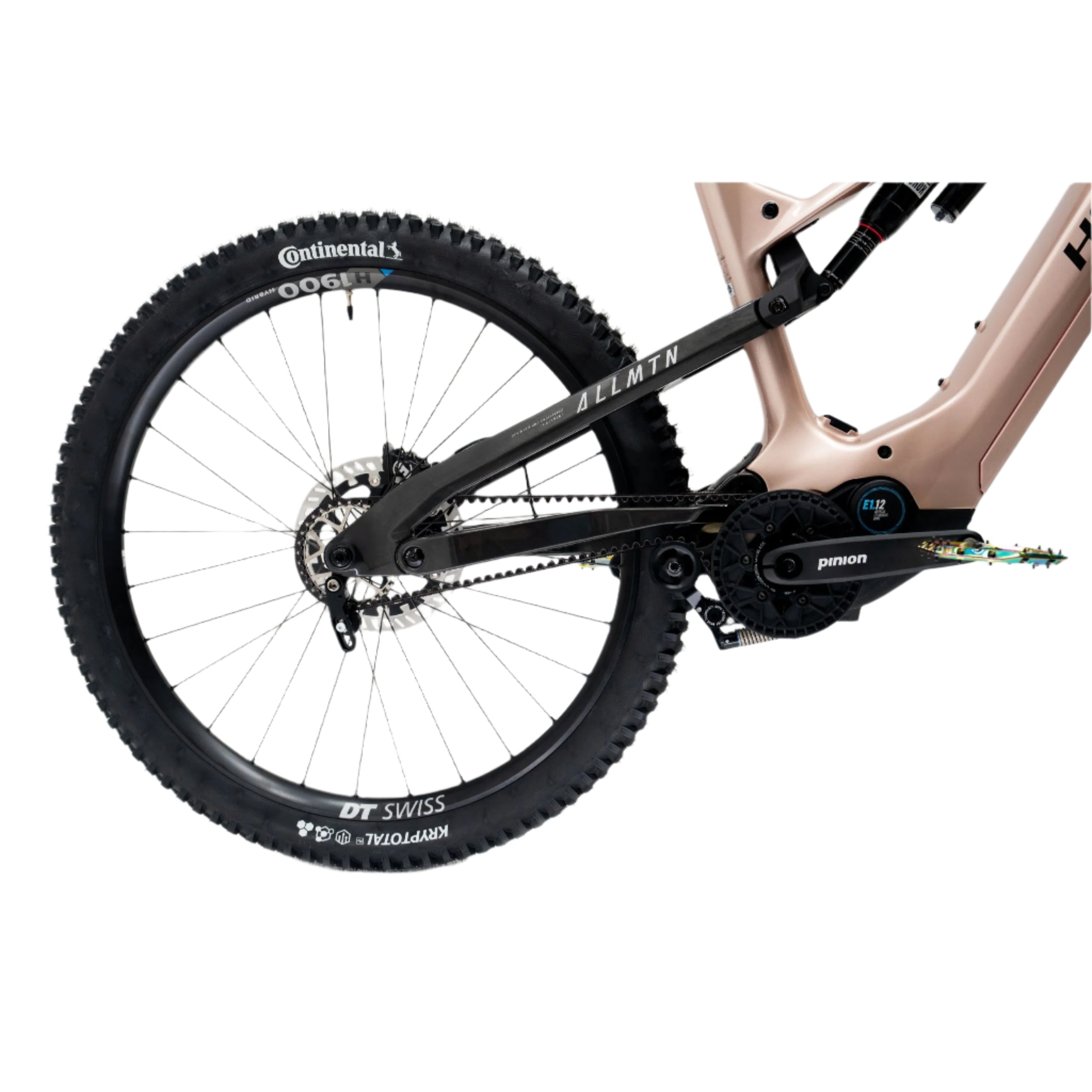

Drive

Cassette - Gates Carbon Drive CDX Sprocket 9-Spline

Chain - Gates Belt Carbon Drive Belt CDX, 120T

Crankset - Pinion Forge Crankset 165 mm + GATES CDX front
sprocket 165

Frame - High Carbon Uni

Frame material - Carbon

Frame shape - High

Gear - Pinion Gearbox

Max permissible weight (Rider, Cargo and Bike)  - 135 kg

Number of gears - 12

Shifter Right - Pinion Triggershift Smart Shift TE1

Suspension

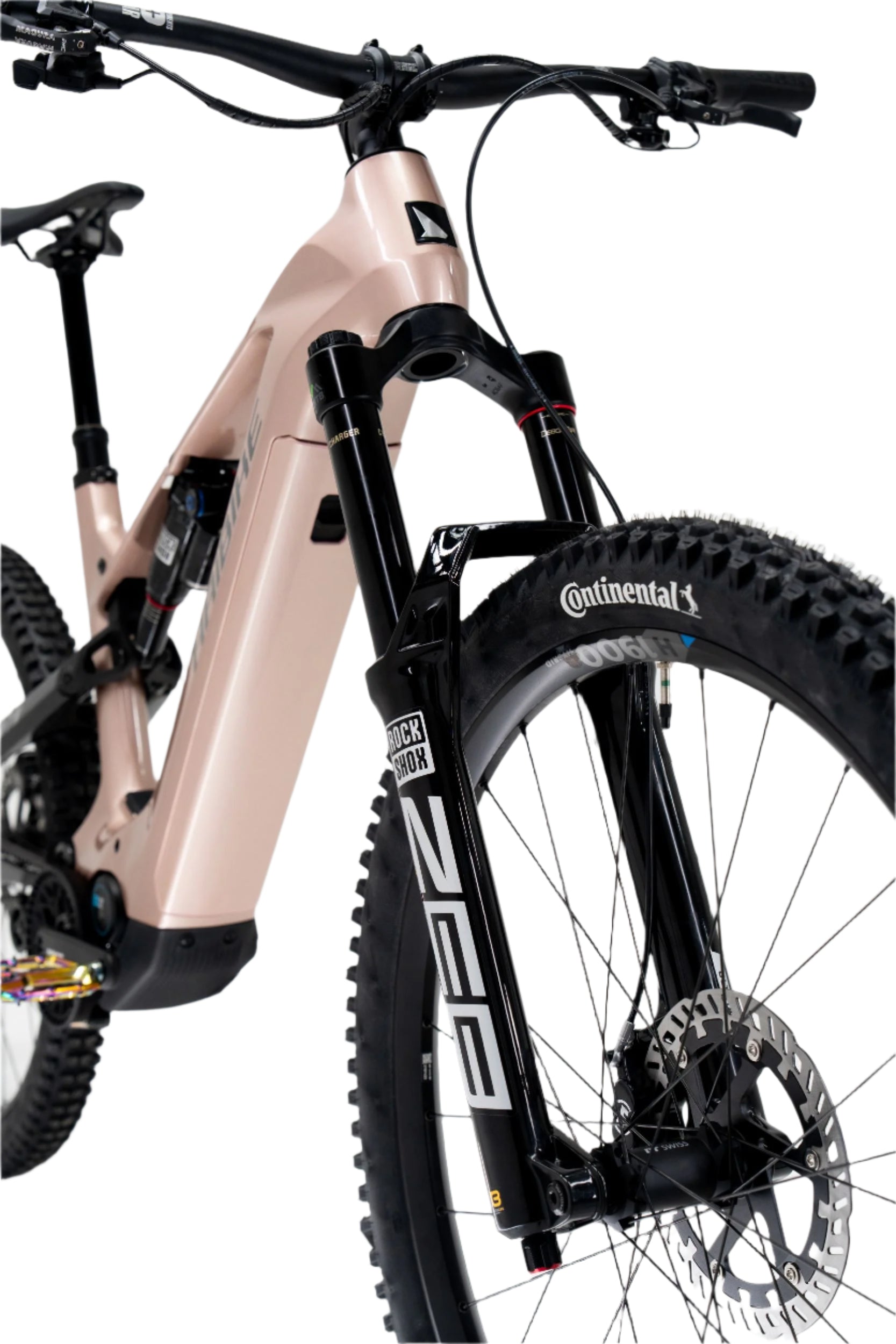

Front Fork - Rockshox ZEB Ultimate Charger 3.1 RC2 160 mm

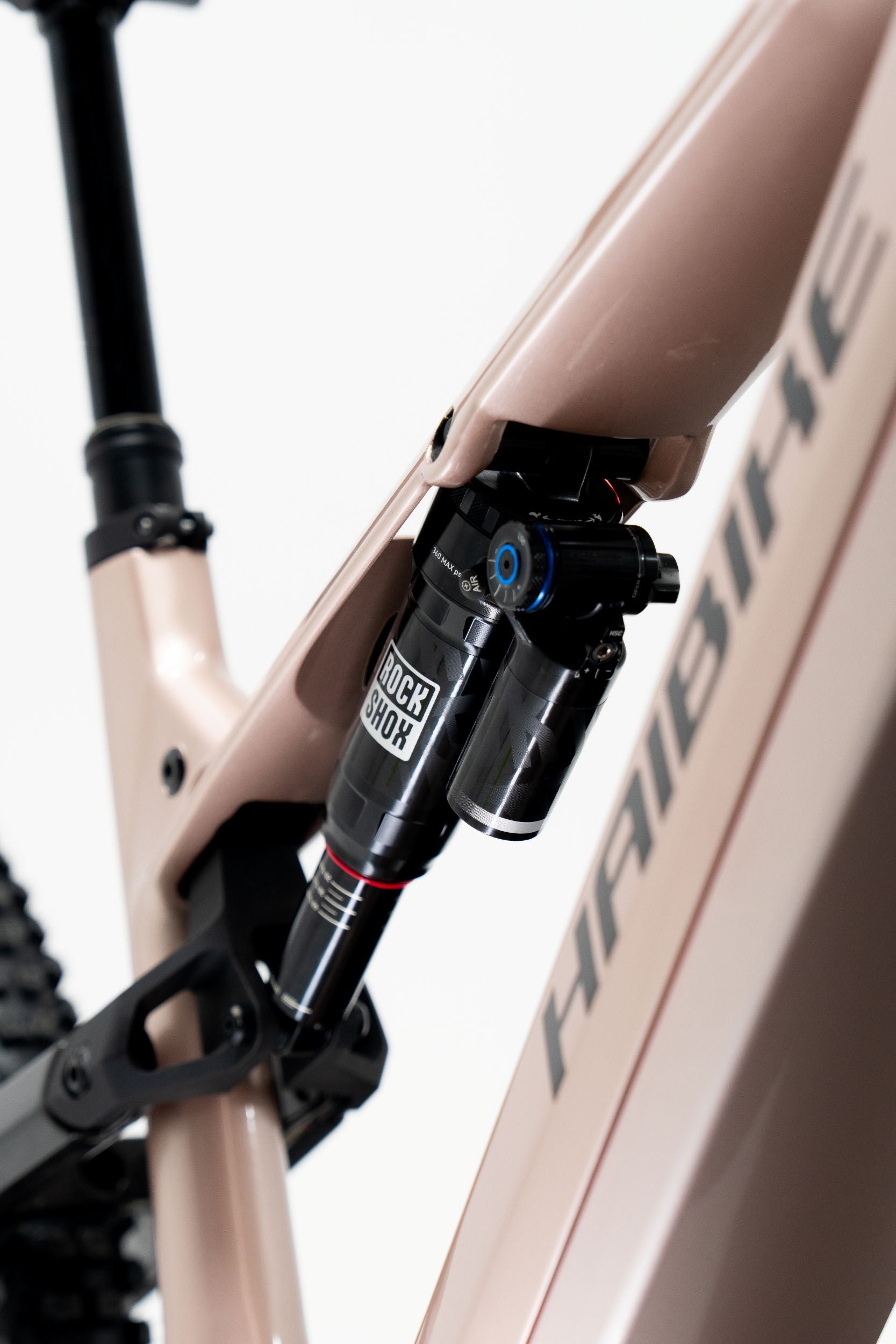

Shock - Rockshox
Super Deluxe Ultimate RC2T 230x60mm

Travel - 160 mm

Components

Brake light - No

Brake Rear - Magura Hydraulic Disc brake MT5, 4 pistons 203
mm

Front brake - Magura Hydraulic Disc brake MT5, 4 pistons 203
mm

Grip kind - MTB Grip Set VLG-1751D2

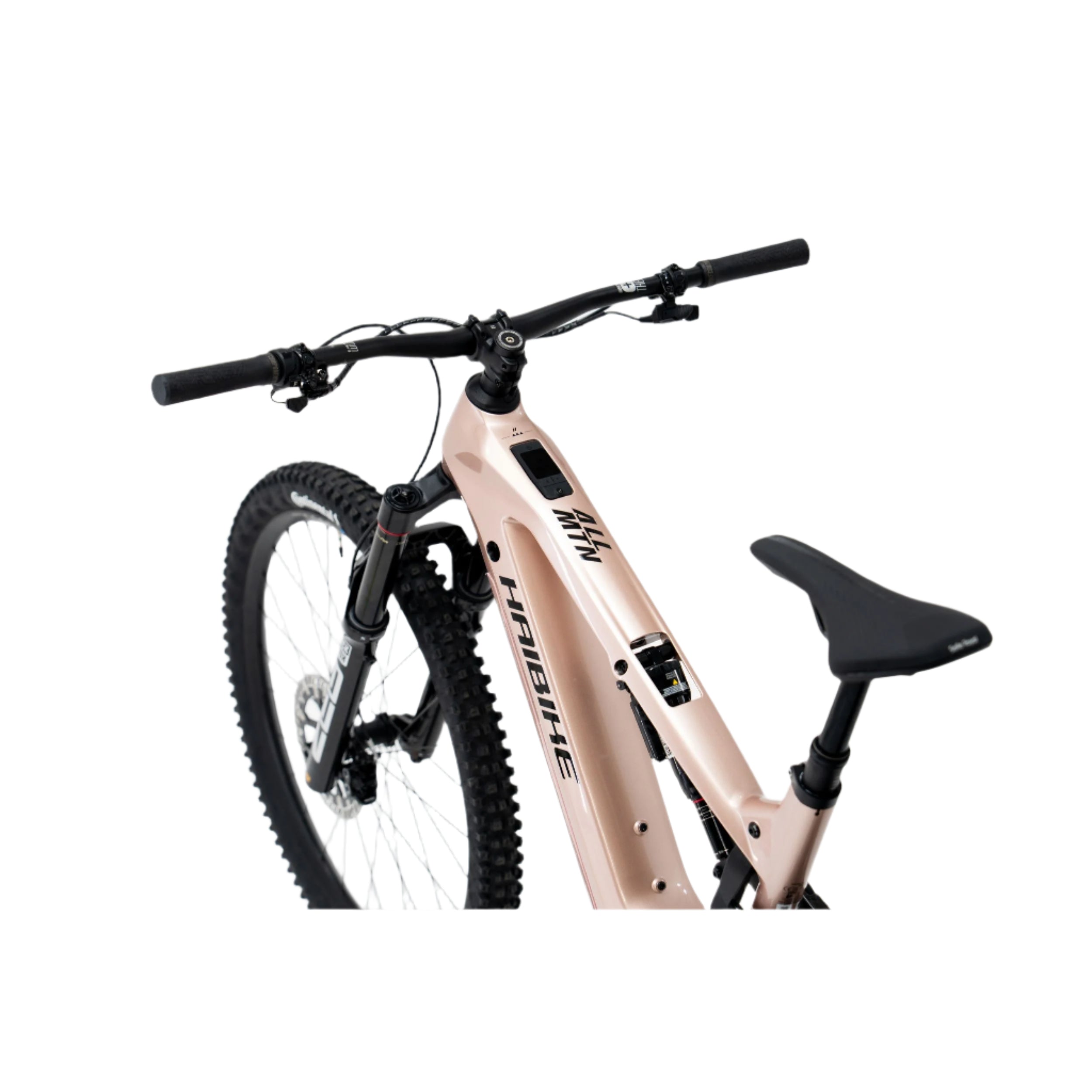

Handlebar - Haibike TheBar++ Dia. 31.8 mm

Pedal - XLC VPE-527 MTB Alloy Pedal w. Reflector

Saddle - Selle Royal Vivo 1216HRN

Seatpost - Limotec Dropperpost A4H Dropper, Dia. 34.9 mm,
Travel: 150 mm

Wheelset

Front wheel size - 29

Rear wheel size - 27.5

Tyre - Continental Kryptotal-Fr, Enduro Soft 60-622

Tyre size ETRTO - 60-622

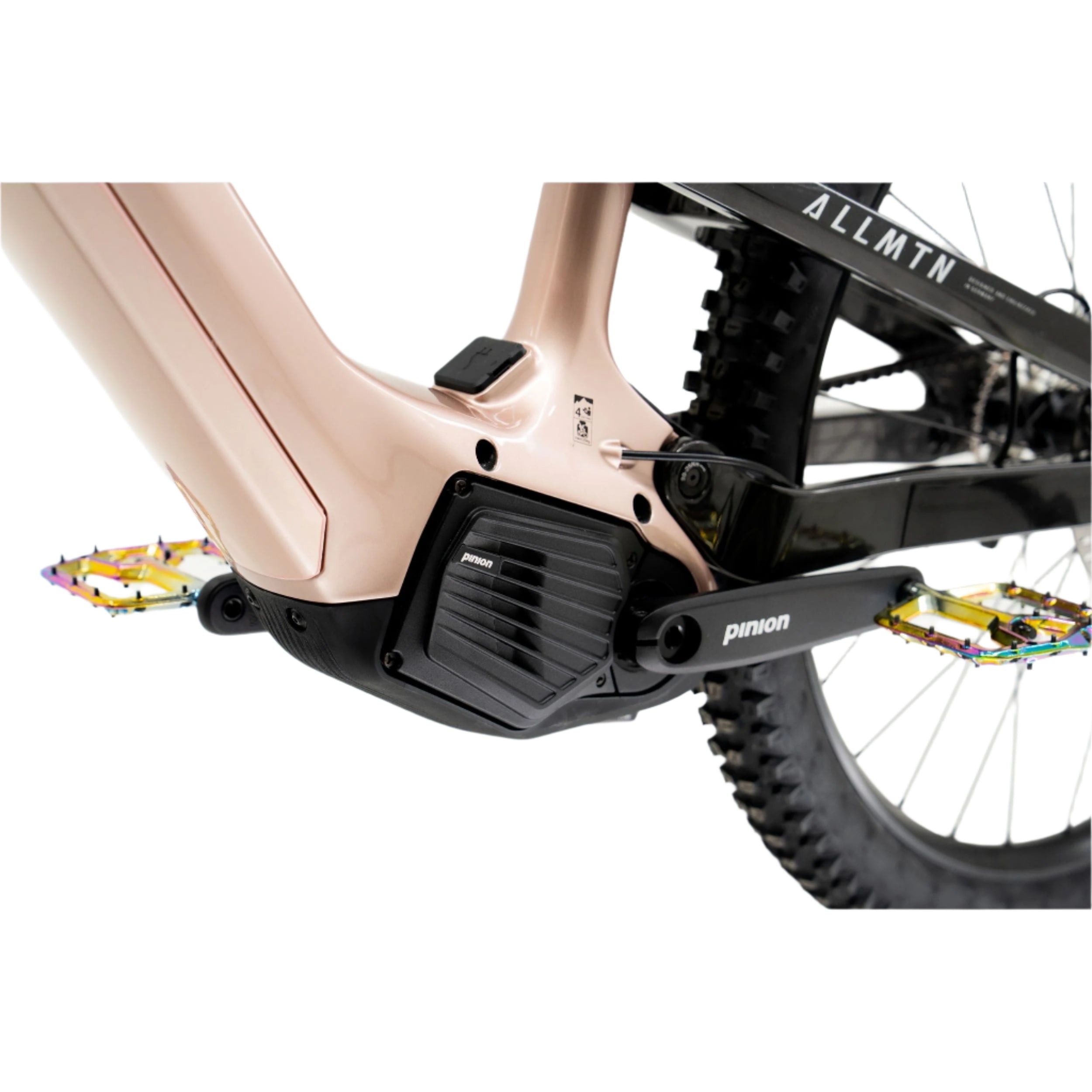

At the heart of the new AllMtn CF TRN/IQ is the Pinion MGU E1.12 – a compact unit combining a powerful electric motor with a precise 12-speed gearbox.

Thanks to electronic shifting technology, you shift seamlessly and reliably—even under load.

Derailleur and cassette? A thing of the past—meaning no broken parts, no constant readjustments, just pure ride focus.
