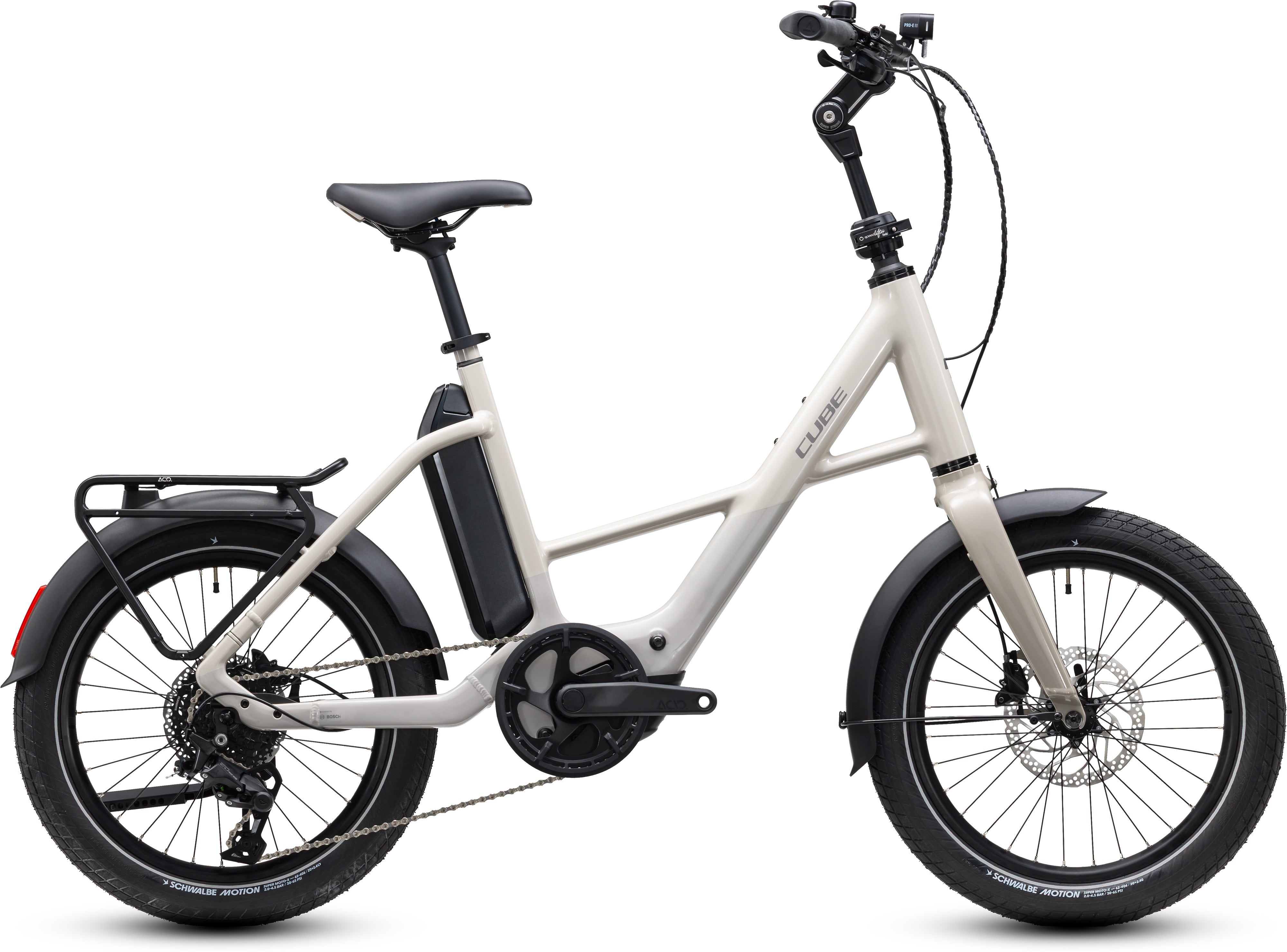

Getting from A to B can be fun and accessible for everyone – and here's the proof. The Compact Hybrid's rugged, easy step-through design fits riders of all sizes and is easy to store and transport. Bosch's powerful Performance drive unit – with Smart System and 540Wh battery – takes the sweat out of everyday riding, while Shimano's wide-ranging and reliable 9-speed Cues gears make light work of any route. Powerful hydraulic disc brakes ensure you can stop safely in all weathers. And the lighting system, mudguards, integrated rear luggage carrier, kickstand and HIC front carrier compatibility ensure that the Compact Hybrid will slot easily into your life. For work, for play, for any reason.
Frame
Sometimes the simplest solutions are the best. The Compact Hybrid's cross-braced down tube is elegant, stiff and strong, but it also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle. There's a long 1.5in head tube for accurate, safe steering and an integrated rear carrier for all your essentials. Up front, the HIC interface allows the addition of a compatible ACID front carrier and accessories. The powerful Bosch Performance drive unit is powered by a 540Wh battery, which is tucked out of the way of both luggage and rider. Bosch's Smart System also gives you complete control, accessed via the eBike Flow app. Quick and easy saddle and handlebar adjustments allow one bike to fit the widest possible range of riders. It's a bike for commuting, for popping to the shops, for camping, for exploring. For you.
Specification
| Frame | Aluminium Superlite, Gravity Casting Technology, Comfort Ride Geometry, Seatstay-Integrated Carrier |
|---|---|
| Fork | Aluminium Rigid Fork, 20" |
| Headset | ACROS Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | BySchulz Speedlifter Twist Pro 2 SDS T15 |
| Handlebar | CUBE Comfort Trail Bar, 680mm |
| Grips | ACID Travel Comfort |
| Rear Derailleur | Shimano Cues RD-U4010, 10-Speed |
| Shifters | Shimano Cues SL-U4010- Rapidfire-Plus |
| Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
| Crankset | ACID Trekking Hybrid, 44T |
| Cassette | Shimano CS-LG300, 11-36T |
| Chain | KMC eGlide |
| Rims | ACID EX30, 32H, Disc, Tubeless Ready |
| Hub Front | Shimano HB-QC300, QR, Centerlock |
| Hub Rear | Shimano FH-QC300-HM, QR, Centerlock |
| Tires | Schwalbe Motion Super Moto-X, Double Defense, 62-406 |
| Pedals | ACID PP Trekking |
| Saddle | ACID Sequence 160 Pro Bubble Foam |
| Seatpost | Cube Performance Post, 27.2mm |
| Headlight | ACID Front Light PRO-E 80 X-Connect, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | ACID FM Pure XS |
| Mudguard | ACID 62 IC-Mount |
| Bell | Easy Bell |
| Carrier | ACID 20" Seatstay-Integrated Carrier, RILink, CILink |
| Motor | Bosch Drive Unit Performance Line 75Nm (BDU34) |
| Battery | Bosch PowerPack 540 |
| Charger | Bosch 2A |
| Remote | Bosch Purion 200 with Integrated Display |
| Weight | 23,2 kg |
| System Weight max. | 150 kg |
| Driver max. Weight | 100 kg |
