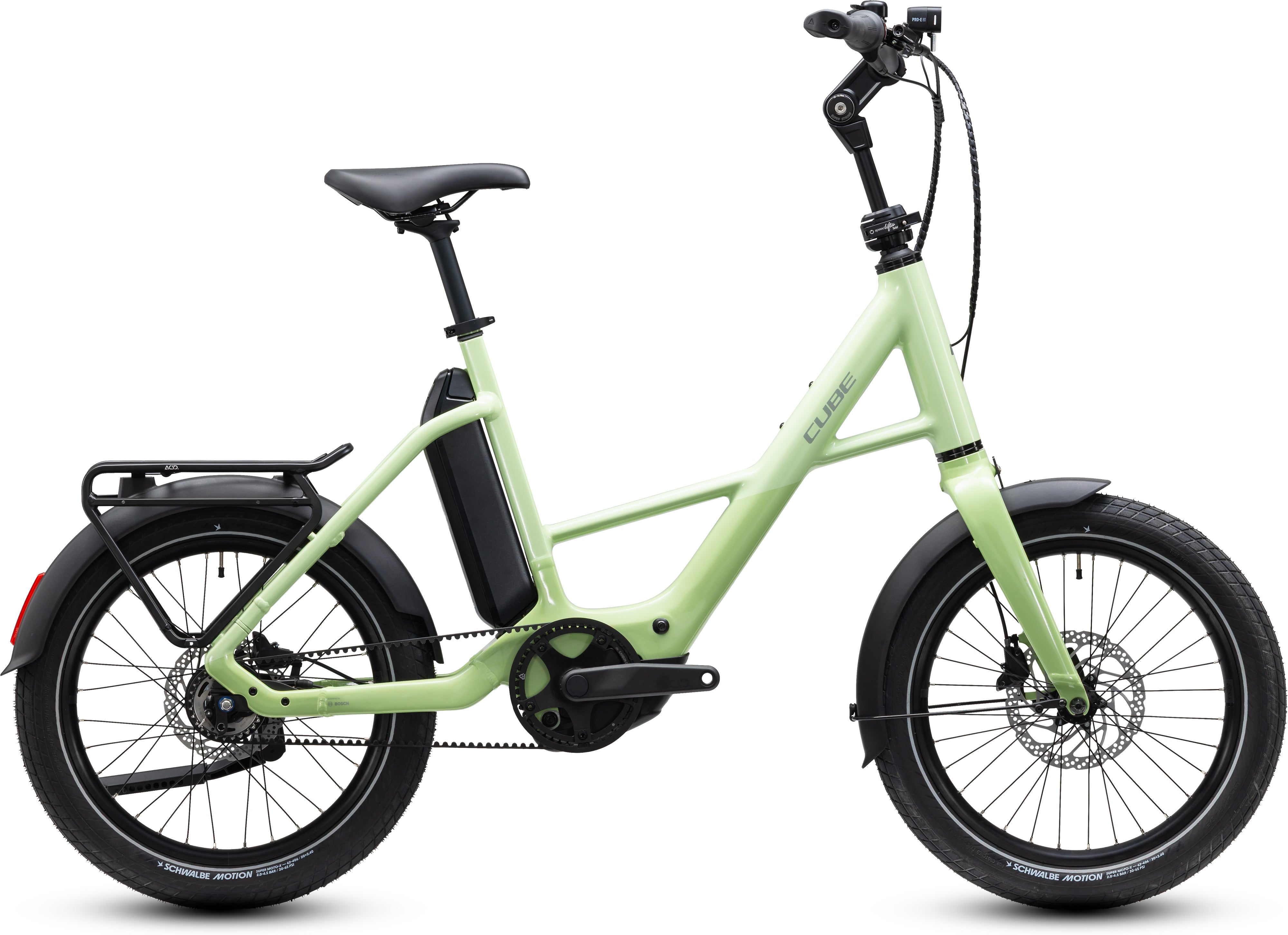

Wherever two wheels can make your life easier, our Compact Hybrid Deluxe will slot right in. The clever, compact design – the clue is in the name – and Bosch Performance drive unit with Smart System, 540Wh battery and easy-to-use Shimano 5-speed hub gears make traffic-dodging a breeze. There's an integrated rear carrier for your essentials, while the HIC interface at the front allows the easy addition of a compatible ACID front carrier for even more luggage carrying options. We also added a kickstand for easy parking, mudguards to help keep you dry and a lighting system so you can see and be seen. Powerful Shimano hydraulic disc brakes ensure you can stop safely even when it's wet, and the easily adjustable handlebar makes light work of getting comfortable. You'll wonder how you managed without it.
Frame
Sometimes the simplest solutions are the best. The Compact Hybrid's cross-braced down tube is elegant, stiff and strong, but it also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle. There's a long 1.5in head tube for accurate, safe steering and an integrated rear carrier for all your essentials. Up front, the HIC interface allows the addition of a compatible ACID front carrier and accessories. The powerful Bosch Performance drive unit is powered by a 540Wh battery, which is tucked out of the way of both luggage and rider. Bosch's Smart System also gives you complete control, accessed via the eBike Flow app. Quick and easy saddle and handlebar adjustments allow one bike to fit the widest possible range of riders. It's a bike for commuting, for popping to the shops, for camping, for exploring. For you.
Specification
| Frame | Aluminium Superlite, Gravity Casting Technology, Comfort Ride Geometry, Seatstay-Integrated Carrier, Slider Dropout |
|---|---|
| Fork | Aluminium Rigid Fork, 20" |
| Headset | ACROS Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | BySchulz Speedlifter Twist Pro 2 SDS T15 |
| Handlebar | CUBE Comfort Trail Bar, 680mm |
| Grips | ACID Travel Comfort Gripshift |
| Shifters | Shimano Nexus SL-C7000-5, Revoshift |
| Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
| Crankset | ACID Trekking Hybrid, 46T |
| Hub Sprocket | Gates CDX Shimano Nexus 28T |
| Belt | Gates CDC |
| Rims | ACID EX30, 32H, Disc, Tubeless Ready |
| Hub Front | Shimano HB-QC300, QR, Centerlock |
| Hub Rear | Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut |
| Tires | Schwalbe Motion Super Moto-X, Double Defense, 62-406 |
| Pedals | ACID PP Trekking |
| Saddle | ACID Sequence 160 Pro Bubble Foam |
| Seatpost | Cube Performance Post, 27.2mm |
| Headlight | ACID Front Light PRO-E 80 X-Connect, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | ACID FM Pure XS |
| Mudguard | ACID 62 IC-Mount |
| Bell | Easy Bell |
| Carrier | ACID 20" Seatstay-Integrated Carrier, RILink, CILink |
| Motor | Bosch Drive Unit Performance Line 75Nm (BDU34) |
| Battery | Bosch PowerPack 540 |
| Charger | Bosch 2A |
| Remote | Bosch Purion 200 with Integrated Display |
| Weight | 23,5 kg |
| System Weight max. | 150 kg |
| Driver max. Weight | 100 kg |
