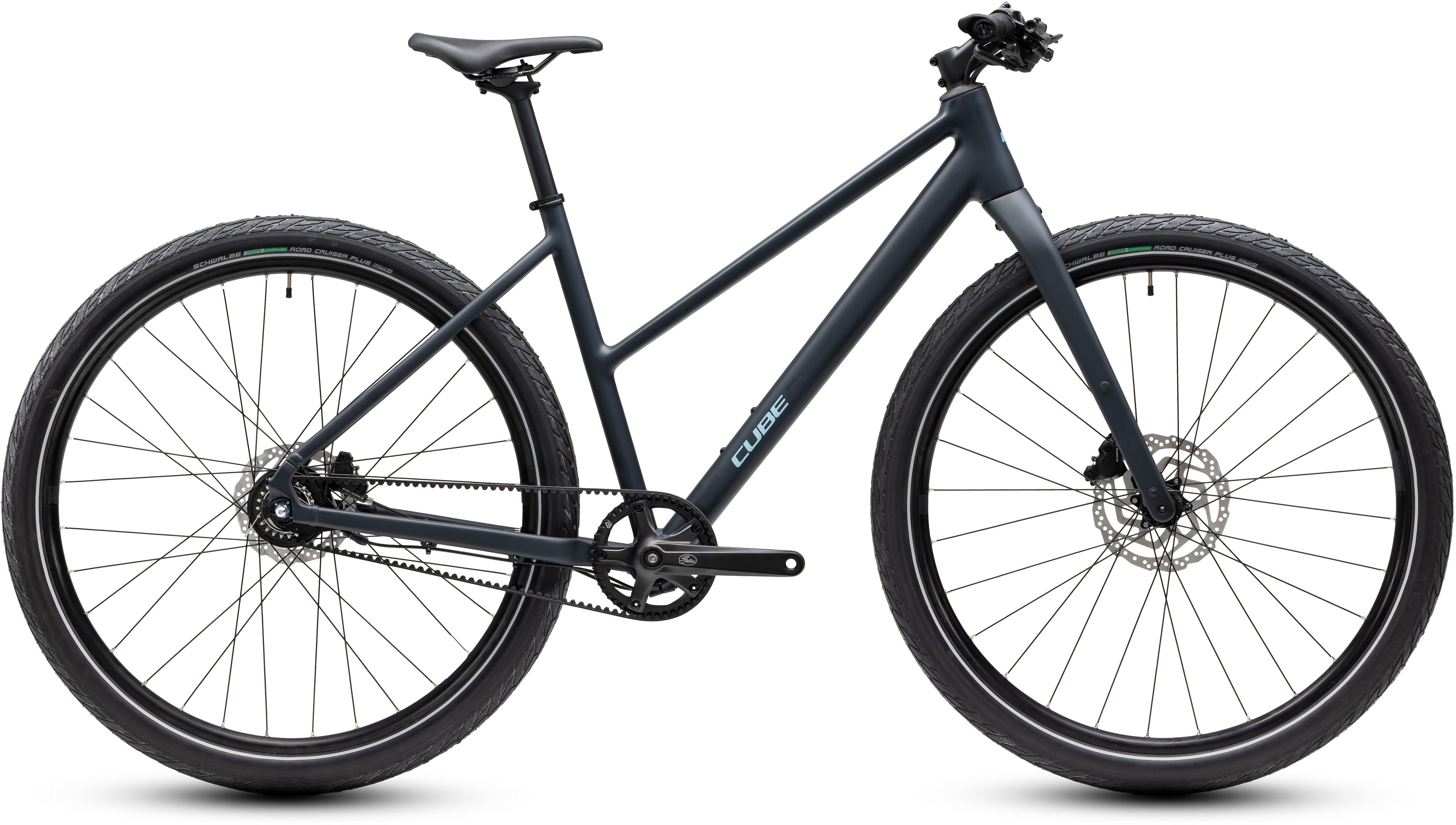

When life's coming at you fast, a bike that helps you cut through the traffic can make all the difference. With its elegant aesthetic and carefully selected components, the Editor Pro helps make sense of the city. Shimano's rugged, dependable Alfine 8-speed hub gears and a super-durable Gates belt offer clean and practical low-maintenance cycling. Powerful Shimano hydraulic disc brakes ensure you can stop safely, whatever the weather. And fast-rolling Schwalbe 55mm Road Cruiser tyres are grippy and comfortable. Reclaim the streets...
Frame
The Editor's Trapeze frame has familiar looks, but with a sense of style that urbanites will appreciate. Designed around the low maintenance of a clean, quiet belt drive, the lightweight double-butted aluminium frame features carefully crafted tube joints for an almost seamless, organic appearance. Full Internal Cable Routing complements the pared-back aesthetic, and the light and svelte full carbon fork is the perfect accompaniment. Mudguard and kickstand mounting points are included, and the frame is compatible with our neat and strong Semi-Integrated Carrier 2.1. It's everything you need to thrive in the city.
Specification
| Frame | Aluminium Superlite, Urban 29, Taper, Double Butted |
|---|---|
| Fork | CUBE TK Disc, C:62® Full Carbon, Taper, Flat Mount, 12x100mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem, 31.8mm |
| Handlebar | CUBE Flat Race Bar, 660mm |
| Grips | ACID Travel |
| Shifters | Shimano Alfine SL-S7000 |
| Brakes | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180) |
| Bottom Bracket | Thun Zumba GBL 450 |
| Crankset | Gates S150 CDN, 46T, 45.5mm Beltline |
| Hub Sprocket | Gates Rear Sprocket CDC, 45.5mm Beltline, 22T |
| Belt | Gates CDN, 120T |
| Wheelset | ACID EX25, 28H, Disc, Tubeless Ready Shimano Alfine SG-S7001-8, 8-Speed/ACID Aluminium Disc Centerlock, 28h |
| Tires | Schwalbe Motion Road Cruiser Plus, ActiveL, 55x622 |
| Pedals | ACID PP Trekking |
| Saddle | ACID Nuance Lite |
| Seatpost | CUBE Performance Post, 27.2mm |
| Bell | Ring Bell |
| Weight | 13,4 kg |
| System Weight max. | 140 kg |
| Driver max. Weight | 100 kg |
