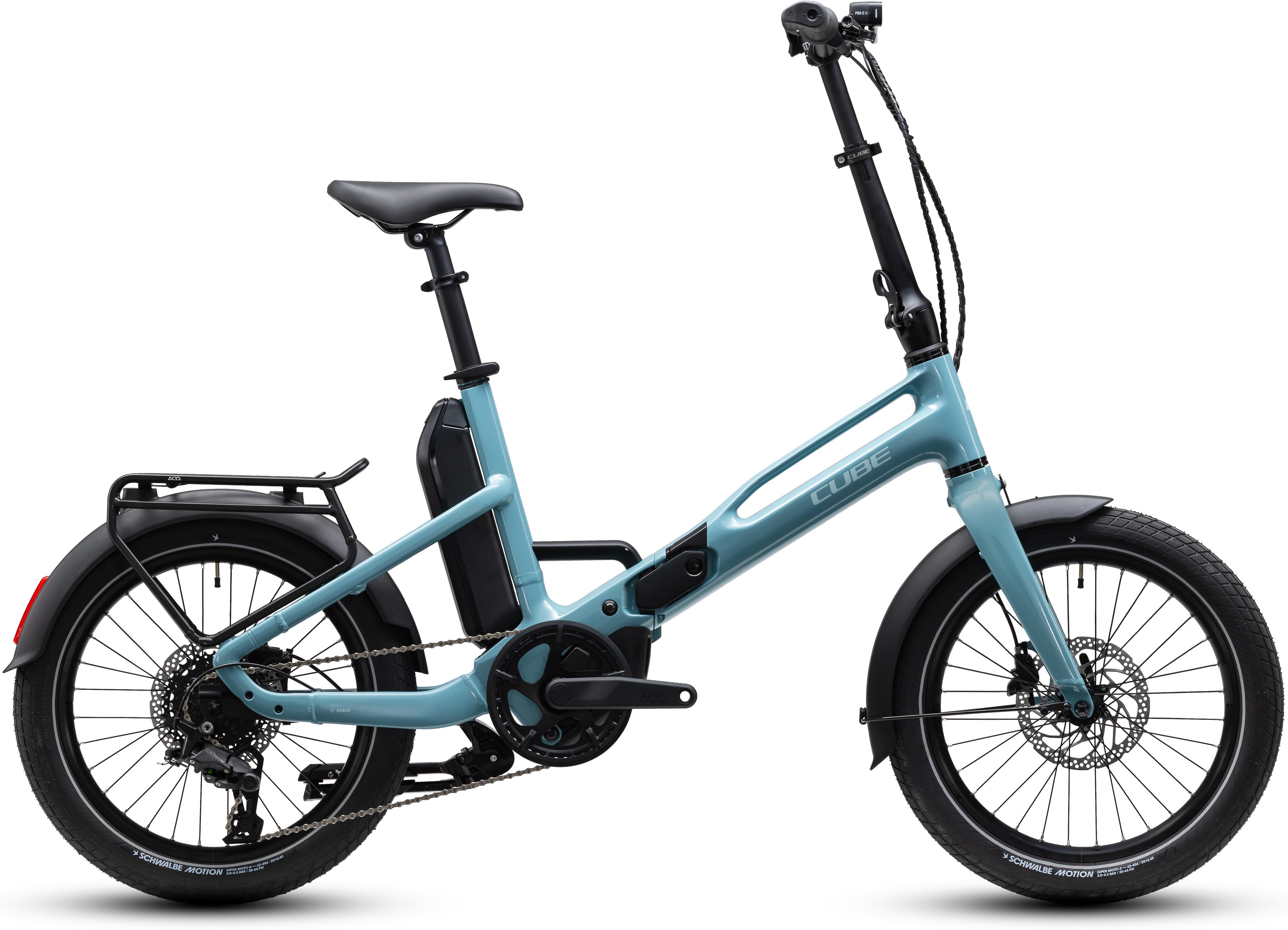

Built to slot into your life as easily as it folds for storage or transport, the Fold Hybrid is the two-wheeled companion you'll wish you'd always had. With the power of Bosch's Performance motor, the wide range of Shimano's easy-to-use Cues 9-speed gears and a 540Wh battery as standard, it makes light work of any trip and delivers you to your destination fresh and in good shape to continue with the rest of your day. We even fitted powerful Shimano hydraulic disc brakes, for assured stopping no matter the weather. The integrated rear carrier – and optional front carrier, fastening via the simple HIC interface – make it easy to take everything you need with you. And, with mudguards, a sturdy kickstand and lights, it has everything you need.
Frame
Our foldable Bosch e-bike already set the benchmark for flexibility, mobility and functionality. But now it also features an improved folding mechanism, a more ergonomic carry handle, HIC interface for easy attachment of front-mounted carriers and accessories, and a neatly integrated rear carrier. It's easy to store or transport, so it can go wherever you need it to go. The 540Wh battery sits neatly behind the seat tube, and Bosch's Smart System gives you the control you need via the eBike Flow app. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height, and we included mudguards, a really stable kickstand and lights too. It's ready for anything.
Specification
| Frame | Aluminium Superlite, Comfort Ride Geometry, Seatstay-Integrated Carrier, Integrated Folding Technology, Carrying Handlebar |
|---|---|
| Fork | Aluminium Rigid Fork, 20" |
| Headset | ACROS Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | Cube Folding Stem, Adjustable Length, 25,4mm Clamp |
| Handlebar | CUBE Comfort Trail Bar, 25.4mm |
| Grips | ACID Travel Comfort |
| Rear Derailleur | Shimano Cues RD-U4010, 10-Speed |
| Shifters | Shimano Cues SL-U4010- Rapidfire-Plus |
| Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Crankset | ACID Trekking Hybrid, 44T |
| Cassette | Shimano CS-LG300, 11-36T |
| Chain | KMC eGlide |
| Rims | ACID EX30, 32H, Disc, Tubeless Ready |
| Hub Front | Shimano HB-QC300, QR, Centerlock |
| Hub Rear | Shimano FH-QC300-HM, QR, Centerlock |
| Tires | Schwalbe Motion Super Moto-X, Double Defense, 62-406 |
| Pedals | Folding Pedal, Aluminium |
| Saddle | ACID Sequence 160 Pro Bubble Foam |
| Seatpost | Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost |
| Headlight | ACID Front Light PRO-E 80 X-Connect, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | Two Leg Kickstand |
| Mudguard | ACID 62 IC-Mount |
| Bell | Easy Bell |
| Carrier | ACID 20" Seatstay-Integrated Carrier, RILink, CILink |
| Motor | Bosch Drive Unit Performance Line 75Nm (BDU34) |
| Battery | Bosch PowerPack 540 |
| Charger | Bosch 2A |
| Remote | Bosch Purion 200 with Integrated Display |
| Weight | 25,3 kg |
| System Weight max. | 150 kg |
| Driver max. Weight | 100 kg |
