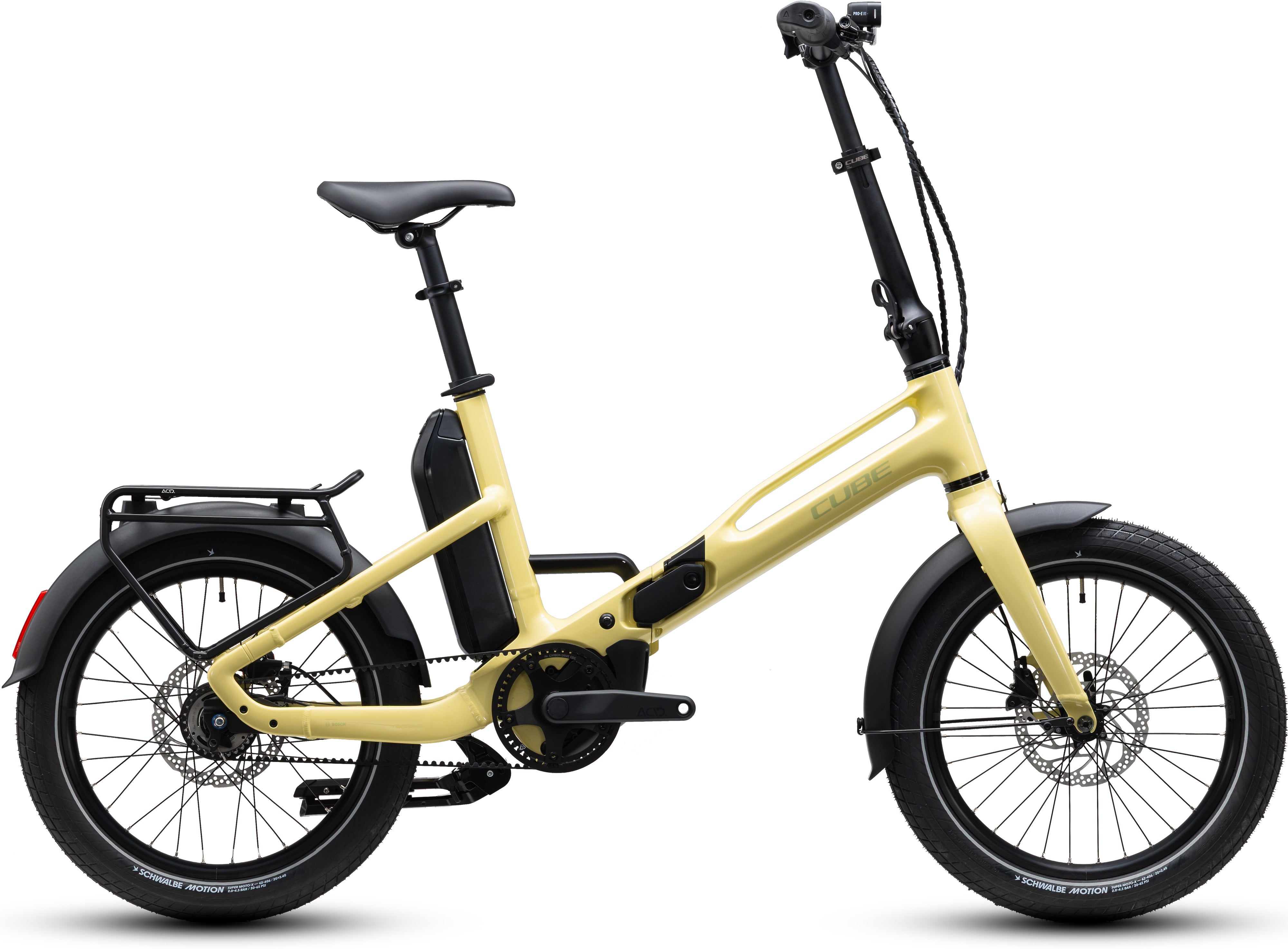

A great bike should fit easily into your busy life – and that's exactly what we had in mind when we developed the Fold Hybrid Deluxe. Combining the power of Bosch's Smart System Performance motor and a 540Wh battery with the convenience of a sophisticated, easy-to-use folding design, it makes light work of any journey and stows into a compact form for storage or transport. Powerful hydraulic disc brakes help keep you safe in all weathers, while Shimano's simple, tough and almost maintenance-free 5-speed Nexus hub gears have the range you need. And the integrated rear carrier – and optional front carrier with simple HIC interface – make it easy to take everything you need with you. With mudguards, a sturdy kickstand and a rugged carrying handle, it has everything you need.
Frame
Our foldable Bosch e-bike already set the benchmark for flexibility, mobility and functionality. But now it also features an improved folding mechanism, a more ergonomic carry handle, HIC interface for easy attachment of front-mounted carriers and accessories, and a neatly integrated rear carrier. It's easy to store or transport, so it can go wherever you need it to go. The 540Wh battery sits neatly behind the seat tube, and Bosch's Smart System gives you the control you need via the eBike Flow app. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height, and we included mudguards, a really stable kickstand and lights too. It's ready for anything.
Specification
| Frame | Aluminium Superlite, Comfort Ride Geometry, Seatstay-Integrated Carrier, Integrated Folding Technology, Carrying Handlebar, Slider Dropout |
|---|---|
| Fork | Aluminium Rigid Fork, 20" |
| Headset | ACROS Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | Cube Folding Stem, Adjustable Length, 25,4mm Clamp |
| Handlebar | CUBE Comfort Trail Bar, 25.4mm |
| Grips | ACID Travel Comfort Gripshift |
| Shifters | Shimano Nexus SL-C7000-5, Revoshift |
| Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Crankset | ACID Trekking Hybrid, 46T |
| Hub Sprocket | Gates CDX Shimano Nexus 28T |
| Belt | Gates CDC |
| Rims | ACID EX30, 32H, Disc, Tubeless Ready |
| Hub Front | Shimano HB-QC300, QR, Centerlock |
| Hub Rear | Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut |
| Tires | Schwalbe Motion Super Moto-X, Double Defense, 62-406 |
| Pedals | Folding Pedal, Aluminium |
| Saddle | ACID Sequence 160 Pro Bubble Foam |
| Seatpost | Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost |
| Headlight | ACID Front Light PRO-E 80 X-Connect, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | Two Leg Kickstand |
| Mudguard | ACID 62 IC-Mount |
| Bell | Easy Bell |
| Carrier | ACID 20" Seatstay-Integrated Carrier, RILink, CILink |
| Motor | Bosch Drive Unit Performance Line 75Nm (BDU34) |
| Battery | Bosch PowerPack 540 |
| Charger | Bosch 2A |
| Remote | Bosch Purion 200 with Integrated Display |
| Weight | 25,5 kg |
| System Weight max. | 150 kg |
| Driver max. Weight | 100 kg |
