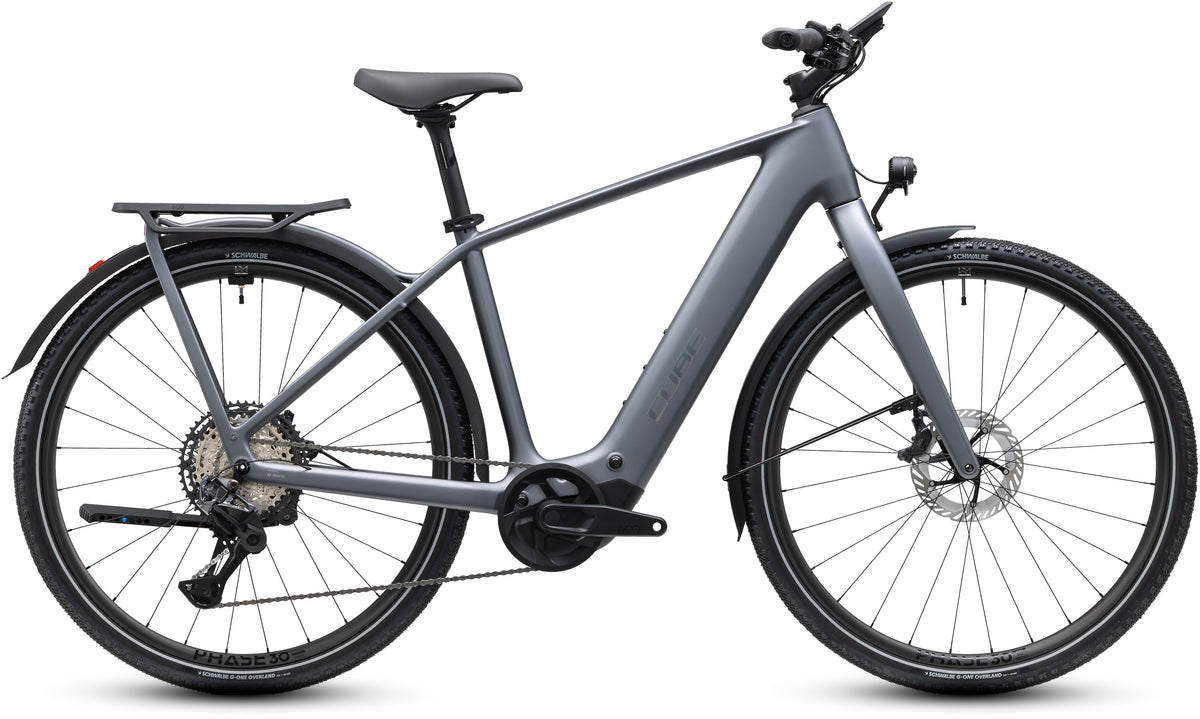

When only the best will do, it's time to break out Shimano's XT components. Renowned for their ease of use, precision and dependability, the wide-ranging 1x12 Di2 electronic gears and powerful hydraulic disc brakes are the obvious choice for the Kathmandu Hybrid C:62 SLT. Bosch's SX motor with 400Wh battery, compact LED remote and Kiox 500 display delivers up to 60Nm of pedal assistance to help you on your way. Combined with the C:62® carbon frame and fork plus carbon Newmen Phase 30 wheels, the result is a notably svelte grand tourer – and that means one that's easier and more fun to ride. It's just as practical as ever, though, with our super-sturdy Integrated Carrier 3.0 and a full complement of accessories. Across town or across continents, it's got your back.
Frame
A lighter touring bike means you can take more with you, but low weight is no good without strength. That's why, for the CUBE Kathmandu Hybrid C:62, we used our tried-and-tested C:62® carbon to build a frame structure that combines the load-bearing capacity you need with the comfort and ride handling that you'd expect from CUBE. With a UDH derailleur hanger, Advanced Internal Cable Routing and a Boost rear axle, it's both elegant and easy to live with. The Integrated Carrier 3.0 blends neatly into the frame structure and offers a sturdy platform for carrying whatever you need to take with you. Add the 400Wh battery, and it's the complete package for lightweight hybrid touring.
Specification
| Frame | C:62® Advanced Twin Mold, Efficient Comfort Geometry, Boost148, Fixed Integrated Battery, Flat Mount Disc, Integrated Carrier 3.0, Advanced Internal Cable Routing, UDH™ |
|---|---|
| Fork | CUBE C:62® Technology, 1 1/2" - 1 1/2" Tapered, Internal Light Cable Option, 15x110mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance Stem SLX, 31.8mm |
| Handlebar | CUBE Comfort Trail Bar HD, 700mm |
| Grips | ACID Travel Comfort |
| Rear Derailleur | Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
| Shifters | Shimano XT Di2 SW-M8250-IR, Direct Attach |
| Brakes | Shimano XT BR-M8220, Hydr. Disc Brake (180/180) (180/180) |
| Crankset | ACID MTB Hybrid Pro, 38T |
| Cassette | Shimano XT CS-M8200, 10-51T |
| Chain | Shimano XT CN-M8100 |
| Wheelset | Newmen Phase 30 light/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Tires | Schwalbe G-ONE Overland, PerfL, 50-622 |
| Pedals | ACID PP Trekking |
| Saddle | ACID Sequence 180 Pro Plus Ultra Gel |
| Seatpost | Newmen Advanced, Carbon, 31.6mm |
| Headlight | ACID Front Light PRO-E 200 X-Connect, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | ACID FM Pure Silent |
| Mudguard | ACID 60 Integrated Carrier 3.0 |
| Bell | Knog Oi |
| Carrier | ACID Integrated Carrier 3.0, RILink HPP |
| Motor | Bosch Drive Unit Performance SX 60Nm (BDU31), Smart System |
| Battery | Bosch CompactTube 400 |
| Charger | Bosch 4A |
| Remote | Bosch LED Controller |
| Display | Bosch Kiox 500 |
| Weight | 16,2 kg |
| System Weight max. | 135 kg |
| Driver max. Weight | 110 kg |
