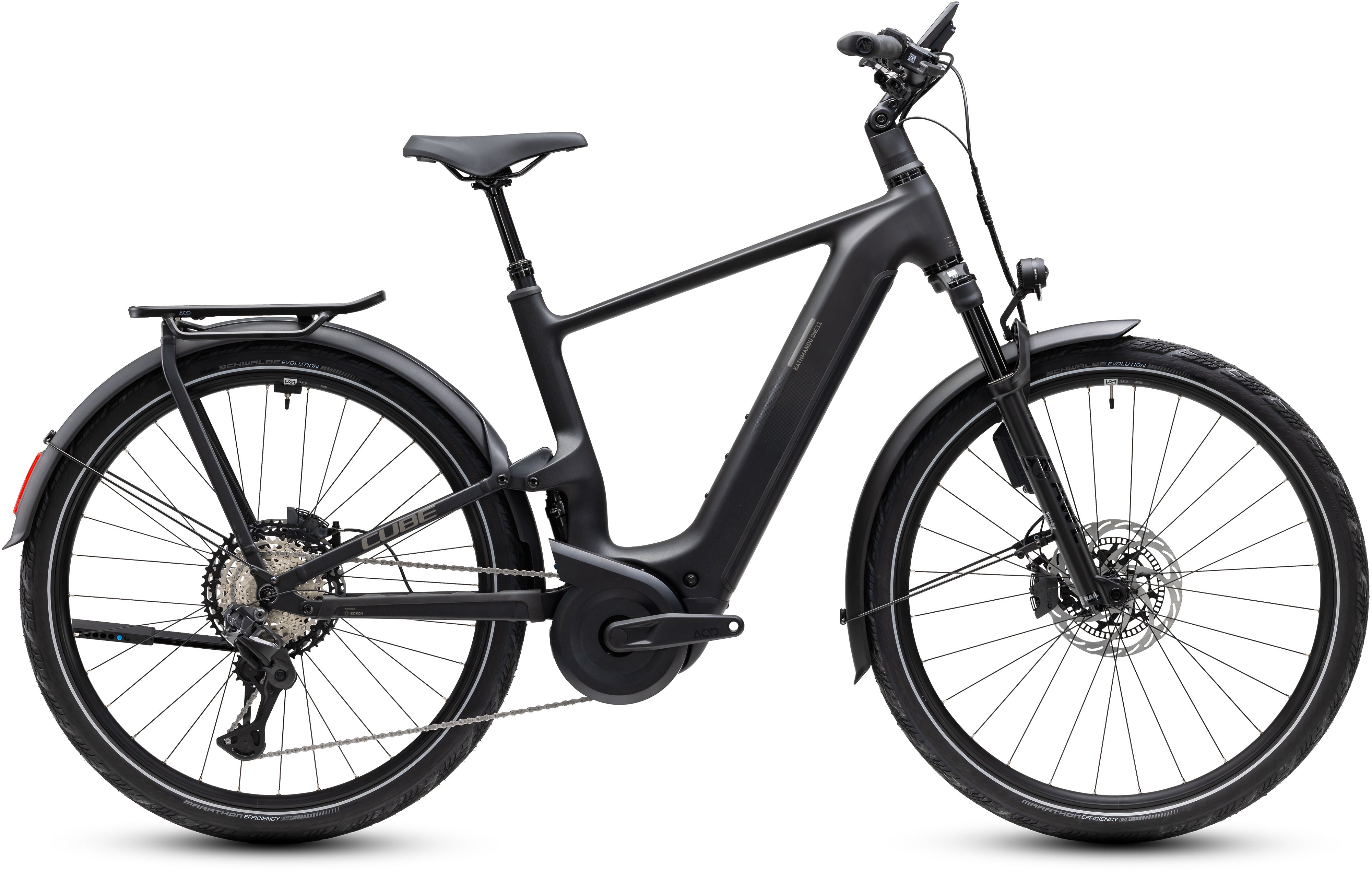

The CUBE Kathmandu Hybrid ONE11 HPC SLT is all about zero compromise, for the ultimate in touring comfort and practicality. The sophisticated full-suspension frame – with Fox 34 Float AWL fork and Float Performance shock – is just the start. There's an adjustable stem and a dropper seatpost. Shimano's peerless XT Di2 1x12 electronic gears deliver up to 120Nm of torque from the Bosch CX drive and 800Wh battery to the road. Schwalbe's smooth, comfortable 55mm Marathon Efficiency Evo tyres roll on a Newmen Performance 30 wheelset, while the powerful Magura Gustav Pro hydraulic disc brakeset is equipped with ABS, just like your car. Fully decked out with Integrated Carrier 3.0, mudguards and lights, we even added a Bosch ConnectModule for GPS tracking. It's ready to take on the world.
Frame
Combining everything we know about full suspension and rugged touring bikes in a single frame, the Kathmandu Hybrid ONE11 HPC from CUBE is a different kind of Bosch-powered adventure bike. There's 100mm of rear-wheel travel from an incredibly neatly sited trunnion-mount shock, while the Integrated Carrier 3.0 is incorporated into the aluminium rear triangle. Up front, the High Performance Carbon main frame houses a powerful Bosch CX drive and 800Wh PowerTube battery. Internal Cable Routing complements the frame's clean looks, the derailleur hanger is UDH-compatible, and a chain guard is fitted as standard. It's all there so that you can ride further... in comfort.
Specification
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Efficient Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Integrated Carrier 3.0, Integrated Seatclamp |
|---|---|
| Fork | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 100mm |
| Frame shock | Fox Float Performance 165x45mm, Trunnion Mount |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar | CUBE Comfort Trail Bar HD, 700mm |
| Grips | ACID Travel Comfort |
| Rear Derailleur | Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
| Shifters | Shimano XT Di2 SW-M8250-IR, Direct Attach |
| Brakes | Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Crankset | ACID MTB Hybrid Pro, 40T |
| Cassette | Shimano XT CS-M8100, 10-51T |
| Chain | Shimano CN-M6100 |
| Wheelset | Newmen Performance 30, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Tires | Schwalbe Marathon Efficiency, Super Race, V-Guard, 55-622 |
| Pedals | ACID PP Trekking |
| Saddle | ACID Shen Pro |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Headlight | ACID Front Light PRO-E 200 X-Connect, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | ACID FM Pure Kickstand |
| Mudguard | ACID 65 |
| Bell | Knog Oi |
| Carrier | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Motor | Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 4A |
| Remote | Bosch LED Remote |
| Display | Bosch Kiox 500 |
| Weight | 27,1 kg |
| System Weight max. | 160 kg |
| Driver max. Weight | 125 kg |
