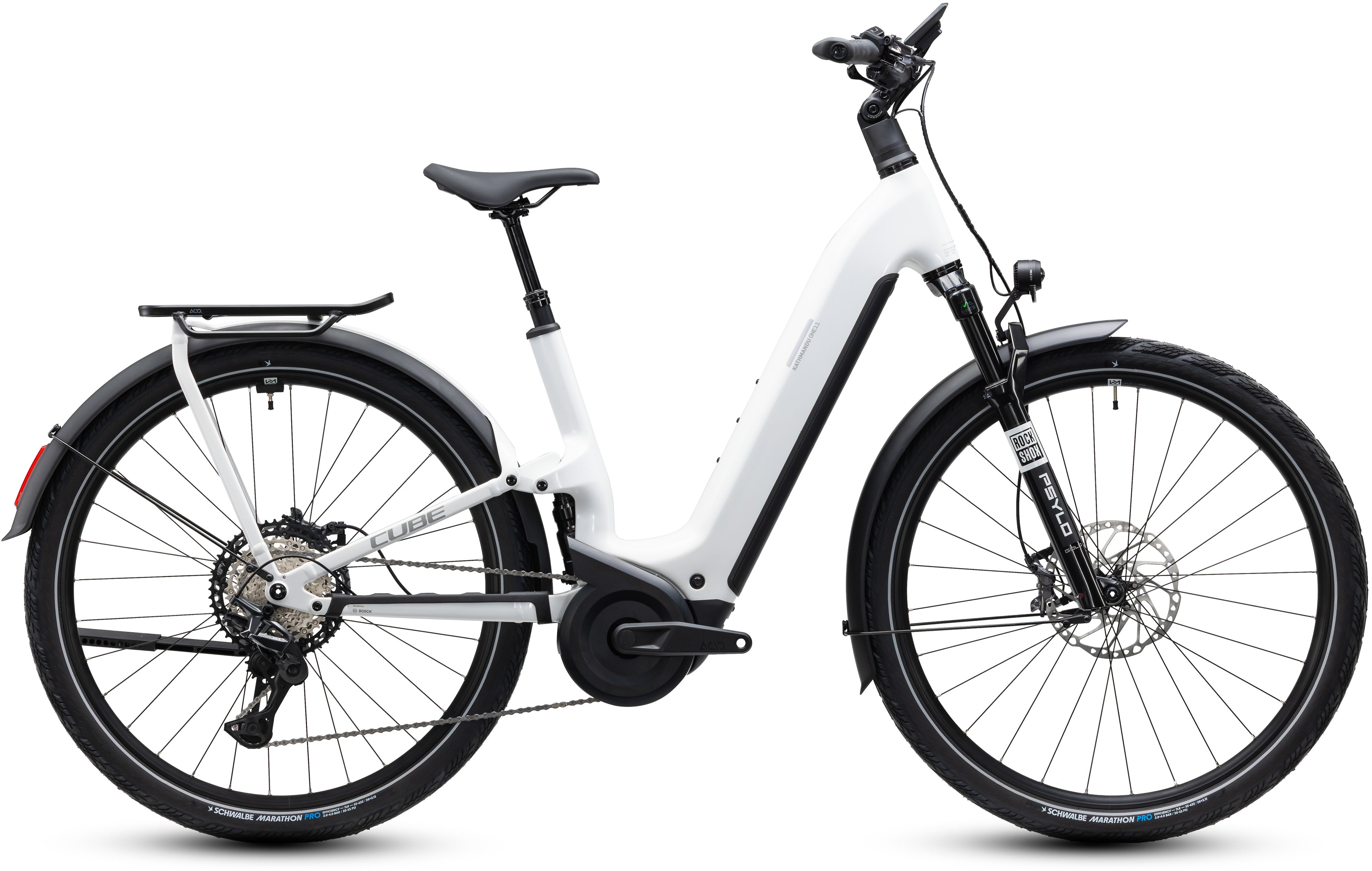

The Kathmandu Hybrid ONE11 HPC SLX from CUBE harnesses the smooth pedal assistance of Bosch's CX motor – combined with a Kiox 500 display and 800Wh PowerTube battery – and delivers it via Shimano's legendarily reliable XT 1x12 gears to grippy Schwalbe tyres running on Newmen Performance 30 wheels for miles of smiles. A RockShox Psylo Gold RC Air suspension fork and Deluxe Select+ RT shock, meanwhile, serve up 100mm of easily adjustable front- and rear-wheel travel, for better control and comfort on even the roughest of roads – backed up by powerful Shimano XT hydraulic disc brakes. The sturdy and versatile Integrated Carrier 3.0 means you can take what you need, and a dropper seatpost and adjustable stem seal the deal. It's the complete touring package.
Frame
Combining everything we know about full suspension and rugged touring bikes in a single frame, the Kathmandu Hybrid ONE11 HPC from CUBE is a different kind of Bosch-powered adventure bike. The accessible Easy Entry design makes use of a sophisticated High Performance Carbon front end, housing a powerful Bosch CX drive and 800Wh PowerTube battery. There's 100mm of rear-wheel travel from an incredibly neatly sited trunnion-mount shock, while the Integrated Carrier 3.0 is incorporated into the aluminium rear triangle. Internal Cable Routing complements the frame's clean looks, the derailleur hanger is UDH-compatible, and a chain guard is fitted as standard. It's all there so that you can ride further... in comfort.
Specification
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Efficient Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Integrated Carrier 3.0, Integrated Seatclamp |
|---|---|
| Fork | Rock Shox Psylo Gold Isolator RC, Tapered, 15x110mm, E-Bike Optimized, 100mm |
| Frame shock | Rock Shox Deluxe Select+ 165x45mm, Trunnion Mount |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar | CUBE Comfort Trail Bar HD, 700mm |
| Grips | ACID Travel Comfort |
| Rear Derailleur | Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore XT SL-M8210-IR, Direct Attach, Single Click |
| Brakes | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
| Crankset | ACID MTB Hybrid Pro, 40T |
| Cassette | Shimano XT CS-M8100, 10-51T |
| Chain | Shimano CN-M6100 |
| Wheelset | Newmen Performance 30, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Tires | Schwalbe Marathon Efficiency, Pro, 55-622 |
| Pedals | ACID PP Trekking |
| Saddle | ACID Sequence Pro Plus |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Headlight | ACID Front Light PRO-E 200 X-Connect, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | ACID FM Pure Kickstand |
| Mudguard | ACID 65 |
| Bell | Knog Oi |
| Carrier | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Motor | Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 4A |
| Remote | Bosch LED Remote |
| Display | Bosch Kiox 500 |
| Weight | 28,2 kg |
| System Weight max. | 150 kg |
| Driver max. Weight | 120 kg |
