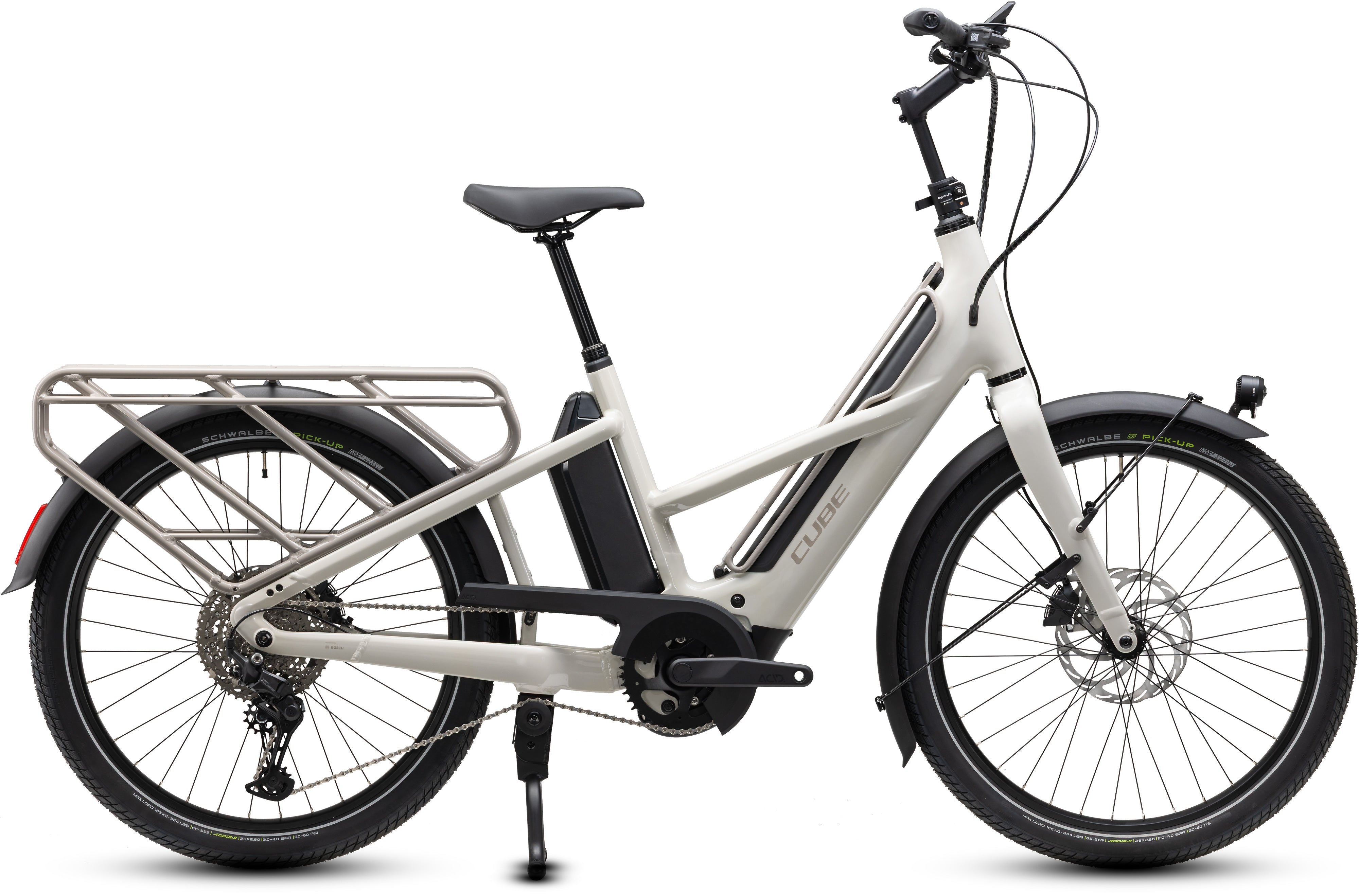

The Longtail Hybrid is a tough, versatile urban load-lugger. The 800Wh battery, powerful Bosch Cargo Line motor and Kiox 500 display, working in conjunction with Shimano Cues 11-speed gears, provide the power needed to move a total load of up to 200kg across town – and beyond – in comfort and with confidence. We designed it to fit most riders quickly, with a Speedlifter stem and dropper seatpost that make it simple to put your feet down at traffic lights and junctions. A sturdy twin-leg kickstand with handlebar-mounted lockout provides stable parking. Front and rear lights help you see and be seen, day and night. Magura Gustav Pro hydraulic disc brakes and grippy, comfortable Schwalbe 2.6in tyres deliver reliable stopping power in all weather conditions. Optional accessories include a rear rack extender, child seat with footrests and safety guard, plus a front carrier compatible with a matching bag or basket, both with HIC, allowing you to configure your Longtail to suit your needs precisely.
Frame
Our cargo-carrying Longtail Hybrid is built with practicality in mind. Powered by Bosch's powerful Cargo Line motor and 800Wh battery, it's designed to handle a load of up to 200kg in total. A weight of 60kg can be carried on the sturdy, integrated rear carrier, which can accept two standard pannier bags per side. There's even a lockable storage compartment for smaller items in the down tube. Need more load-carrying versatility? No problem. Optional accessories include an extension to allow the fitting of a standard Eurobox, a headset-mounted front carrier, a down-tube carrier, and a rear child seat with added foot protection. Whatever you need to carry and wherever you need to carry it to, the Longtail Hybrid will help you get it there.
Specification
| Frame | Aluminium Casting, Comfort Ride Geometry, Oversized Headtube, Premium Durability And Safety, Suspended Carrier, Downtube Carrier |
|---|---|
| Fork | Aluminium Rigid Fork, 26" |
| Headset | ACROS Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | BySchulz Speedlifter Classic |
| Handlebar | CUBE Comfort Trail Bar, 700mm |
| Grips | ACID Travel Comfort |
| Rear Derailleur | Shimano Cues RD-U6000-GS, 11-Speed |
| Shifters | Shimano Cues SL-U6000, Rapidfire-Plus |
| Brakes | Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Crankset | ACID Trekking Hybrid, 44T |
| Cassette | Shimano Cues CS-LG400, 11-50T |
| Chain | KMC eGlide |
| Rims | Mach1 Trucky 30, 36H, Disc, Tubeless Ready |
| Hub Front | ACID SLX, 15mm, Boost, 6-Bolt |
| Hub Rear | ACID SLX, 12mm, Boost, 6-Bolt |
| Tires | Schwalbe Motion Pick-Up, Performance, Super Defense, 65-559 |
| Pedals | ACID PP Trekking |
| Saddle | ACID Sequence 180 Pro Plus Ultra Gel |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 34.9mm |
| Headlight | ACID Front Light PRO-E 150 X-Connect, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | Twin-Leg Kickstand with Remote Lockout |
| Mudguard | ACID 65 |
| Bell | Knog Oi |
| Motor | Bosch Drive Unit Cargo Line max. 120Nm (BDU38) |
| Battery | Bosch PowerPack 800 |
| Charger | Bosch 4A |
| Remote | Bosch LED Controller |
| Display | Bosch Kiox 500 |
| System Weight max. | 200 kg |
| Driver max. Weight | 100 kg |
