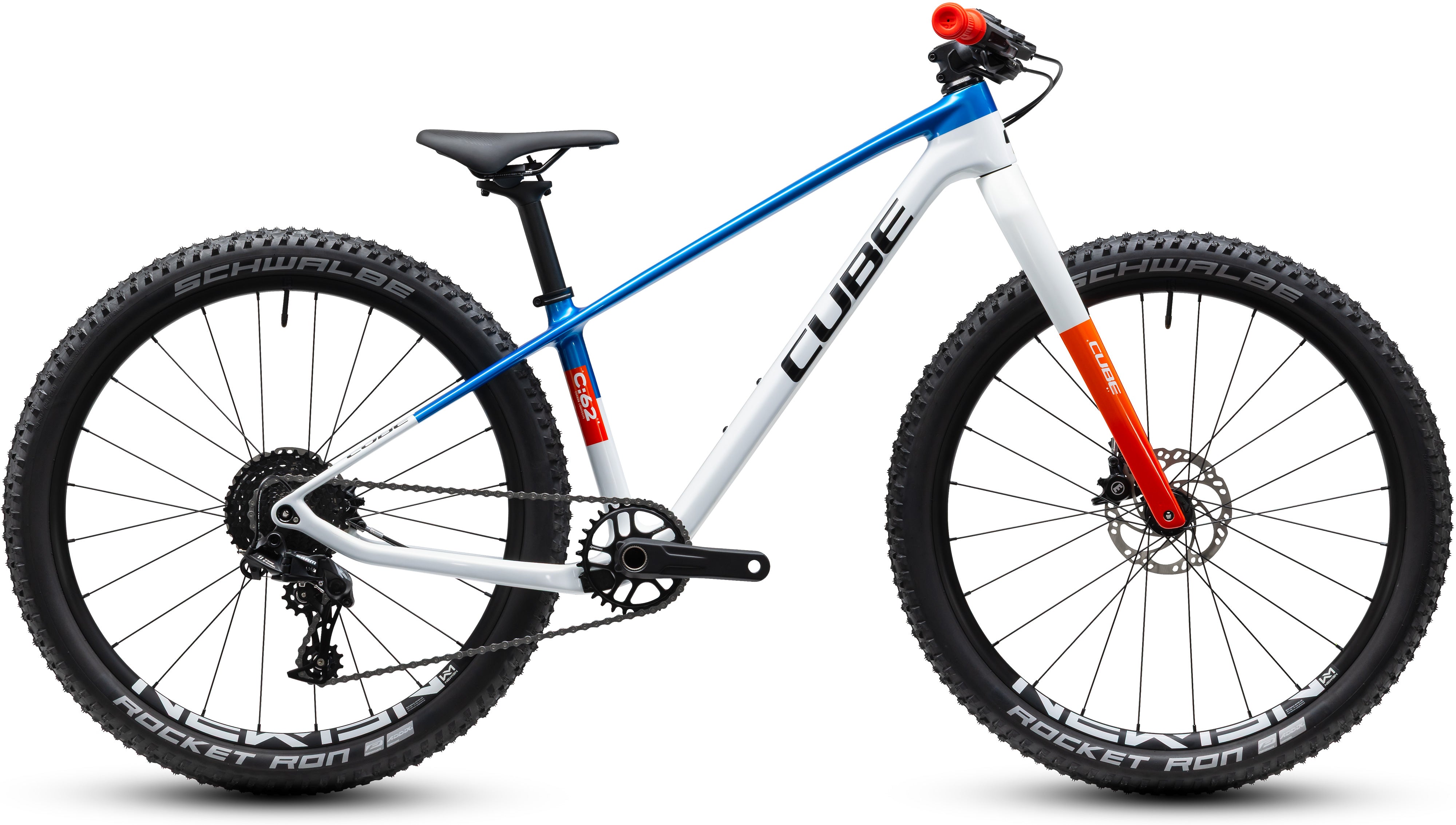

A really lightweight bike won't win races on its own. But it's a good starting point – and a lighter bike is more fun to ride, too. For the junior whippet in your family, the Phenix 240 C:62 SLX ticks all the right boxes. Its lightweight carbon frame and fork – perfectly proportioned for smaller riders – are just the beginning. We chose light, tough Newmen Evolution X.A.25 wheels shod with Schwalbe Rocket Ron 2.1in tyres for quick acceleration. Powered them with Sram NX Eagle 1x11 gears. And added child-proportioned handlebars, grips and brake levers – connected to powerful Magura MT4 hydraulic discs – for perfect race day control, whatever the conditions. All that's left is to pedal... and win!
Frame
We know from working with racers that they want a frame that's stiff, responsive and, above all, light. So these are exactly the qualities we built into our Phenix 240 C:62's lightweight carbon frame, but scaled down perfectly to fit younger riders. Every single detail of the frame design is aimed at reducing weight without sacrificing strength or stiffness. A tapered head tube, full carbon fork and 12mm thru-axles front and rear ensure precise steering and efficient power transfer. We kept the seatstays narrow for a comfortable ride, and cables are routed internally to match the frame's sleek looks. It's light, it's fast, and it's fun!
Specification
| Frame | C:62® Monocoque Advanced Twin Mold Technology, PressFit BB, Internal Cable Routing |
|---|---|
| Fork | CUBE Carbon, 1 1/8", Internal Cable Routing, Flat Mount Disc, 12x100mm |
| Headset | Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/8" |
| Stem | CUBE Aluminium Lite |
| Handlebar | CUBE KIDS 590mm, Ø 19mm |
| Grips | ACID Kids 19.0 |
| Rear Derailleur | Sram NX, 11-Speed |
| Shifters | Sram NX |
| Brakes | Magura MT4, Flat Mount, Hydr. Disc Brake (140/140) |
| Bottom Bracket | Shimano BB-MT500PA, 92mm Pressfit |
| Crankset | ACID AR SLT 30T, 130mm |
| Cassette | e*thirteen XCX Plus, 9-34T |
| Chain | KMC xGlide |
| Wheelset | Newmen Evolution X.A.25, 24/24 Spokes, Tubeless Ready |
| Tires | Schwalbe Rocket Ron Kevlar, 2.1 |
| Saddle | CUBE Kid |
| Seatpost | CUBE Performance Post, 27.2mm |
| Weight | 7,2 kg |
| System Weight max. | 80 kg |
| Driver max. Weight | 65 kg |
