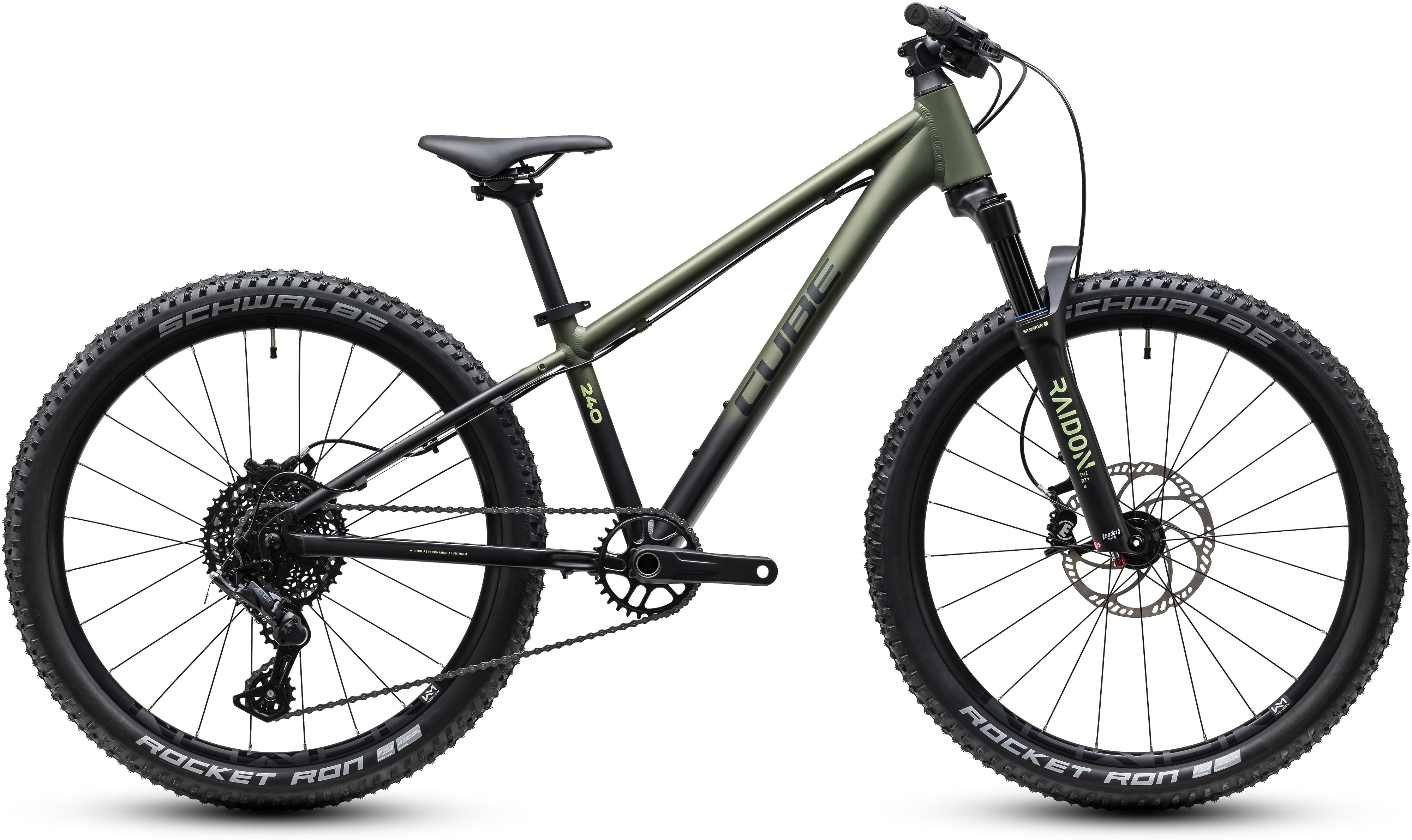

CUBE Trail Motion bikes are all about taking our existing mountain bikes and turning the volume up to 11... because it's fun! The Reaction 240 TM starts with Magura's powerful, progressive MT Thirty brakes – with an oversize 180mm rotor up front – and grippy Schwalbe 2.1in tyres on wheels built with Newmen rims, so your young ripper is always in control. We chose a Suntour Raidon 34 Boost suspension fork too, because it adds an extra shot of comfort and grip, even on rough trails – and it's tuned to match a younger rider's weight. Plus, with wide-ranging Microshift Advent 1x9 gears, your youngster has all the range they need to keep up on family rides.
Frame
The Reaction 240 TM is made from the same kind of heat-treated 6061 aluminium tubes that you'll find on our performance adult bikes. We also use the same mechanical tube-forming process to adjust tube shapes for the best combination of strength and weight, as well as tyre clearance. Making the most of all this frame wizardry is a suspension fork, designed specifically to work with a small frame and a light rider. Disc brake mounts and cable routing allow for the greater safety and stopping power of discs. And a replaceable derailleur hanger insures against expensive repairs in the event of minor mishaps
Specification
| Frame | Aluminium Lite 6061 |
|---|---|
| Fork | SR Suntour Raidon34, 80mm |
| Headset | VP Z-t, Top ZS 1 1/8" (OD 44mm), Bottom ZS 1 1/2" (OD 56mm)<br /> |
| Stem | CUBE Aluminium Lite |
| Handlebar | CUBE KIDS 590mm, Ø 19mm |
| Grips | ACID Nuro Rookie 19.0 |
| Rear Derailleur | Microshift Advent RD-M6195M, 9-Speed |
| Shifters | Microshift Advent SL-M9295-R |
| Brakes | Magura MT Thirty, Front 4-Piston / Rear 2-Piston, Hydr. Disc Brake (180/160) |
| Bottom Bracket | Prowheel BSA PW-MB68 |
| Crankset | ACID AR SLT, 30T, 130mm |
| Cassette | Microshift CS-H093, 11-42T |
| Chain | KMC X9 |
| Wheelset | Newmen Evolution X.A.25, 24/24 Spokes, Tubeless Ready |
| Tires | Schwalbe Rocket Ron Kevlar, 2.1 |
| Pedals | CUBE PP MTB<br /> |
| Saddle | CUBE Kid |
| Seatpost | CUBE Performance Post, 27.2mm |
| Seatpost clamp | CUBE Superlight, 31.8mm |
| Weight | 10,5 kg |
| System Weight max. | 80 kg |
| Driver max. Weight | 65 kg |
