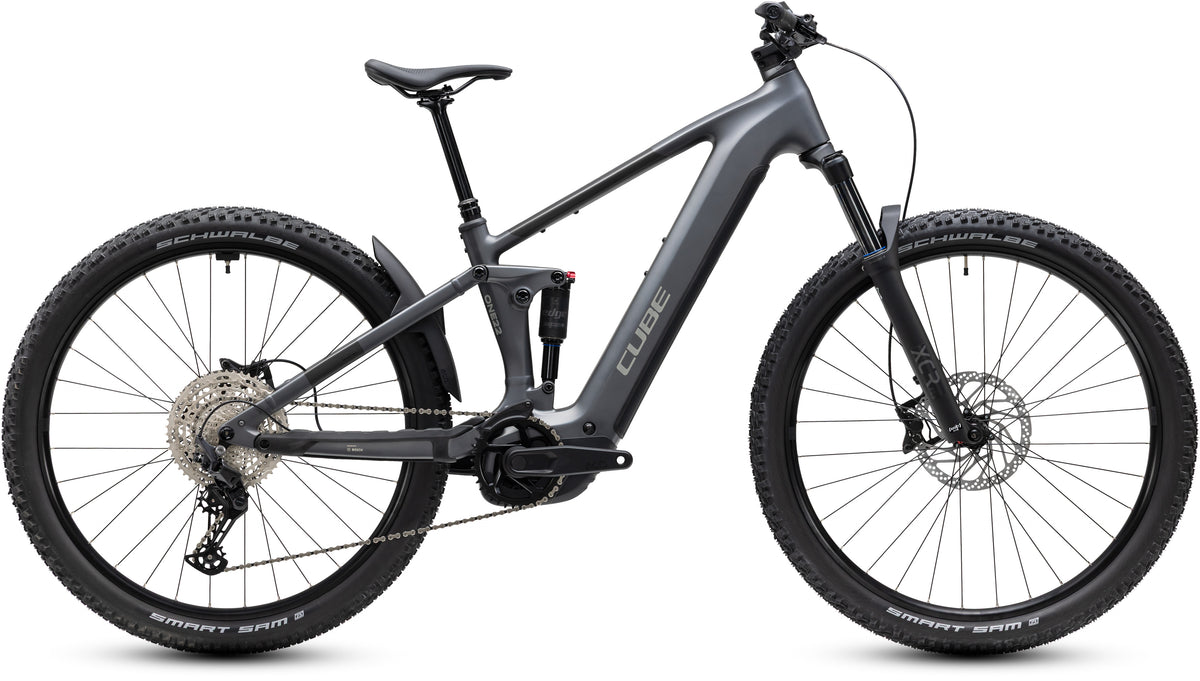

The Stereo Hybrid ONE22 Pro puts you in control. With the powerful Bosch CX drive system, Purion 200 controller and 800Wh battery, you've plenty of pedal assistance for even extended exploring. A Suntour XCR36X air suspension fork and rear shock work with CUBE's proven kinematics to deliver ground-hugging comfort. Grippy Schwalbe 2.6in tyres and strong 4-piston Shimano hydraulic disc brakes help control your speed. And Shimano's reliable and easy-to-use Deore 1x12 gears keep you moving forward. Time for exploring...
Frame
With added Bosch power and proven CUBE suspension kinematics, our trail explorer is a bike for all reasons. Suspension design that's stood the test of time is designed to work with a 120mm fork – including a mudguard mount – for the best in comfort and control. We fitted an 800Wh battery to power the Bosch CX drive unit, for worry-free extended rides. The UDH dropout, Internal Cable Routing and Direct Mount chain guard are all examples of the attention to detail we put into all our frames. And, with Size Split, you're sure to be able to find the perfect fit.
Specification
| Frame | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
|---|---|
| Fork | Suntour XCR36X 2CR Air, Tapered, 15x110mm, 120mm |
| Frame shock | SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount |
| Shock hardware | Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
| Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | CUBE Rise Trail Bar 35 |
| Grips | ACID Hybrid Perform |
| Rear Derailleur | Shimano Deore RD-M6200-SGS, ShadowPlus, 12-Speed |
| Chain Guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Shifters | Shimano Deore SL-M6210-IR, Direct Attach, Single Click |
| Brakes | Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| Crankset | ACID MTB Hybrid Pro, 38T |
| Cassette | Shimano Deore CS-M6200, 10-51T |
| Chain | KMC e12 |
| Wheelset | ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Tires | Schwalbe Smart Sam, Active, 2.6 |
| Pedals | ACID PP Rookie large |
| Saddle | ACID Venec EMTB Plus 145 |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Motor | Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 2A |
| Remote | Bosch Purion 200 with Integrated Display |
| Weight | 26,8 kg |
| System Weight max. | 150 kg |
| Driver max. Weight | 120 kg |
