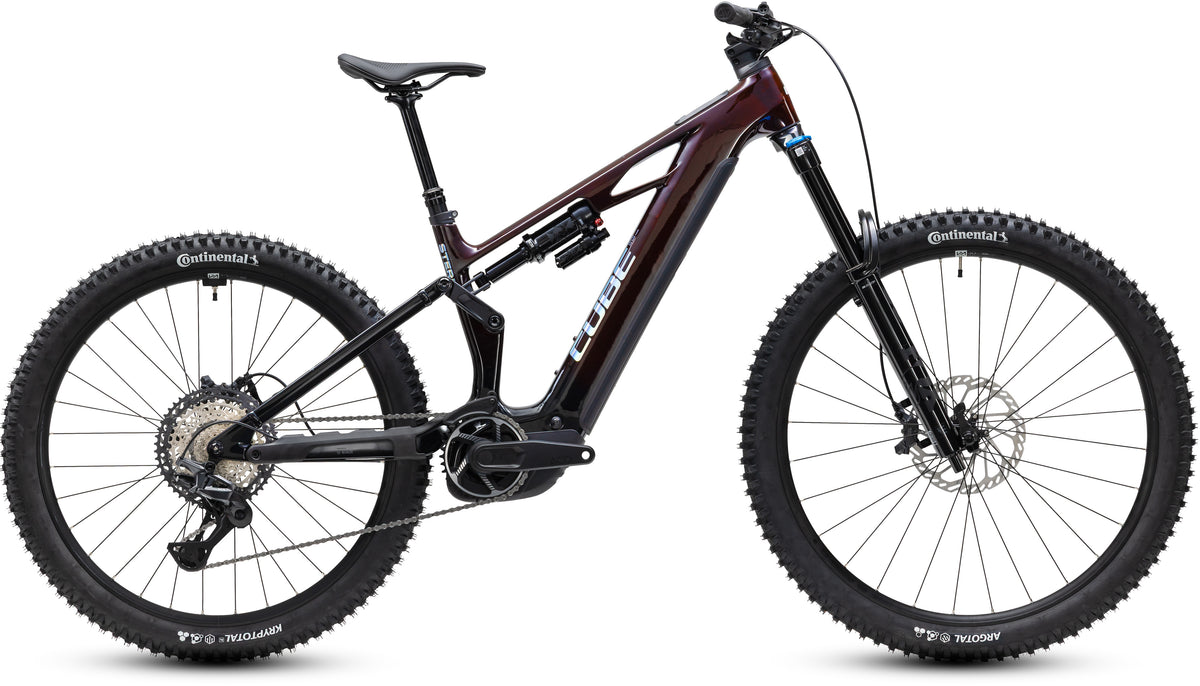

Challenging trails need a suspension set-up to match, which is why we gave the Stereo Hybrid ONE77 HPC SLX a Fox Float 38 Performance fork and Float X Performance shock. Together, they deliver 170mm of rock-swallowing travel front and rear, with loads of adjustment so you can get it dialled. The Bosch CX drive and 800Wh PowerTube battery give your pedalling a strong, controllable boost, via Shimano's legendary XT 1x12 gears – and the top tube-mounted Kiox 400C display shows you exactly what's going on. Meanwhile, the mullet Newmen Performance 30 wheelset – shod with Continental Argotal and Kryptotal 2.4in tyres – is held in check by Shimano's powerful XT hydraulic disc brakes. Add it all up and, with a remote dropper seatpost, too, it's the perfect formula for big mountain fun.
Frame
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel set-up with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. We added Internal Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also included a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Specification
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
|---|---|
| Fork | Fox 38 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm |
| Frame shock | Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever |
| Shock hardware | Front: 30x8mm, Rear: DU-Bushing 12.7mm |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | CUBE Rise Trail Bar 35 VariGrip System |
| Grips | ACID Endure VariGrip System |
| Rear Derailleur | Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed |
| Chain Guide | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Shifters | Shimano Deore XT SL-M8210-IR, Direct Attach, Single Click |
| Brakes | Shimano XT BR-M8220, Hydr. Disc Brake (200/200) |
| Crankset | ACID MTB Hybrid Pro, 36T |
| Cassette | Shimano XT CS-M8200, 10-51T |
| Chain | Shimano XT CN-M8100 |
| Wheelset | Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Tires Front | Conti Argotal, Enduro Soft, Tubeless Ready, 2.4 |
| Tires Rear | Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4 |
| Pedals | ACID PP Rookie large |
| Saddle | ACID Venec EMTB Trail 140 |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Seatpost clamp | CUBE Semi-Integrated |
| Motor | Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 4A |
| Remote | Bosch Mini Remote |
| Display | Bosch Kiox 400C |
| Weight | 24,5 kg |
| System Weight max. | 160 kg |
| Driver max. Weight | 125 kg |
