Frame colour - amber*; stone grey*

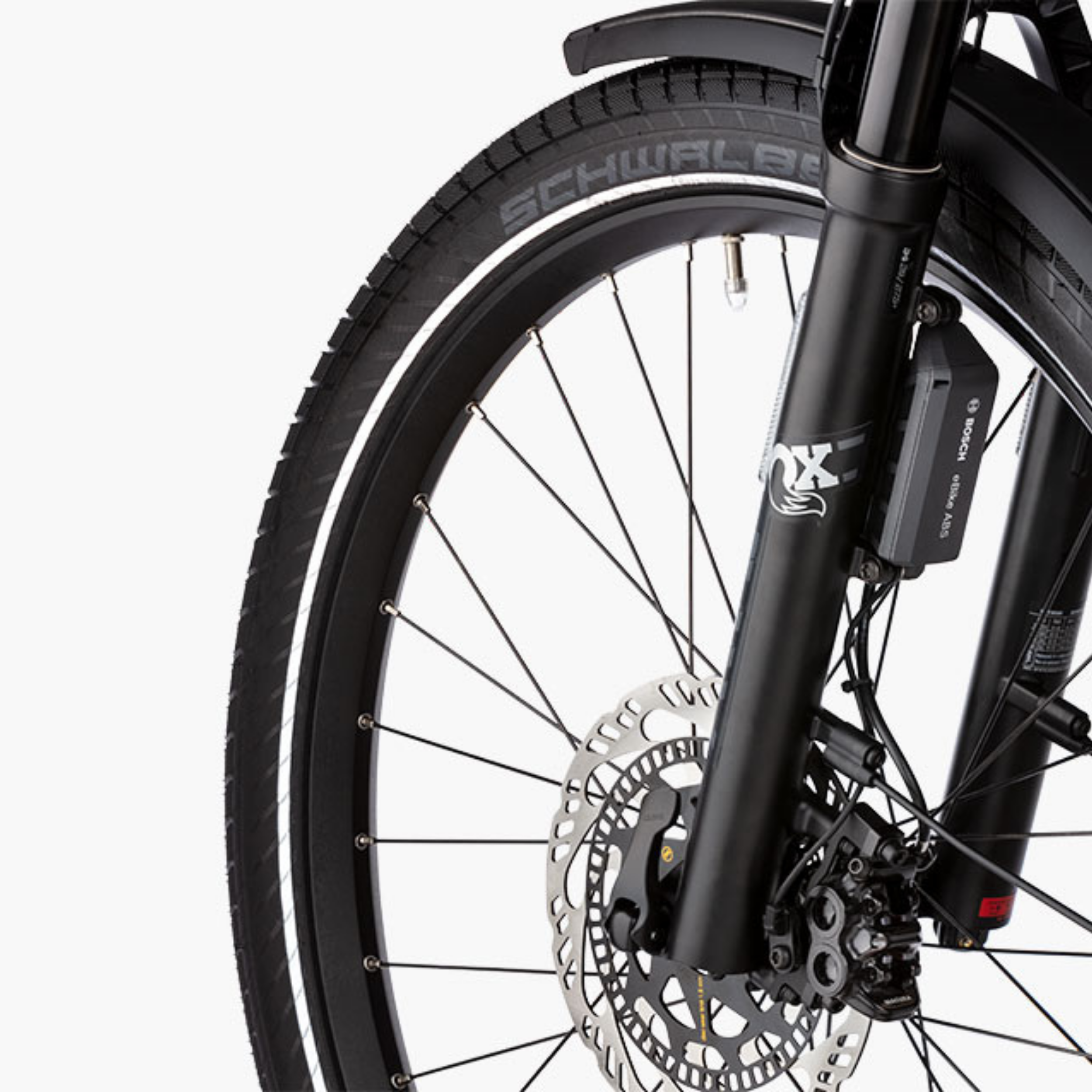

Suspension fork - Federgabel Fox AWL 34, Air, 120mm
Rear shock - Fox Float Rhythm SV 165x45
Seatpost - Dropper Post X-Fusion Manic 100
Tyres - Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Johnny
Watts 365 60-584*
Tubes - Schwalbe AV21
Rims - Rodi Tryp35 Evo 27,5"
Spokes - Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim
Leader 2,0 mm, Inox, black ( 36x )
Front hub - Novatec Boost, QR, 32H
Rear hub - Novatec Boost, QR, 36H

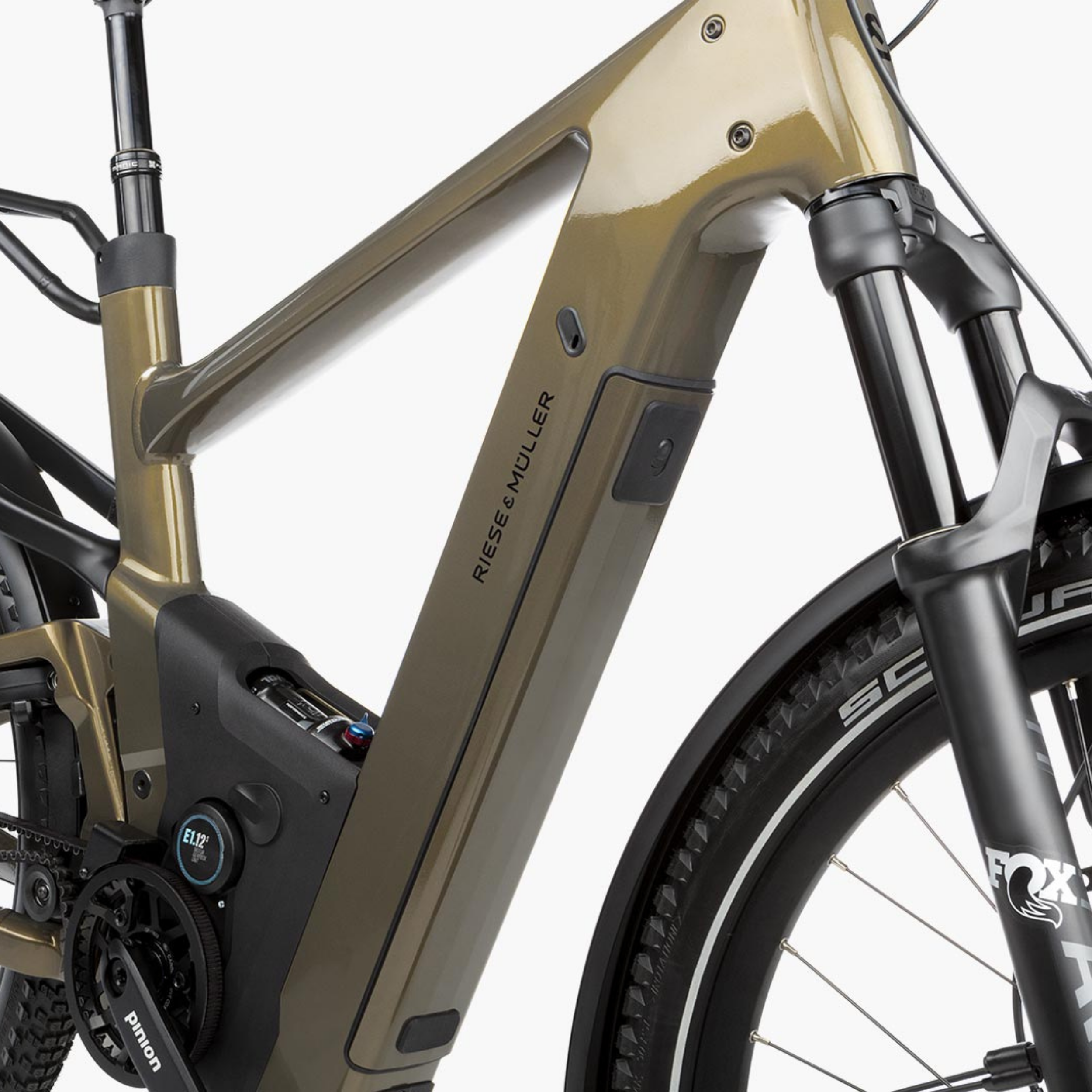

Battery - Fit BAT Tubepack 800
Motor - Pinion E1.12 MGU
Crankset - Samox, 165 mm
Chain ring - 39T, for Gates drive belt CDX
Chain guard - Belt guard

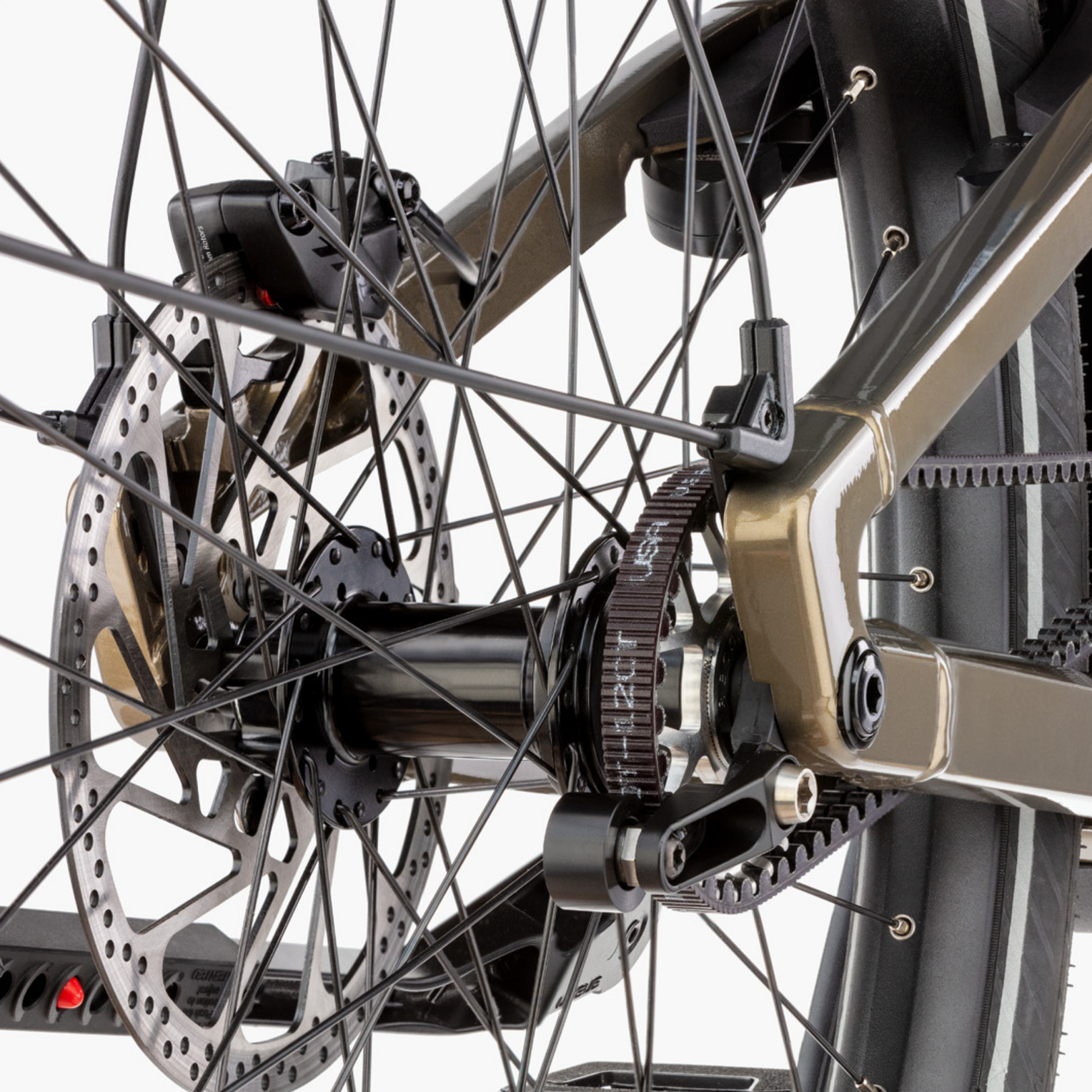

Chain - Gates drive belt CDX
Pinion - 28T, for Gates drive belt CDX
Saddle - Ergon
SF10 Gel
Pedals - VP
R&M Custom; VP-538*
Shifting system - Pinion 12 Gear

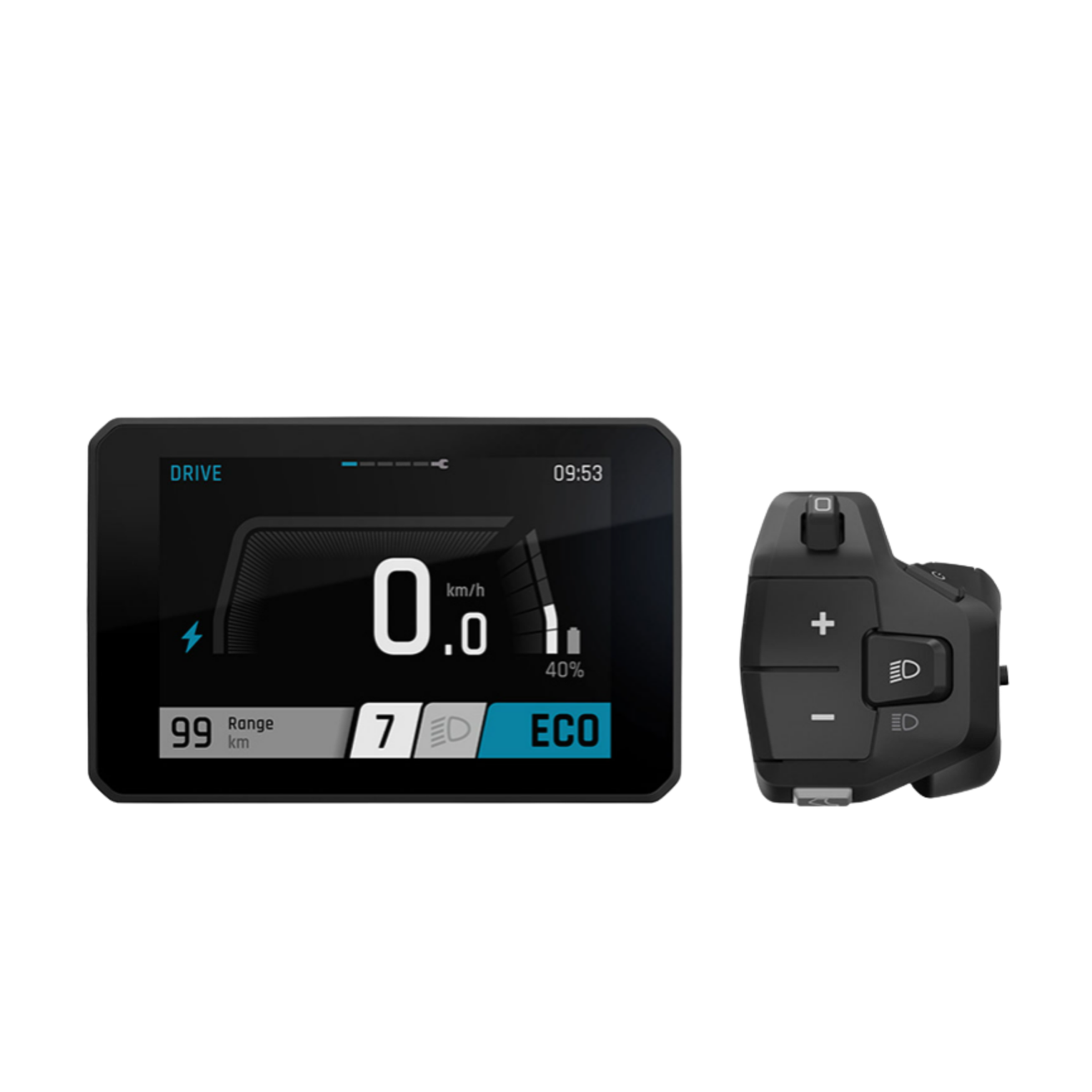

Shifter - pinion TE1

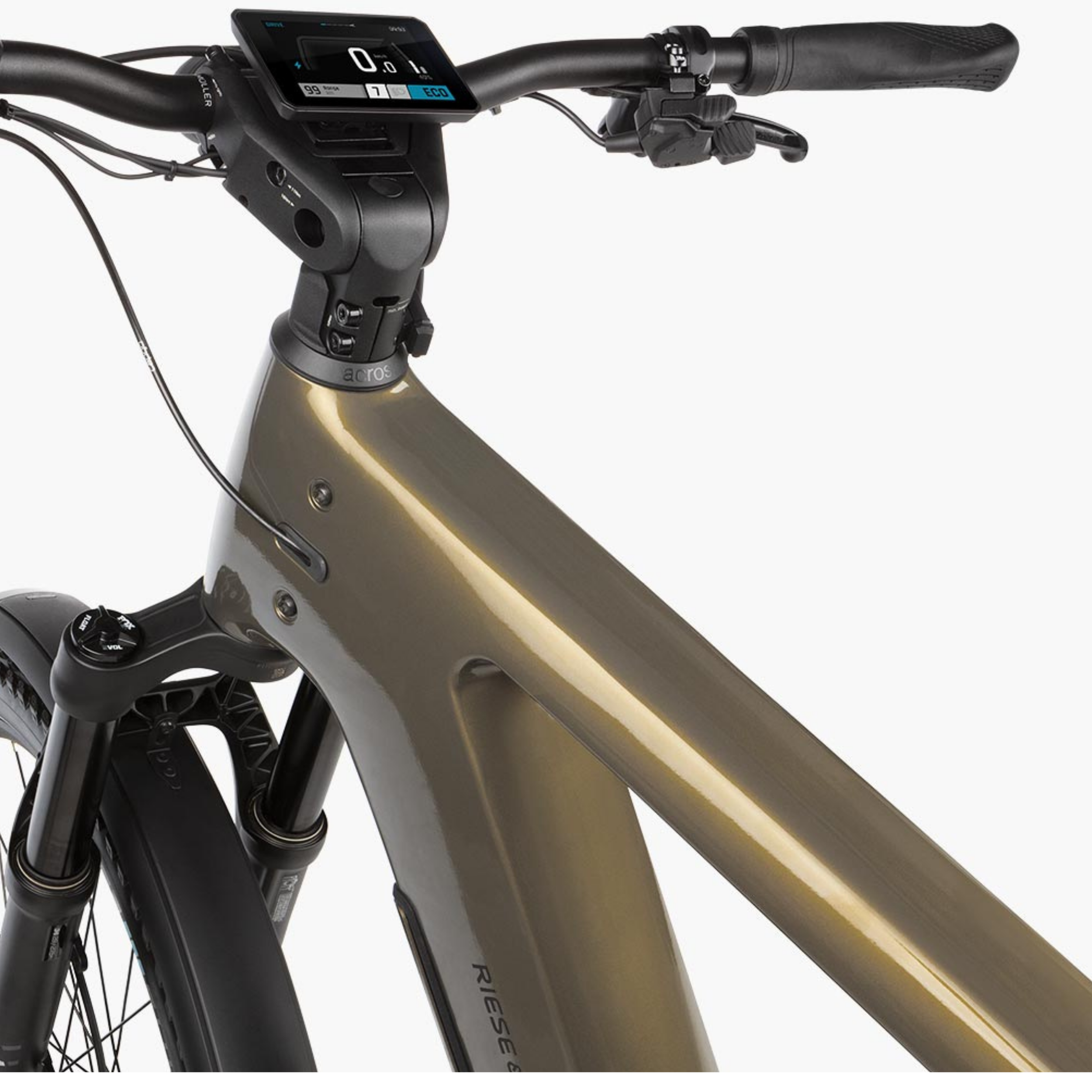

Handlebar - Satori R&M Custom, 25,4mm, Alu
Stem - Satori R&M Custom, cable integration, adjustable
angle, Alu
Grips - Ergon ergonomic
Brakes - Tektro TRP HD-EU835 disc brake
Front light - Supernova M99 Mini Pro-25
Tail light - Supernova TL3 Pro; Büchel Nano COB, integrated
in the mudguard
Mudguards - Curana Orbit 70
Luggage rack - Riese
& Müller
Rubber - Bibia
Bell - Knog OI V2
Kickstand - Ursus
R90 Mooi Plus ANS
Lock - ABUS Granit Xplus
Pump - Beto air suspension fork pump
Frame size [cm] - 47 cm*; 51 cm*; 56 cm*
The specification table indicates all available components
for this model – not just the basic equipment. Some of the options listed are
only available for a surcharge. For more information, see the Configurator.
Riese & Müller reserves the right to make technical modifications as well
as changes to the shape, colour and/or weight within reasonable limits.
* May differ depending on the availability in your country,
design or configuration of the model.
