Frame colour amber

Suspension fork Federgabel Fox AWL 34, Air, 120mm

Rear shock Fox Float Rhythm SV 165x45

Headset TH No. 9, semi-integrated

Seatpost Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*

Tires Schwalbe Johnny Watts 365 60-584

Tubes Schwalbe AV21

Rims Rodi Tryp35 Evo 27,5"

Spokes Sapim Leader 2,0 mm, Inox, black

Front hub Novatec Boost, Disc, QR, 32H

Rear hub Novatec Boost, QR, 36H

Battery Fit BAT Tubepack 800

Motor Pinion E1.12 Speed MGU

Crankset Samox, 165 mm

Chain ring 39T, for Gates drive belt CDX

Chain guard Belt guard

Chain Gates drive belt CDX

Pinion 28T, for Gates drive belt CDX

Saddle Ergon SF10 Gel

Pedals VP R&M Custom; VP-538*

Shifting system Pinion 12 Gear

Shifter Pinion TE1

Handlebar Satori R&M Custom, 25,4mm, Alu

Stem Satori R&M Custom, cable integration, adjustable angle, Alu

Grips Ergon ergonomic

Brakes Tektro TRP HD-EU835 disc brake

Front light Supernova M99 Mini Pro-45

Tail light Supernova M99, integrated plate illumination and brake light

Mudguards Curana Orbit 70

Luggage rack Riese & Müller

Rubber Bibia

Horn Supernova horn

Kickstand Ursus R97 IC Invisible Connect

Lock ABUS Adaptor Chain 2.0 130 cm; ABUS Granit Xplus

Pump Beto air suspension fork pump

Mirror Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*

RX Hardware RX Chip (für RX Services)

Frame size 56 cm

12speed Pinion Gearbox

800wh Battery

Fox Front and Rear Suspension

Comfort display

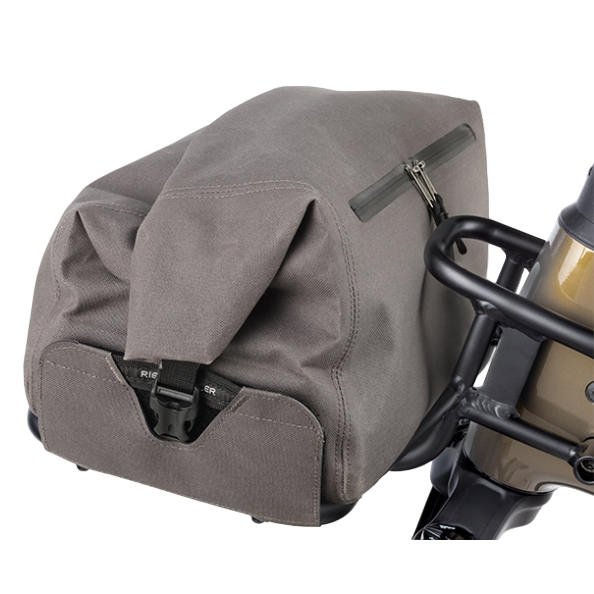

Front carrier and bag

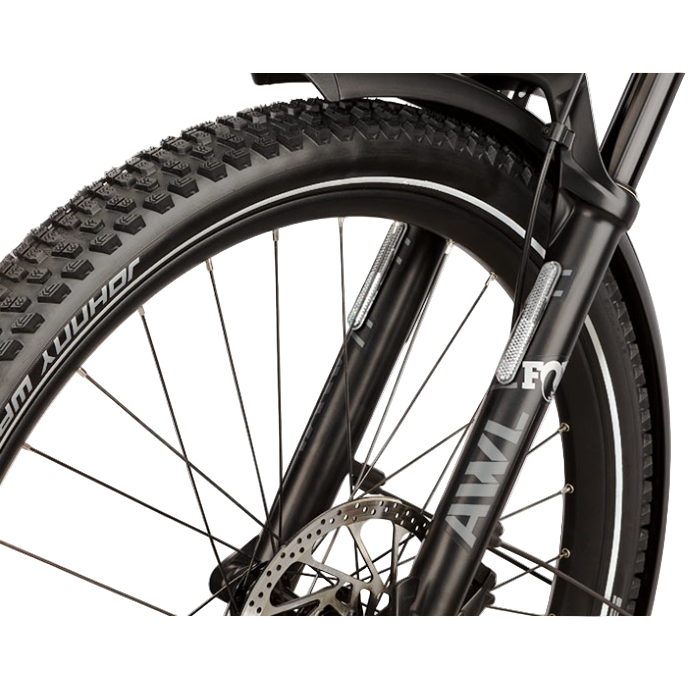

Off road kit

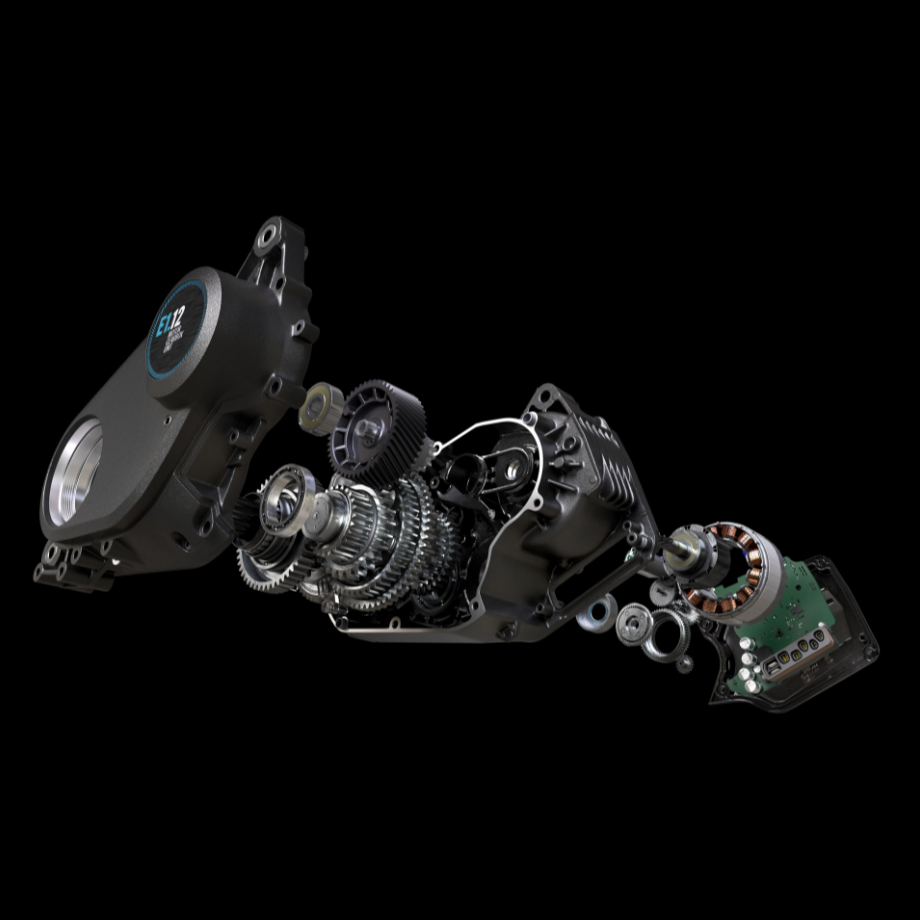

Pinion MGU ( Motor)

Torque 85 to 160 Nm
(depending on the gear)

Maximum power  - 800 W (High speed)

Weight 4.1 kg

Battery - Energy reserve 800 Wh - Voltage 48 V

Weight 3.8 kg

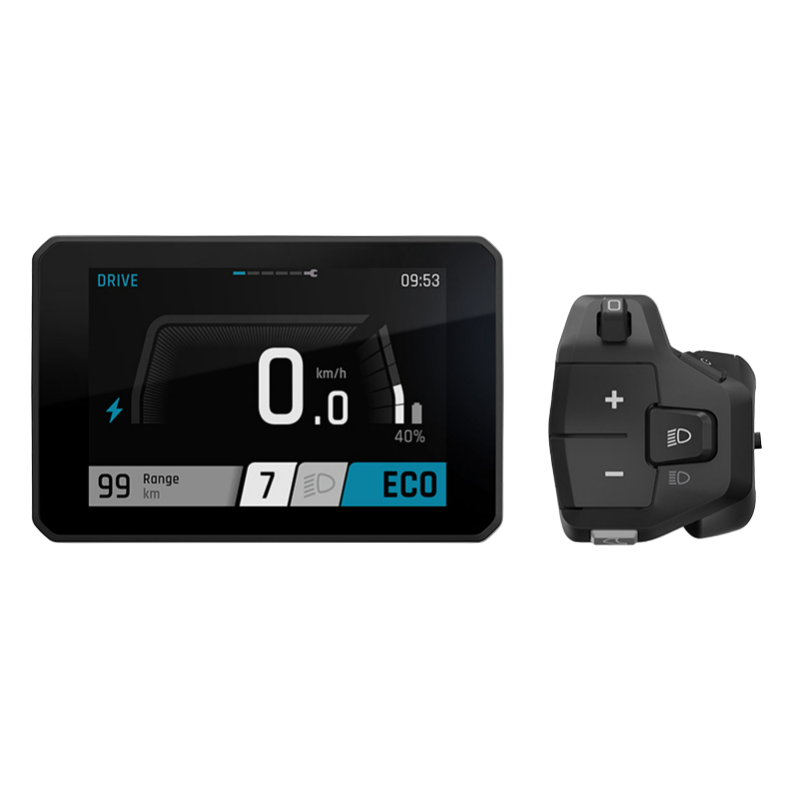

Display

Functions - Display of riding statistics and modes as well
as battery charge level, Bluetooth (for the RX Connect App), ANT+

USB to charge your smartphone - yes (external charging
socket)

Control unit - Remote
