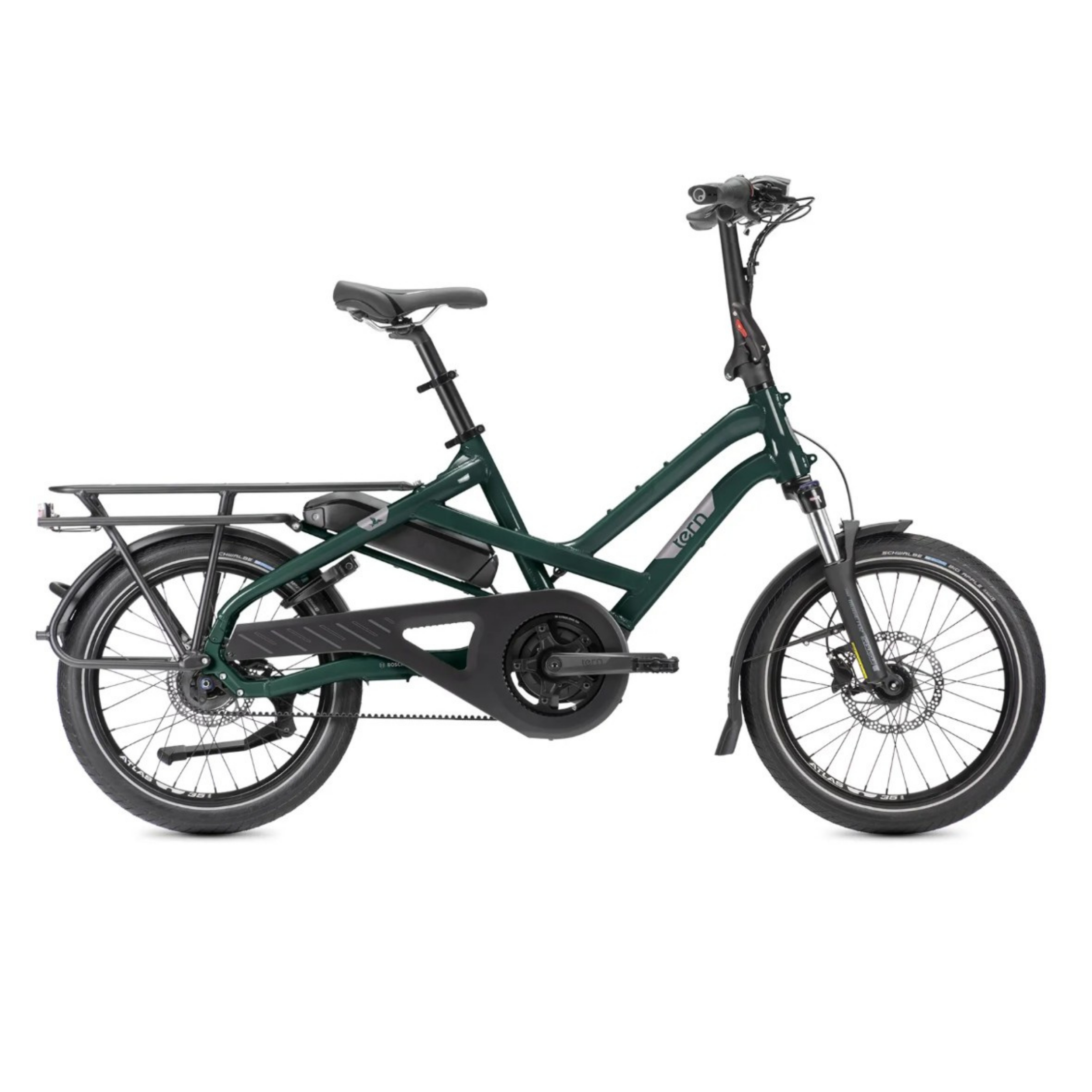

Frame: Tern HSD, 6061-AL, patented design, Tern sliding
dropouts, EFBE Tri-Test approved: 180 kg
Fork: Suntour custom for Tern, 1.5" tapered Chromoly
steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg
Cockpit
Handlepost: Tern Physis 3D, 3D forged, 5 patented
technologies, 12°, 290 mm
Stem: Tern Andros, adjustable, forged construction, patented
technology
Headset: Tern Flux Pro Taper by FSA, 1.5", angular
contact bearings, Physis integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape: Ergon
Saddle: Tern Upright by Velo
Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Shimano, hydraulic disc, 180 mm rotor
Rear Brake: Shimano, hydraulic disc, 160 mm rotor
Brake Levers: Shimano, hydraulic disc
Brake Cable & Housing: Shimano, hydraulic disc
Wheels
Front Wheel: Tern Atlas H, cargo wheel
Rear Wheel: Tern Atlas H, cargo wheel
Front Hub: Novatec, Thru-axle, sealed bearings
Rear Hub: Shimano Nexus INTER-5E
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, wide 35 mm
Tyres: Schwalbe Big Apple, 55-406, puncture protection,
Reflex
Transmission
Shifter(s): Shimano Nexus INTER-5E
Crankset: Tern HSD custom, Gates CDX CNC machined beltring
Cassette/Freewheel: Gates CDX, precision CNC machined cog
Bottom Bracket: Motor integrated
Chain: Gates Carbon Drive CDX belt
Pedals: Urban with non-slip surface
Shifter Cable & Housing: Shimano
E-System
Motor: Bosch Performance, 340% Assist, 75 Nm Torque, max
speed 25 kph (EU);
Battery: Bosch PowerPack 545
Display: Bosch Intuvia 100 w/ LED remote, 4 mode selectable,
walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
Lock & Alarm: Optional
Range: 545 Wh: 51-121 km (32-76 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell: Pitch Plus, brass
Chainguard: Tern Custom, full chain cover
Kickstand: Ursus, rear mount
Luggage Socket: Combo Mount
Front Light: Tern Valo Direct, 190 lumens
Rear Light: Herrmans H-Trace, for eBike
Fenders: SKS, stainless hardware
Rack(s): Atlas H rack, Atlas Rack Mount, 6 point mounting,
80 kg capacity
Frame Lock: ABUS, keyed-alike with Bosch battery
