Frame Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg

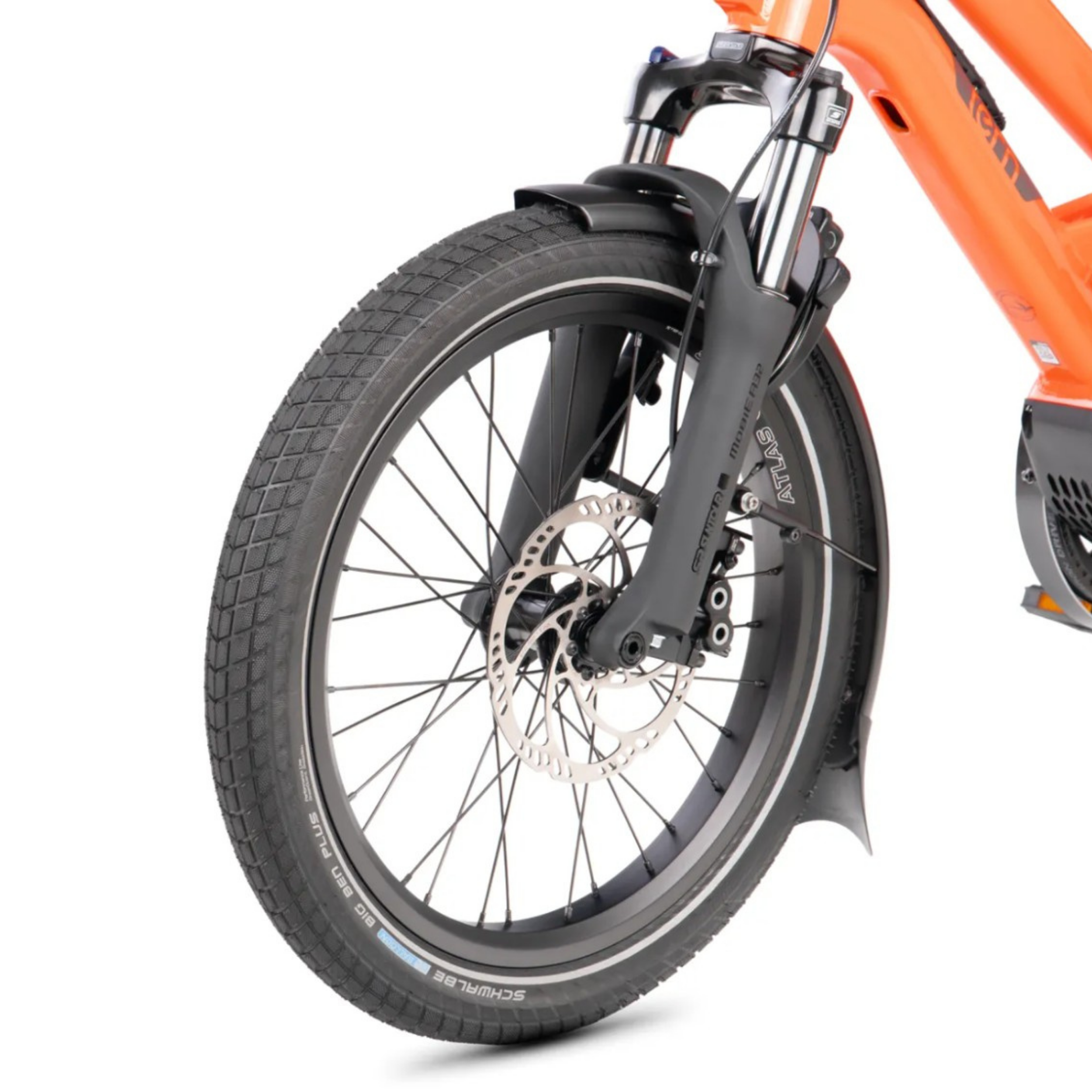

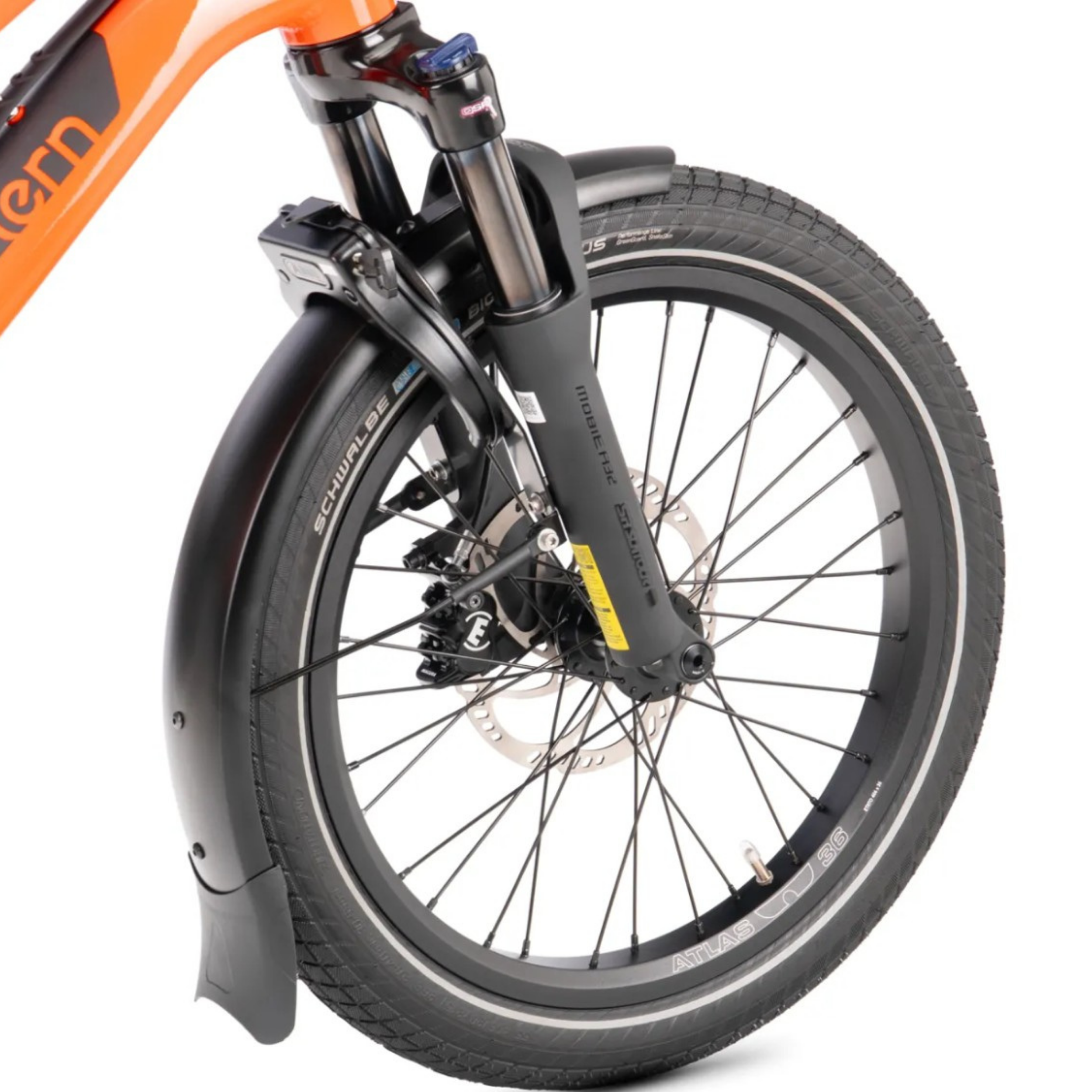

Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210 kg
Handlepost Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem Tern Andros, adjustable, forged construction, patented technology
Headset Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape Ergon
Saddle Tern GSD by Velo

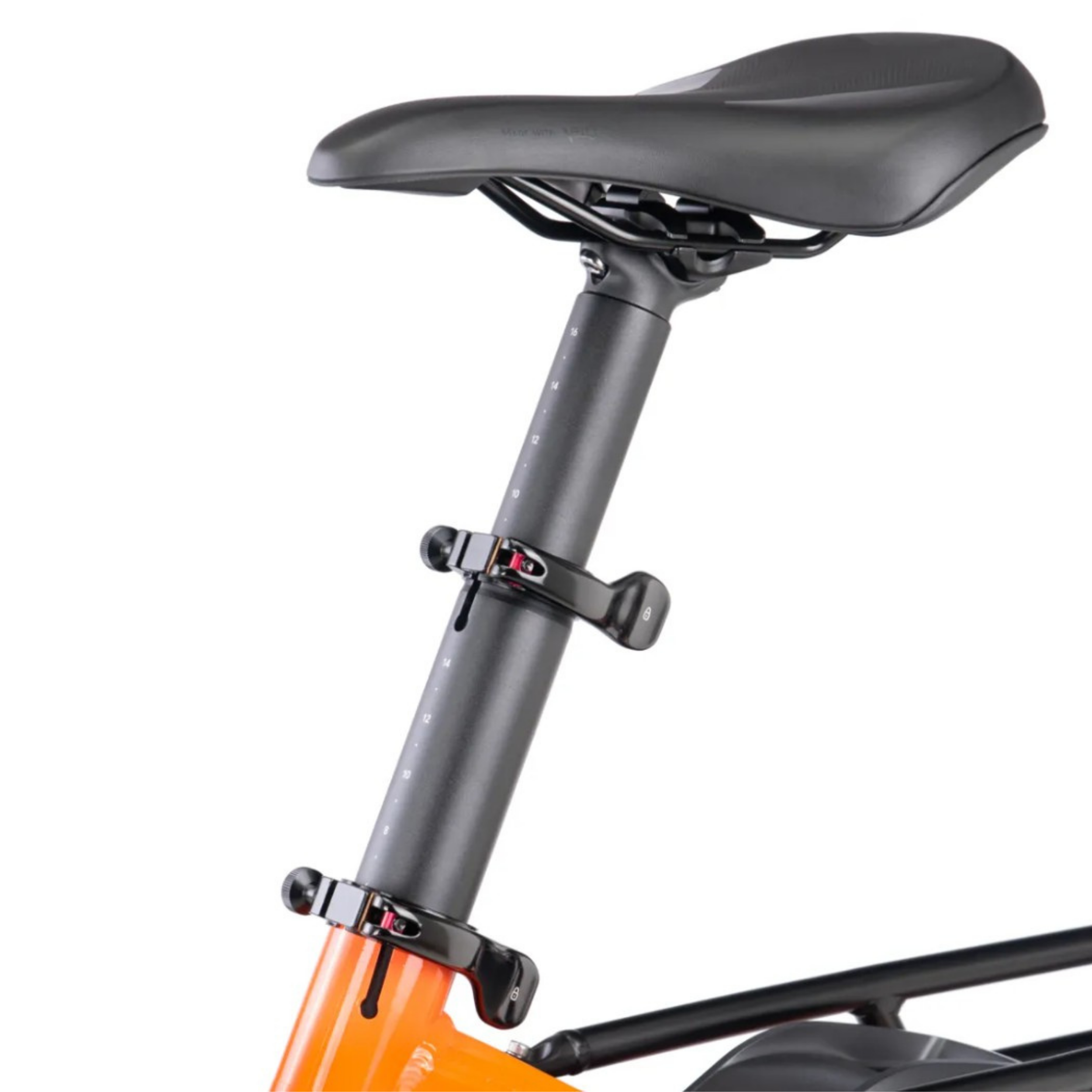

Seatpost Tern VLT (Very Large Telescope) with LightAction levers
Seatpost Clamp Tern Collar
Front Brake Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers Magura MT5 e-stop, hydraulic, with brake light sensor
Brake Cable & Housing Magura, hydraulicWheels
Front Wheel Tern Atlas, heavy duty cargo wheel
Rear Wheel Tern Atlas, heavy duty cargo wheel
Front Hub Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub Enviolo Heavy Duty, 380% continuously variable range, Boost
Spokes & Nipples Stainless steel
Rims Tern Atlas, ultra wide 36 mm, dual reinforced joint
Front Tyre Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex
Rear Tyre Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
Shifter Enviolo, Twist
Crankset Tern GSD, Gates CDX CNC machined beltring
Cassette/Freewheel Gates CDX, precision CNC machined cog
Bottom Bracket Motor integrated
Chain Gates Carbon Drive CDX belt
Pedals Urban with non-slip surface, sealed bearings
Shifter Cable & Housing Jagwire LEX-SL, slick treatment, alloy ferrules

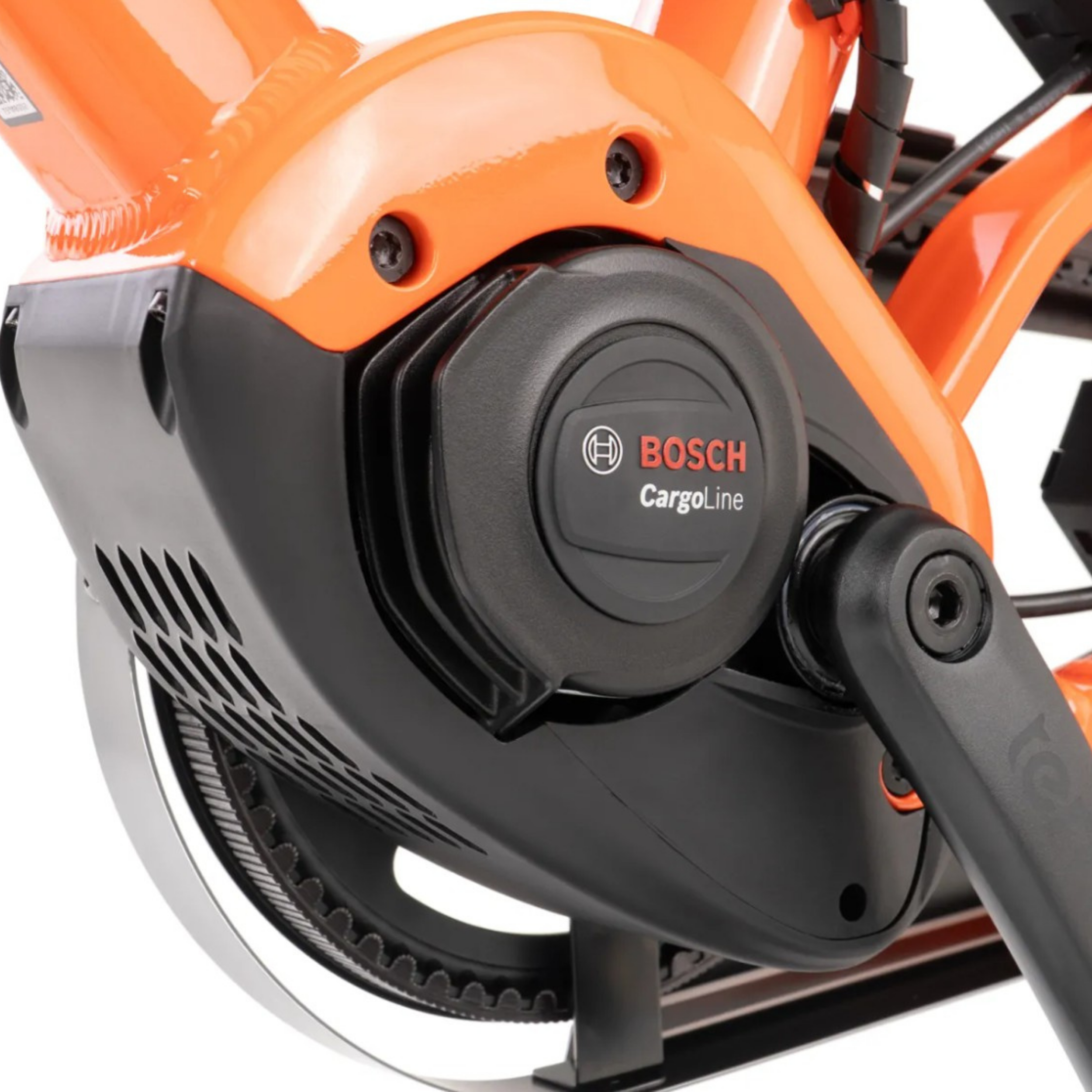

Motor Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU)

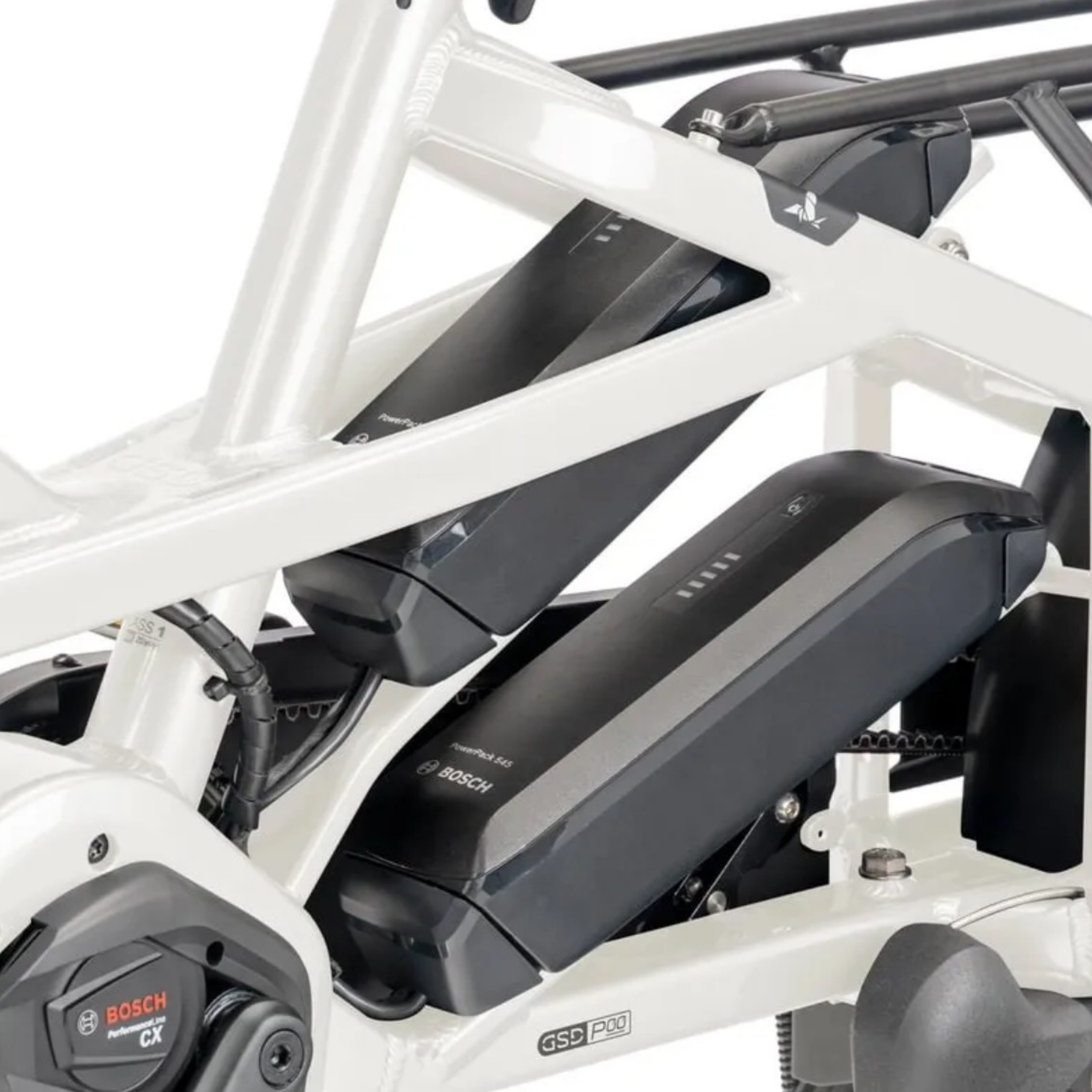

Battery Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity

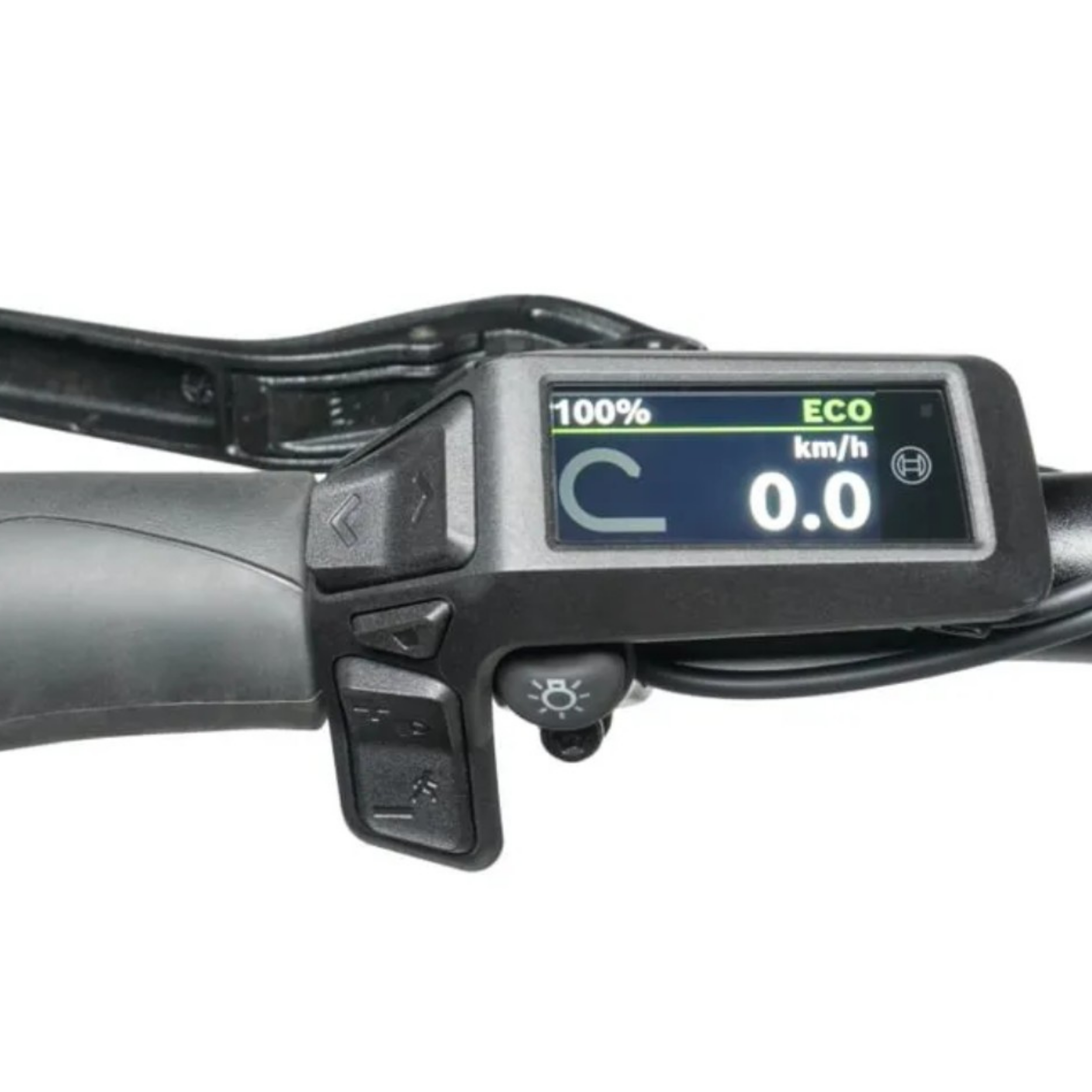

Display Bosch Purion 200, connectivity with Bosch eBike Flow IOS/Smartphone app
Range 545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi)
Charger 220V, 4A (EU)
Bell Pitch Plus, brass
Chainguard Tern GSD, full chain cover

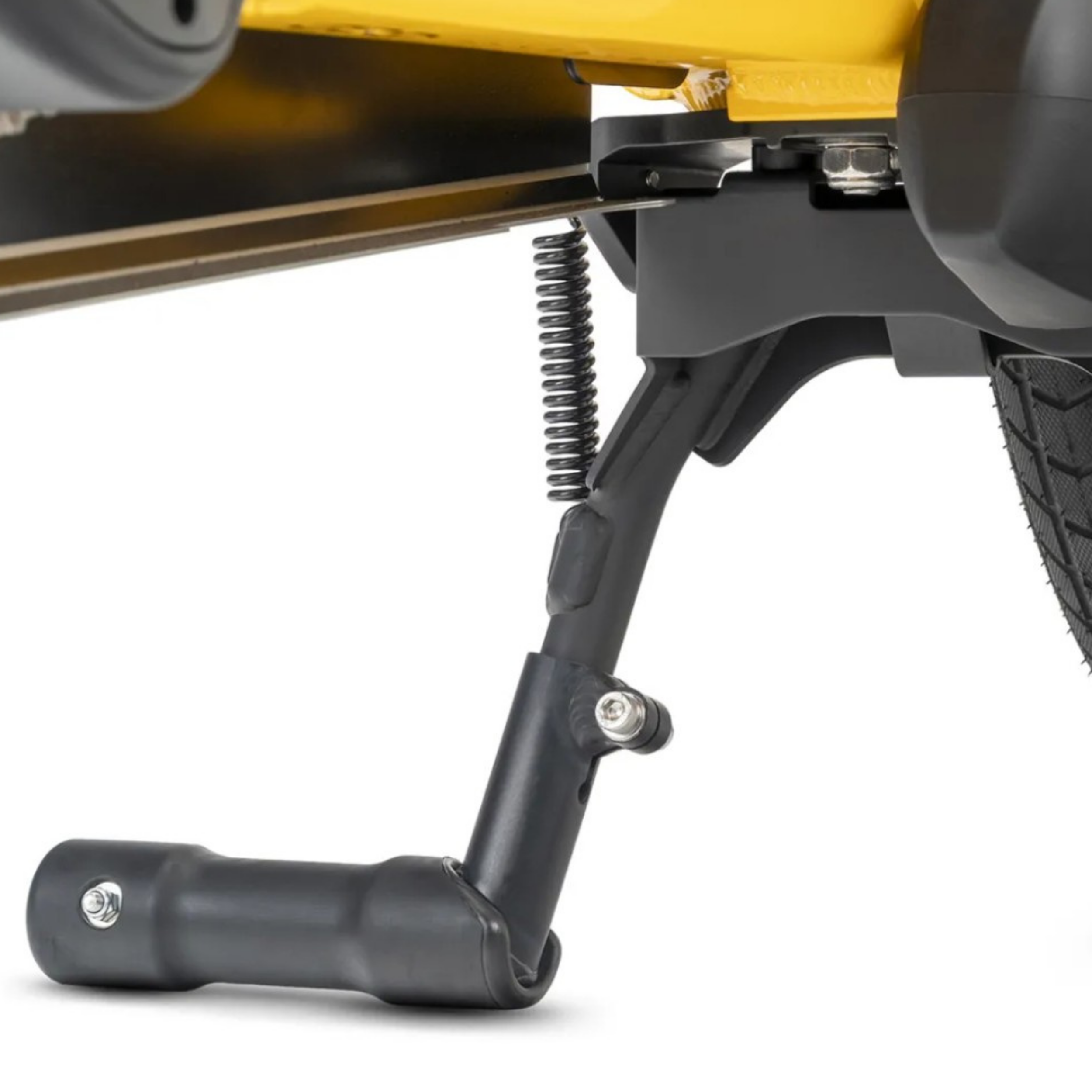

Kickstand Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket Combo Mount
Front Light Ignis Headlight, Ultra wide low beam
Rear Light RearStop Brake Light, Always on
Fenders F: Aluminum R: GSD wheel guard
Rack Atlas G, 100 kg (220 lb) capacity
Frame Lock ABUS or AXA, keyed-alike with Bosch battery
Weight 36.3 kg (80 lb)
Bike Size 191 × 68 × 116 cm (75.2 × 26.8 × 45.7 in)
Wheelbase 135 cm (53.1 in)
Folding Size 182 × 46 × 87 cm (71.7 × 18.1 × 34.3 in)
Max Gross Vehicle Weight 210 kg (463 lb)
Max Load Weight 210 kg (463 lb)
Max Rider Weight 130 kg (286.6 lb)
