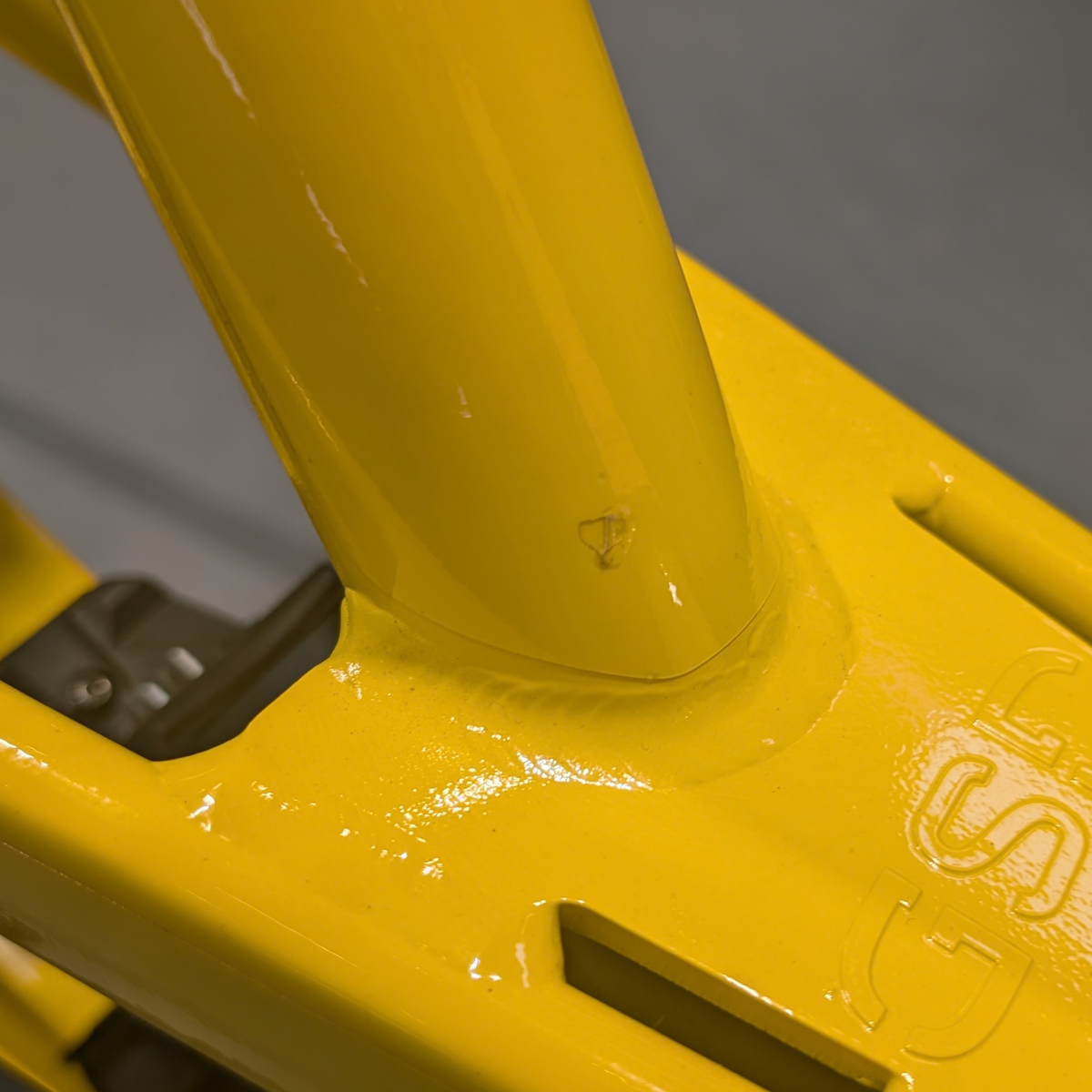

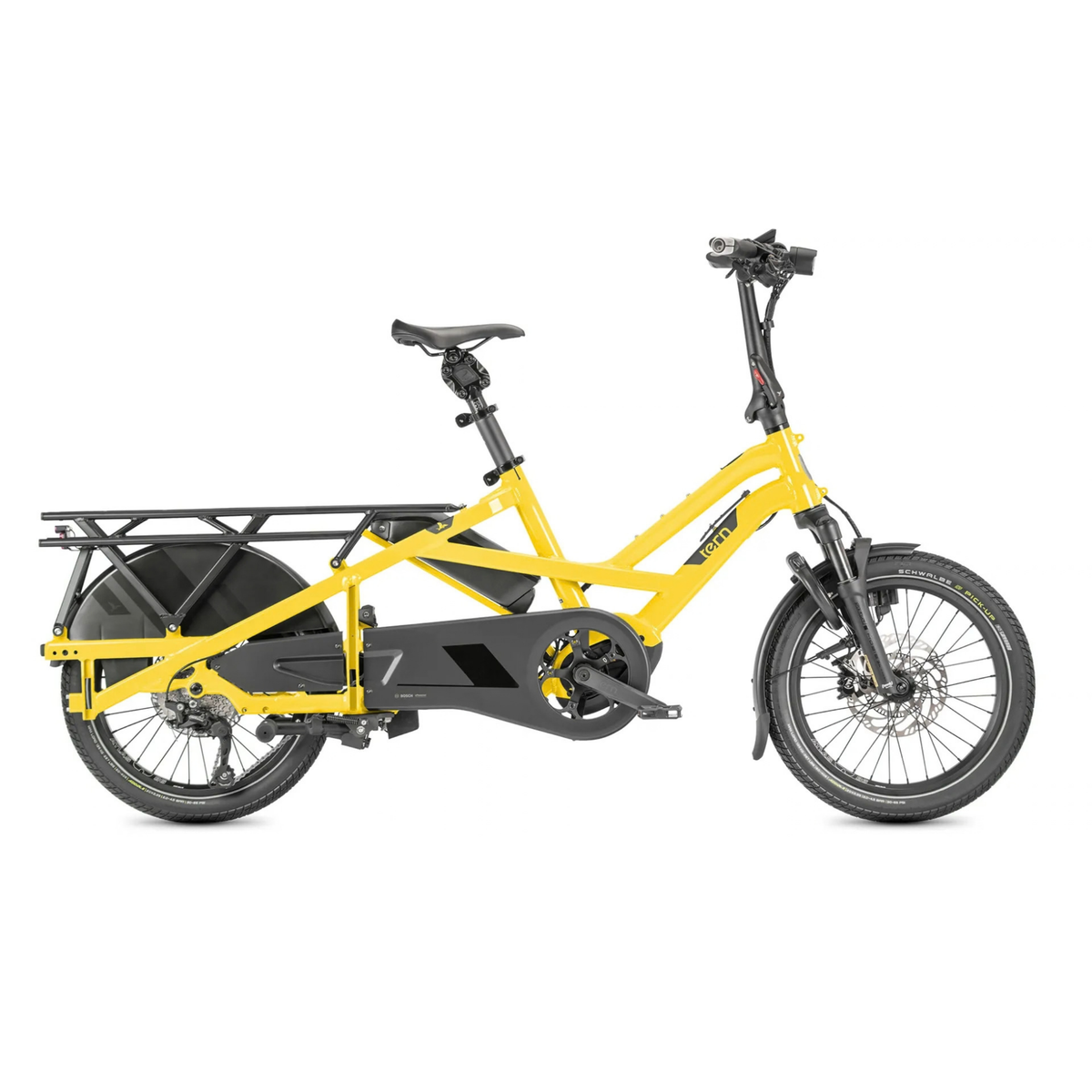

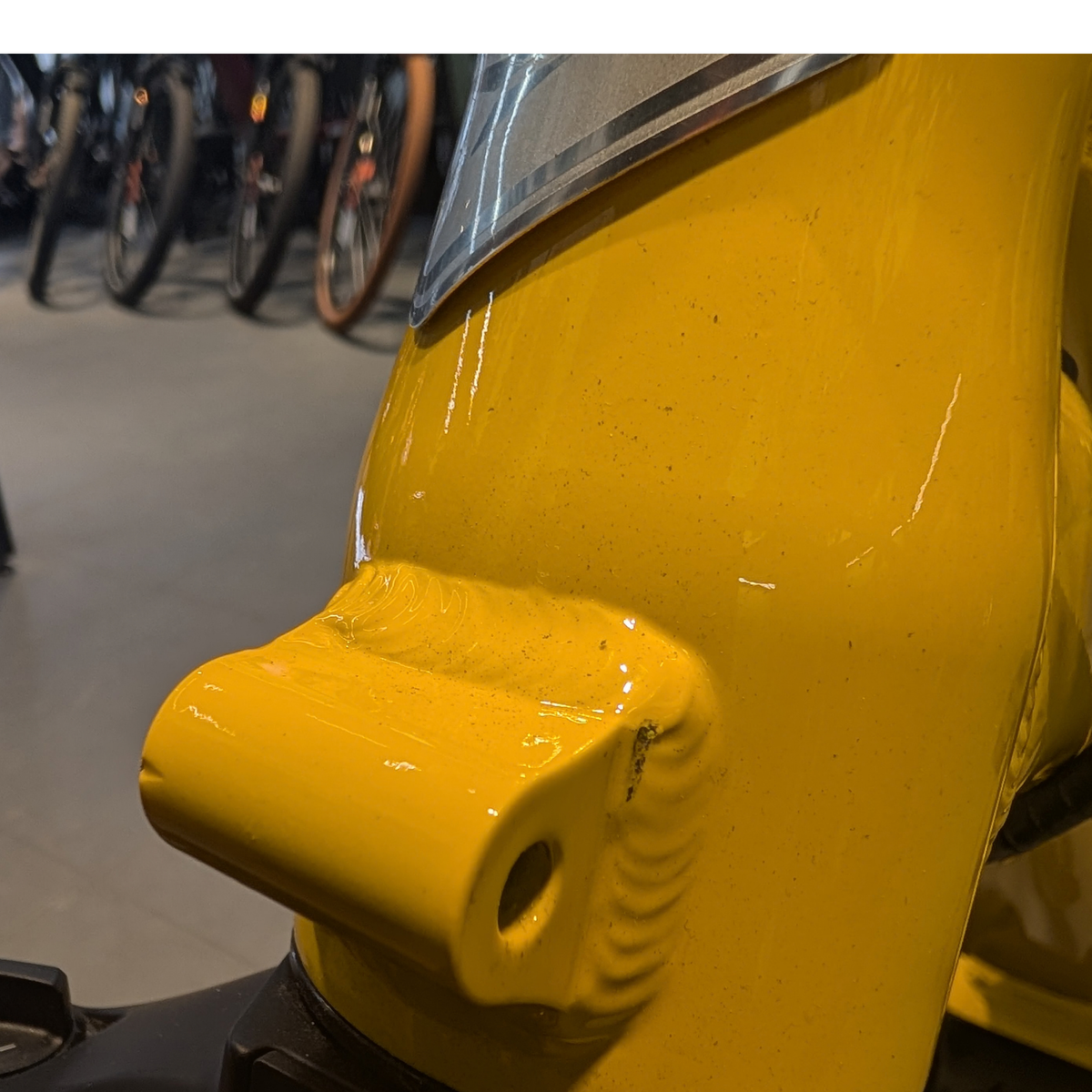

Frame Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg
Handlepost Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mmStem:Tern Andros, adjustable, forged construction, patented technology
Headset Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape Ergon
Saddle Tern GSD by Velo
SeatpostTern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
Seatpost Clamp Tern Collar

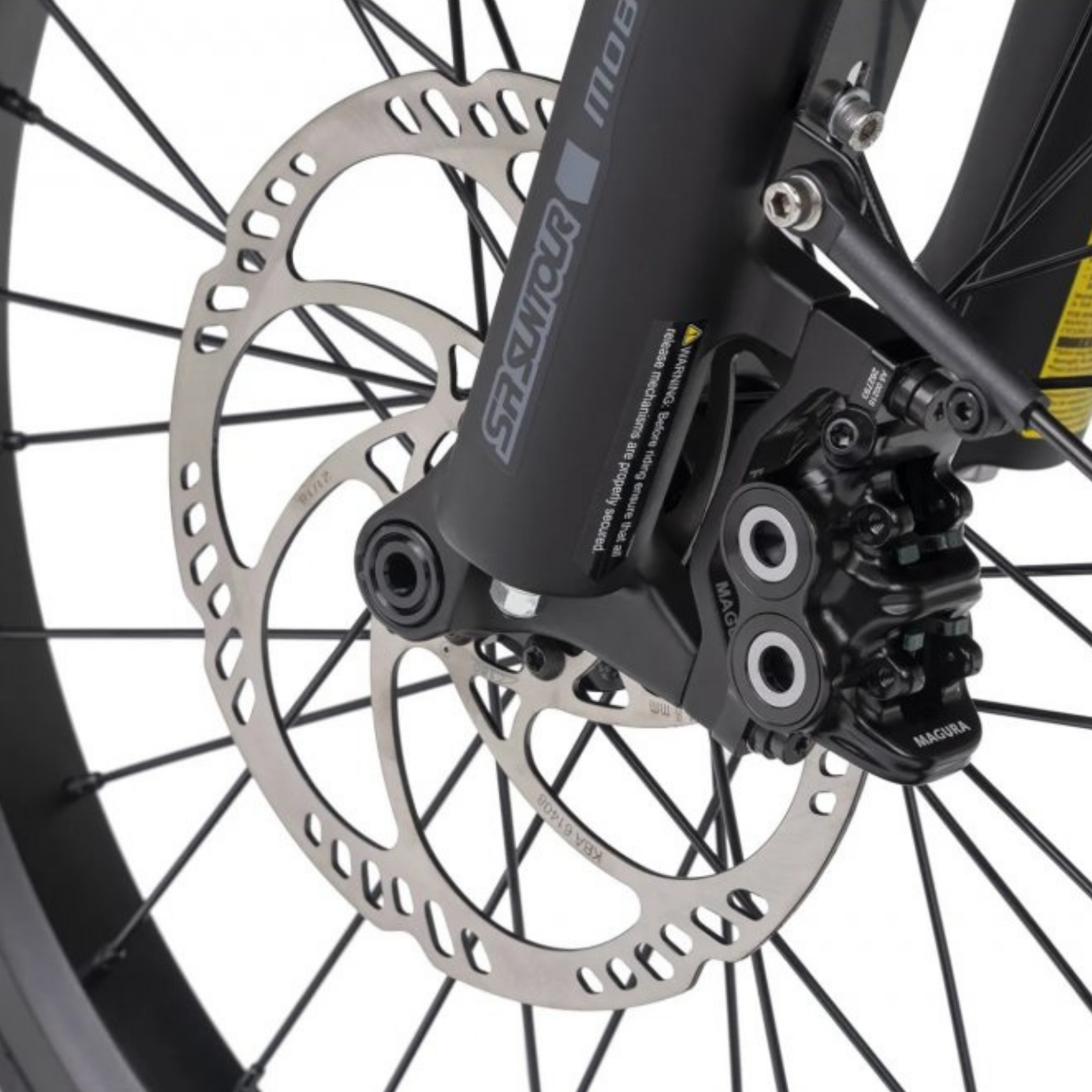

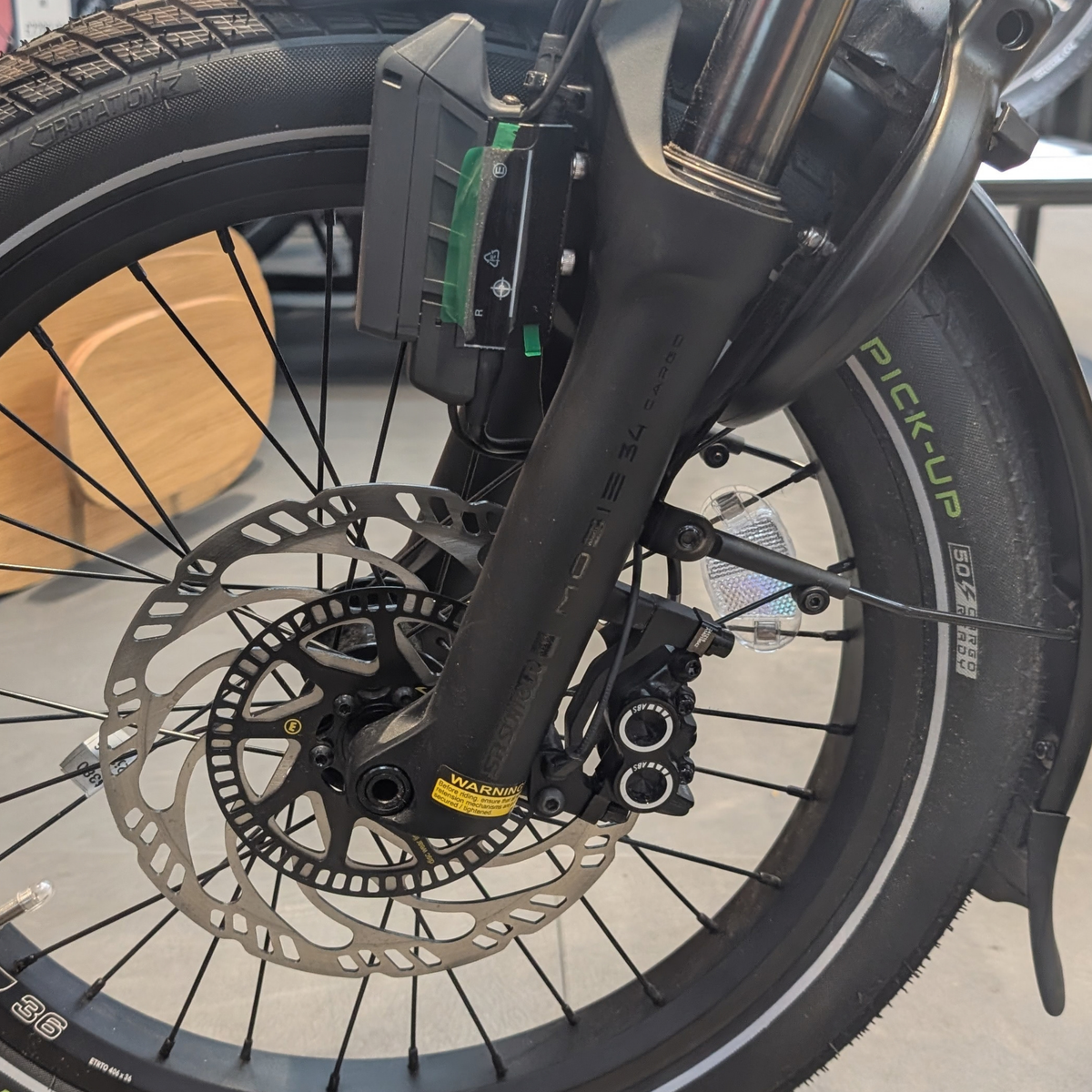

Front Brake Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Rear Brake Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Brake Levers Magura MT-C e-stop, hydraulic, with brake light sensor
Brake Cable & Housing Magura ABS, hydraulic
Front Wheel Tern Atlas, heavy duty cargo wheel
Rear Wheel Tern Atlas, heavy duty cargo wheel
Front Hub Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
Spokes & Nipples Stainless steel
Rims Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex
Shifter Shimano Deore, 1 x 10 spd

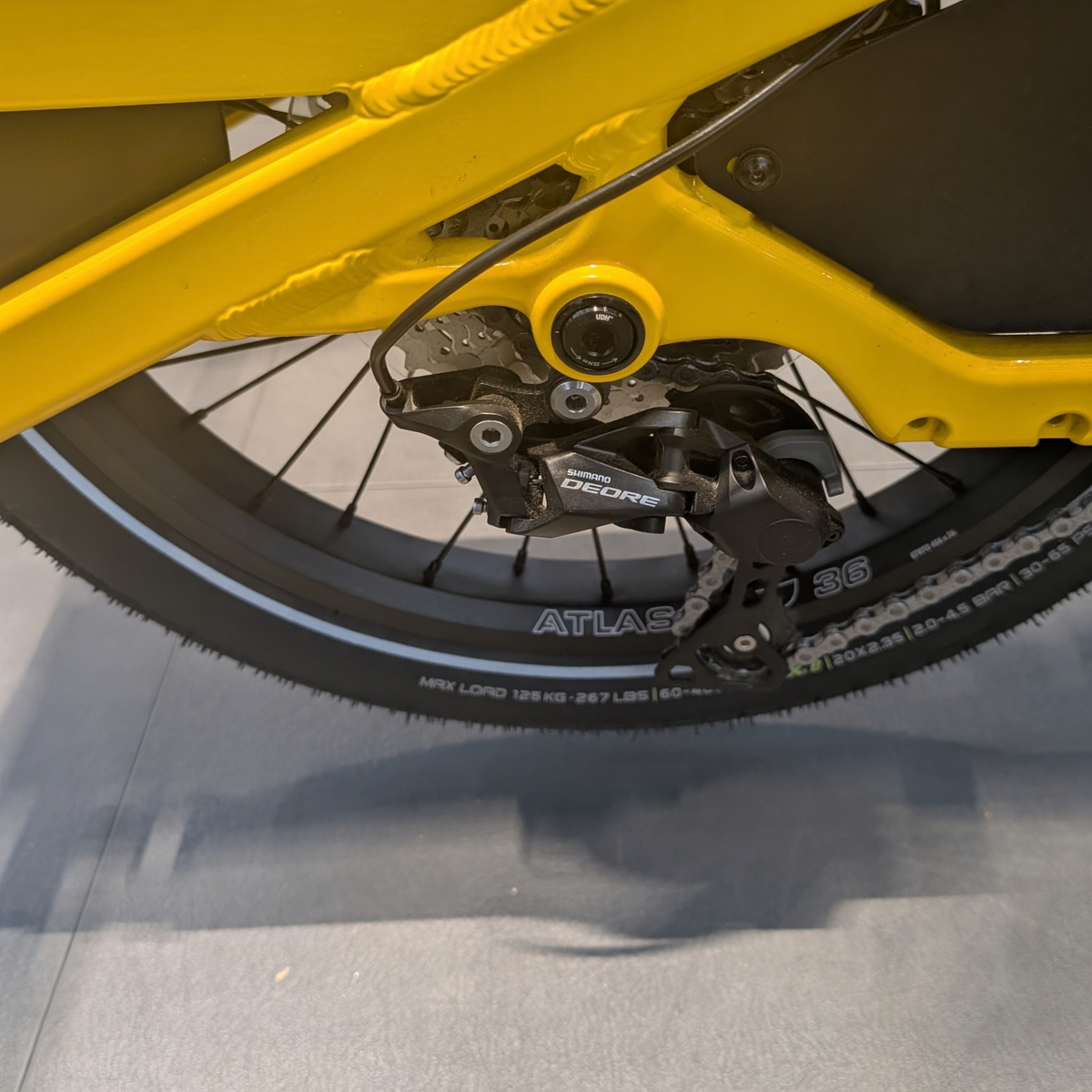

Rear Derailleur Shimano Deore Shadow+
Crankset Tern GSD, forged 6061-AL DH crankarm
Cassette/Freewheel Shimano 11-42T, 10 spd
Bottom Bracket Motor integrated
Chain KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals Urban with non-slip surface, sealed bearings
Shifter Cable & Housing Jagwire LEX-SL, slick treatment, alloy ferrules

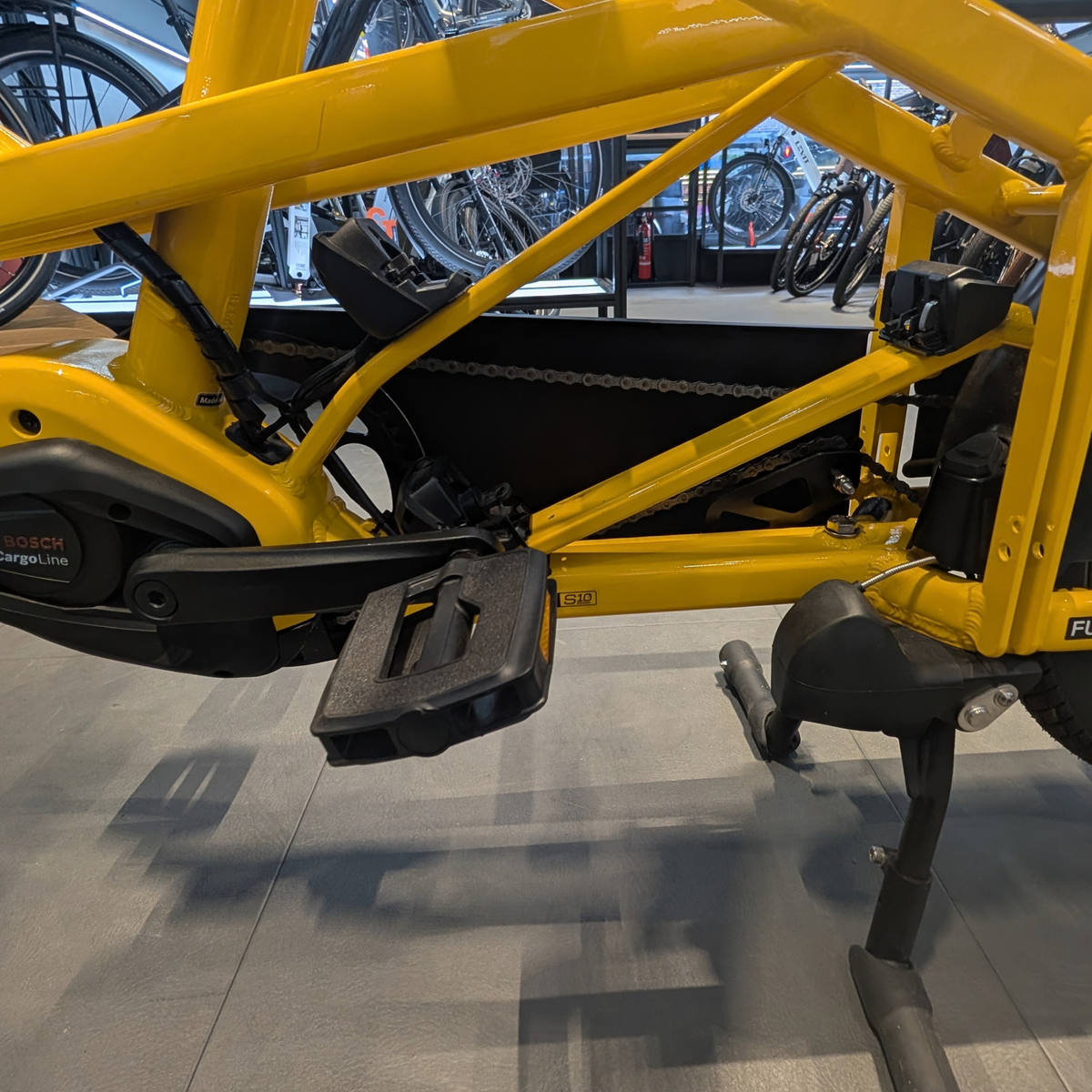

Motor Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity

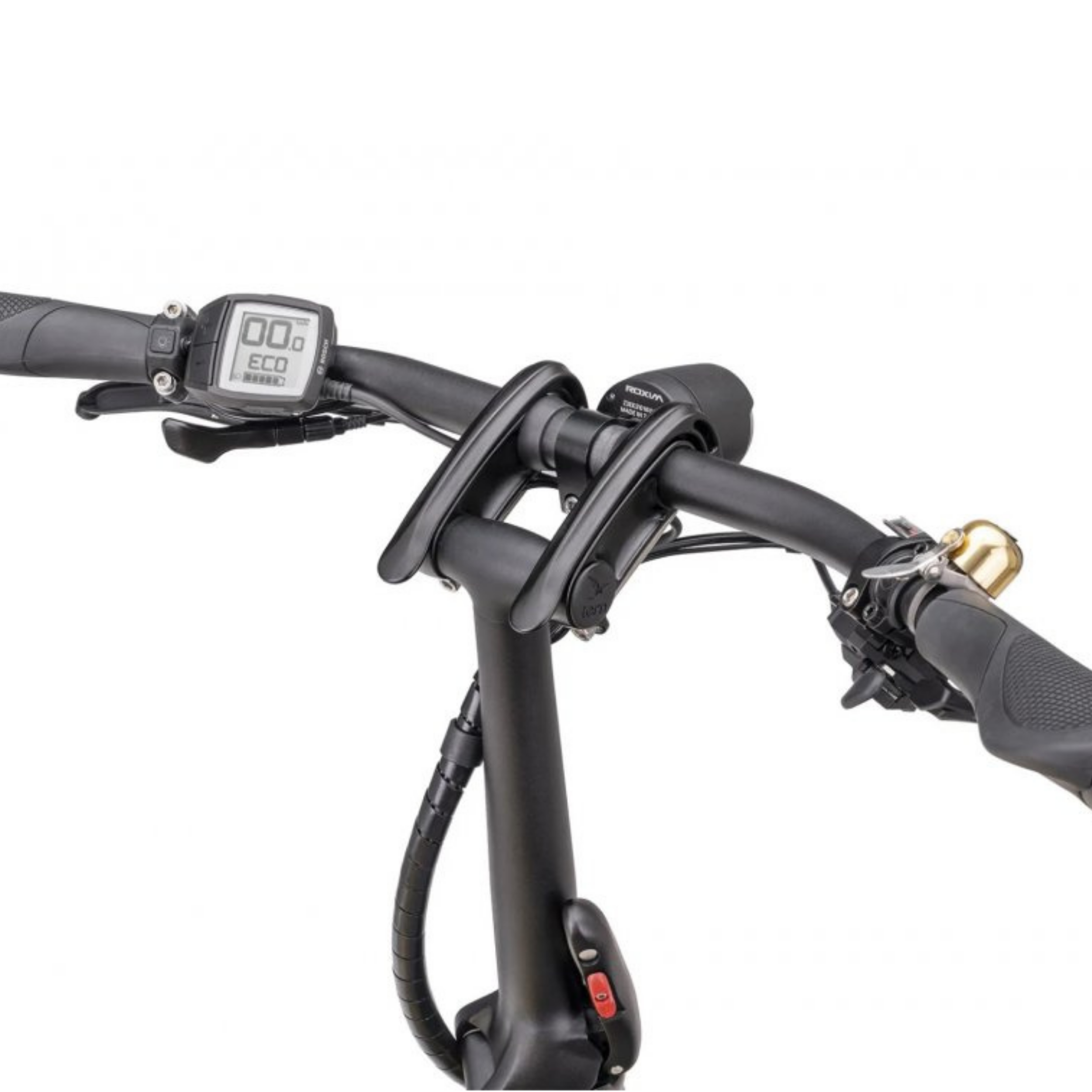

Display Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Smartphone app, electronic bike lock
Range 545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi)
Charger 220V, 4A (EU); 100-240V, 4A (US)
Connect Module Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Anti-Lock Braking System Bosch Anti-Lock Braking System, Gen 2
Bell Pitch Plus, brass

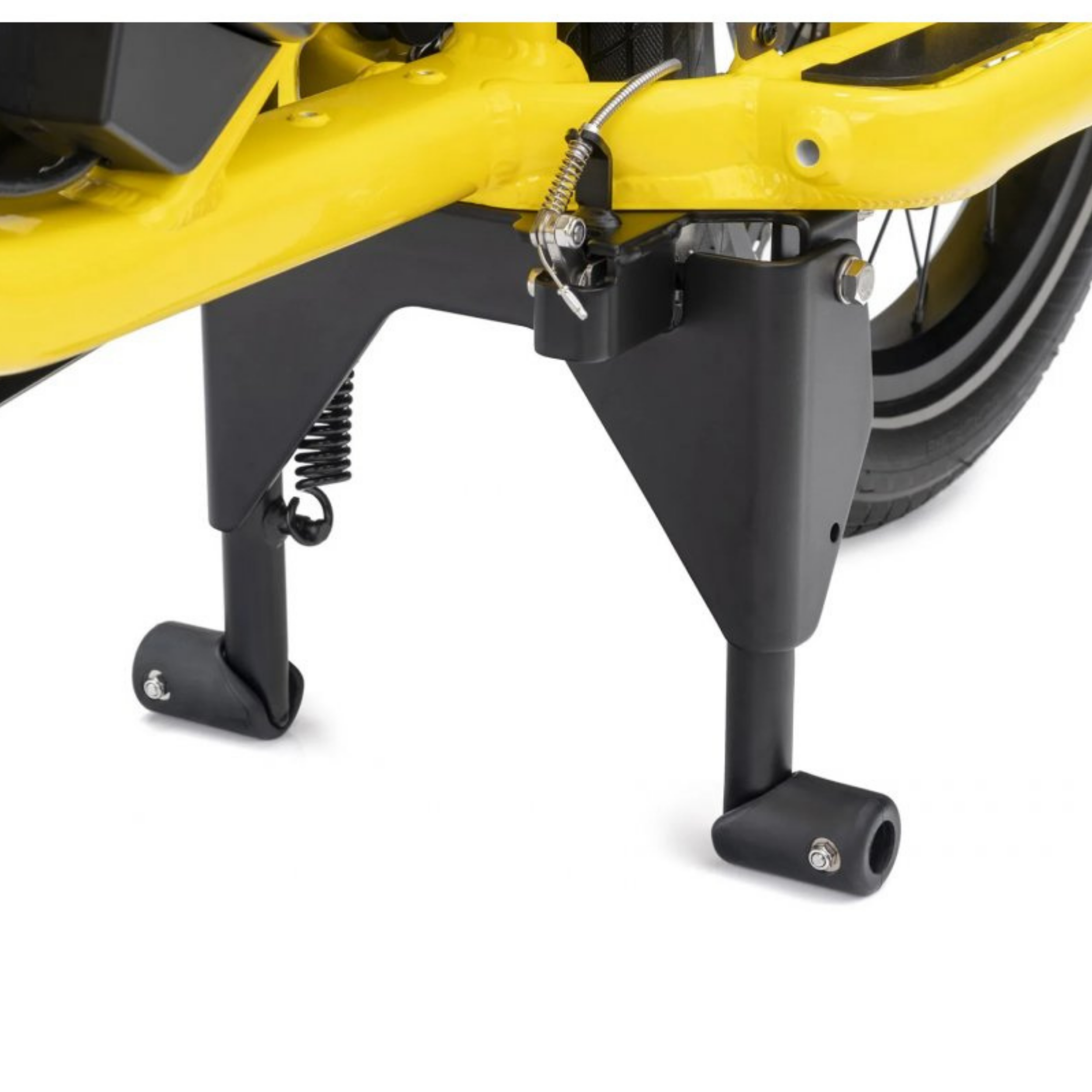

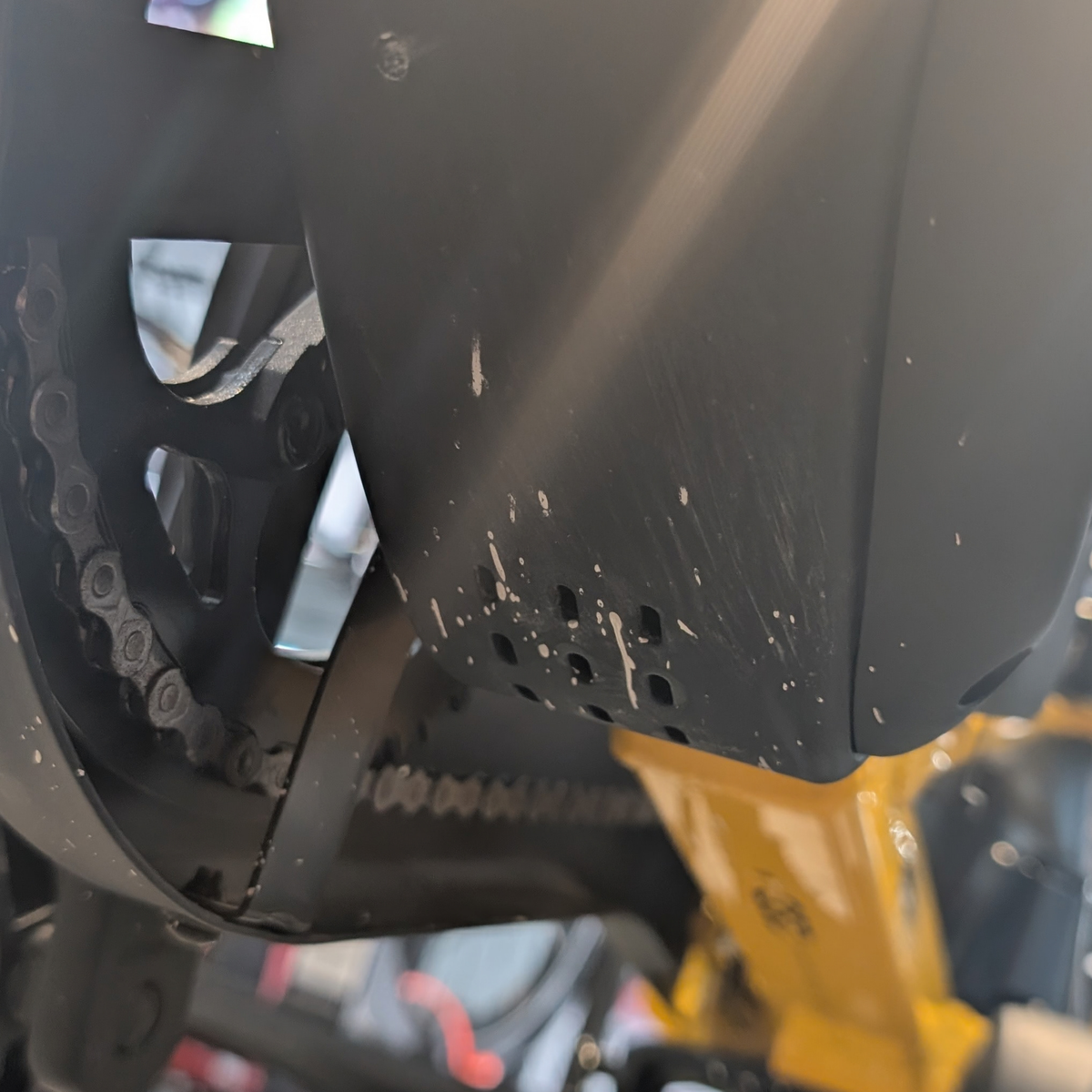

Chainguard Tern GSD, full chain coverKickstand:Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket Combo Mount

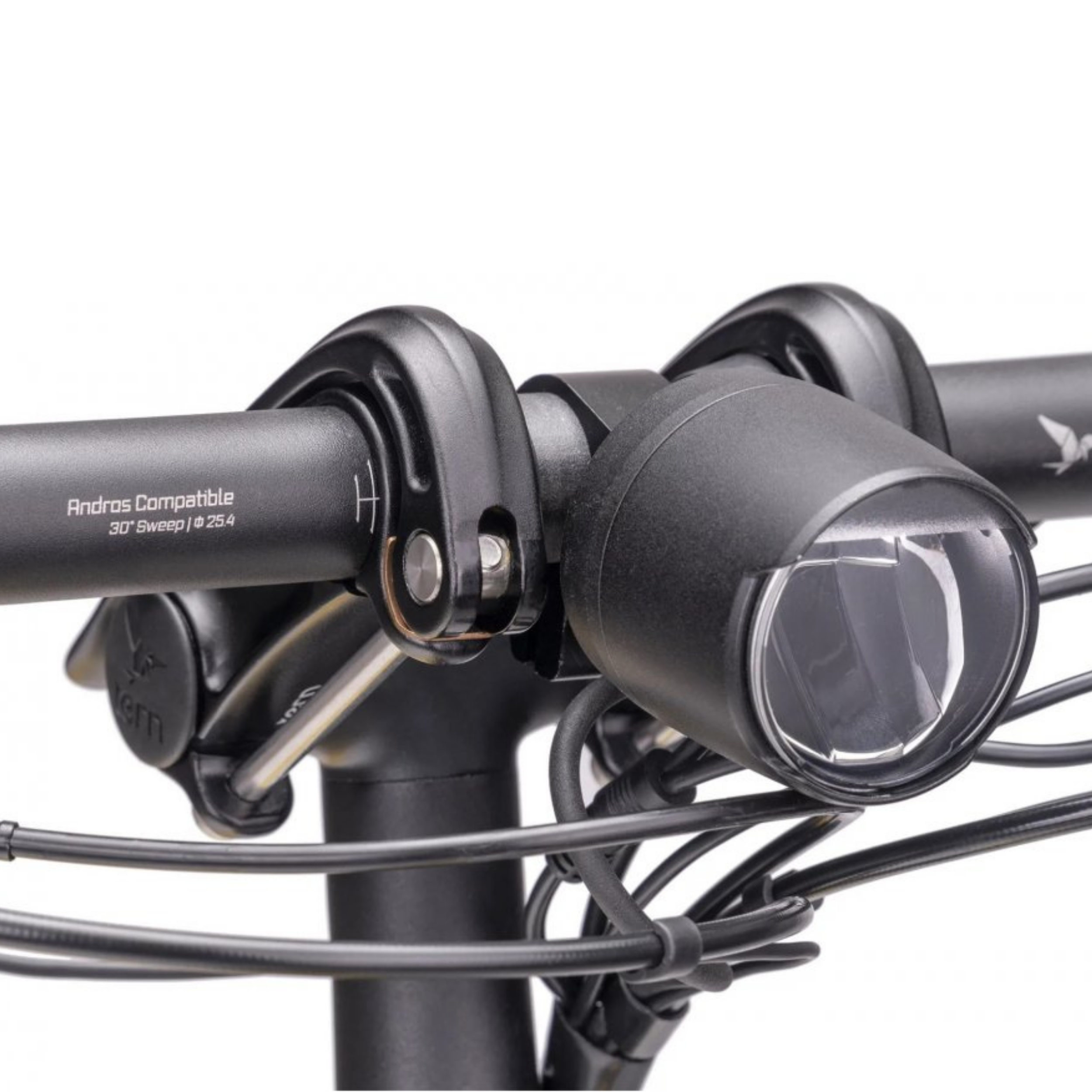

Front Light Ignis Headlight, Hi/Lo beams, 700 lumens
Rear Light RearStop Brake Light, Always on

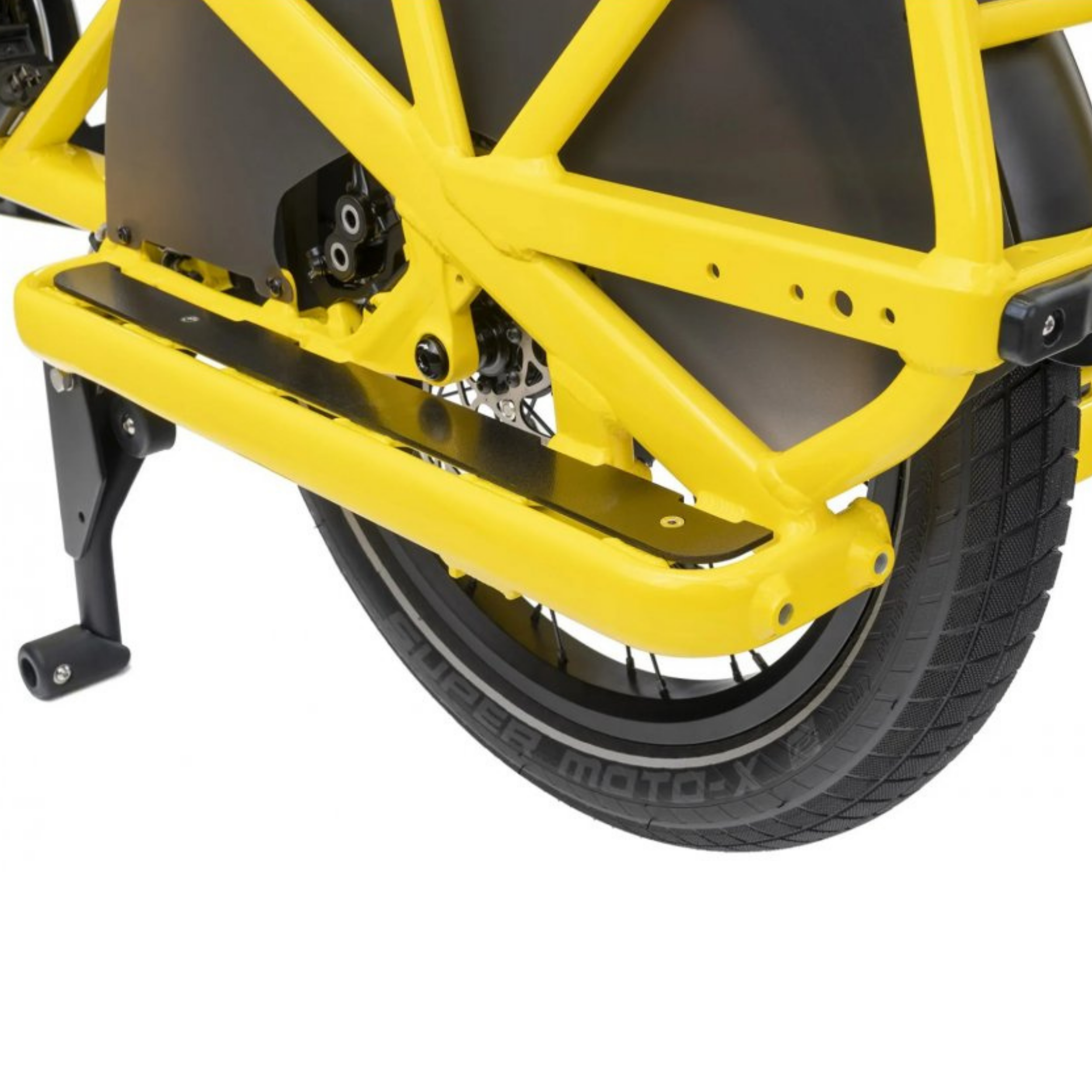

Fenders Aluminum R: GSD wheel guard

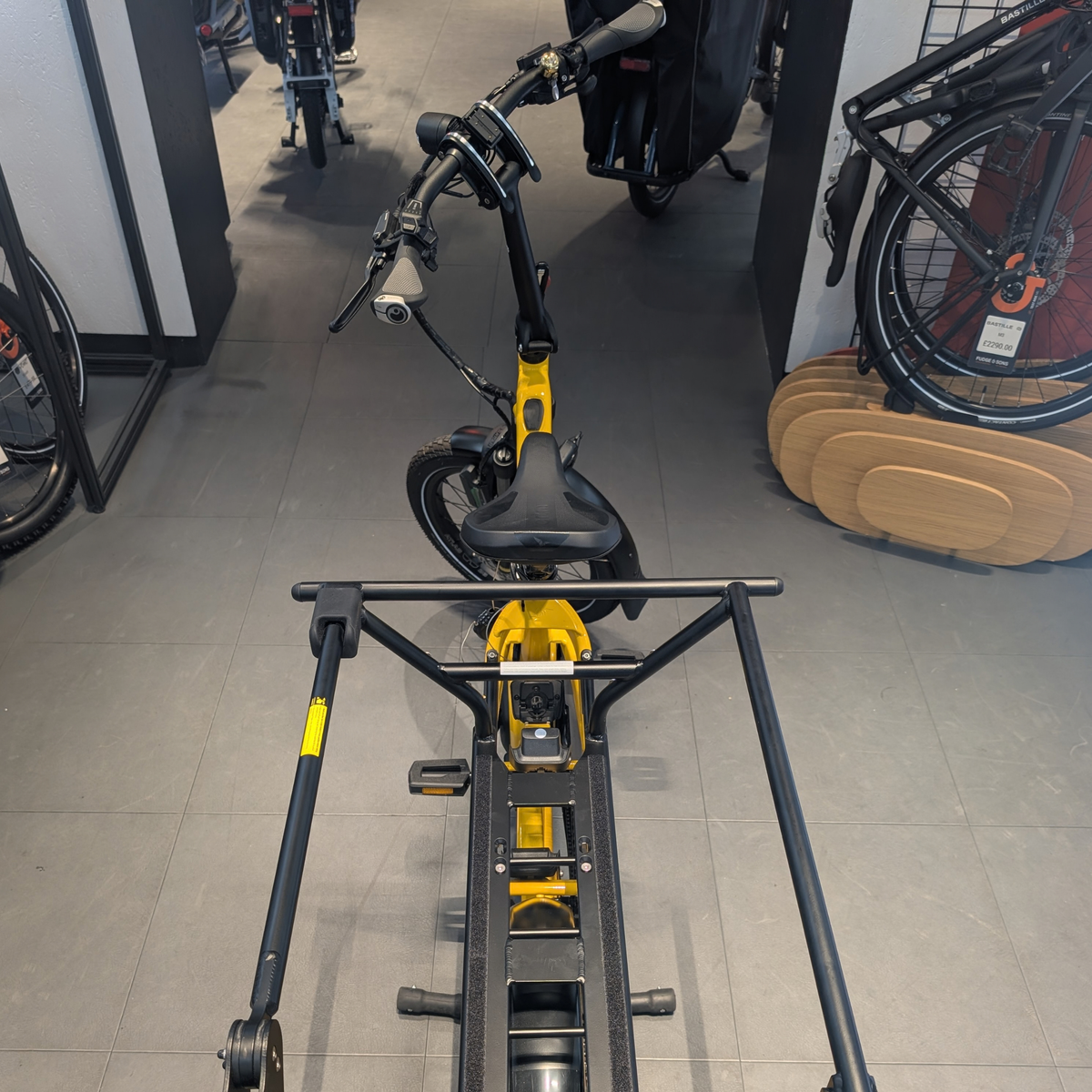

Rack Atlas G, 100 kg (220 lb) capacity
Frame Lock ABUS or AXA, keyed-alike with Bosch batteryOn-board Charging:USB-C, 5V/2.4A, 12W max
