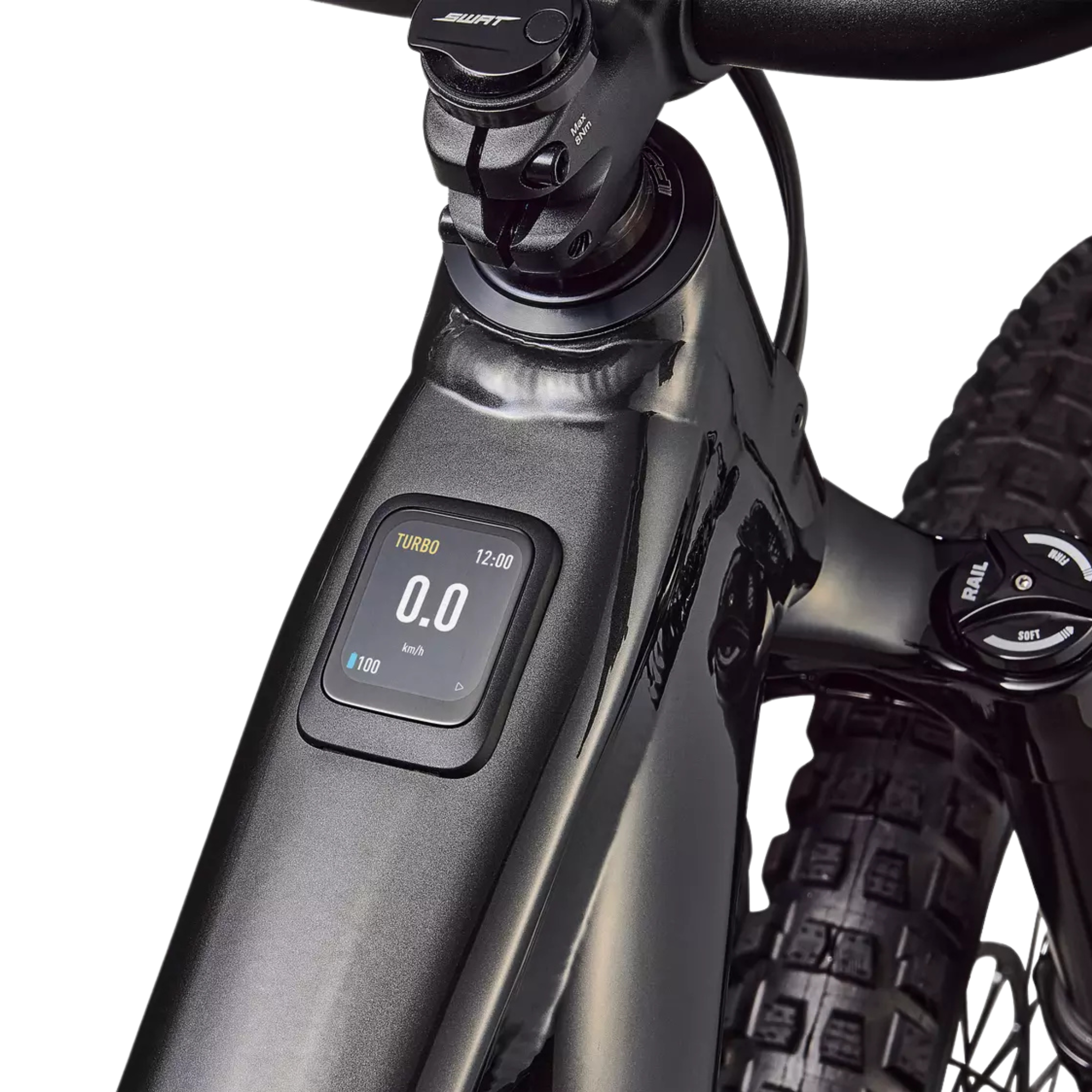

UI/Remote All New MasterMind T3 Display System, 2.2"
high resolution color screen, fully customizeable with Specialized App

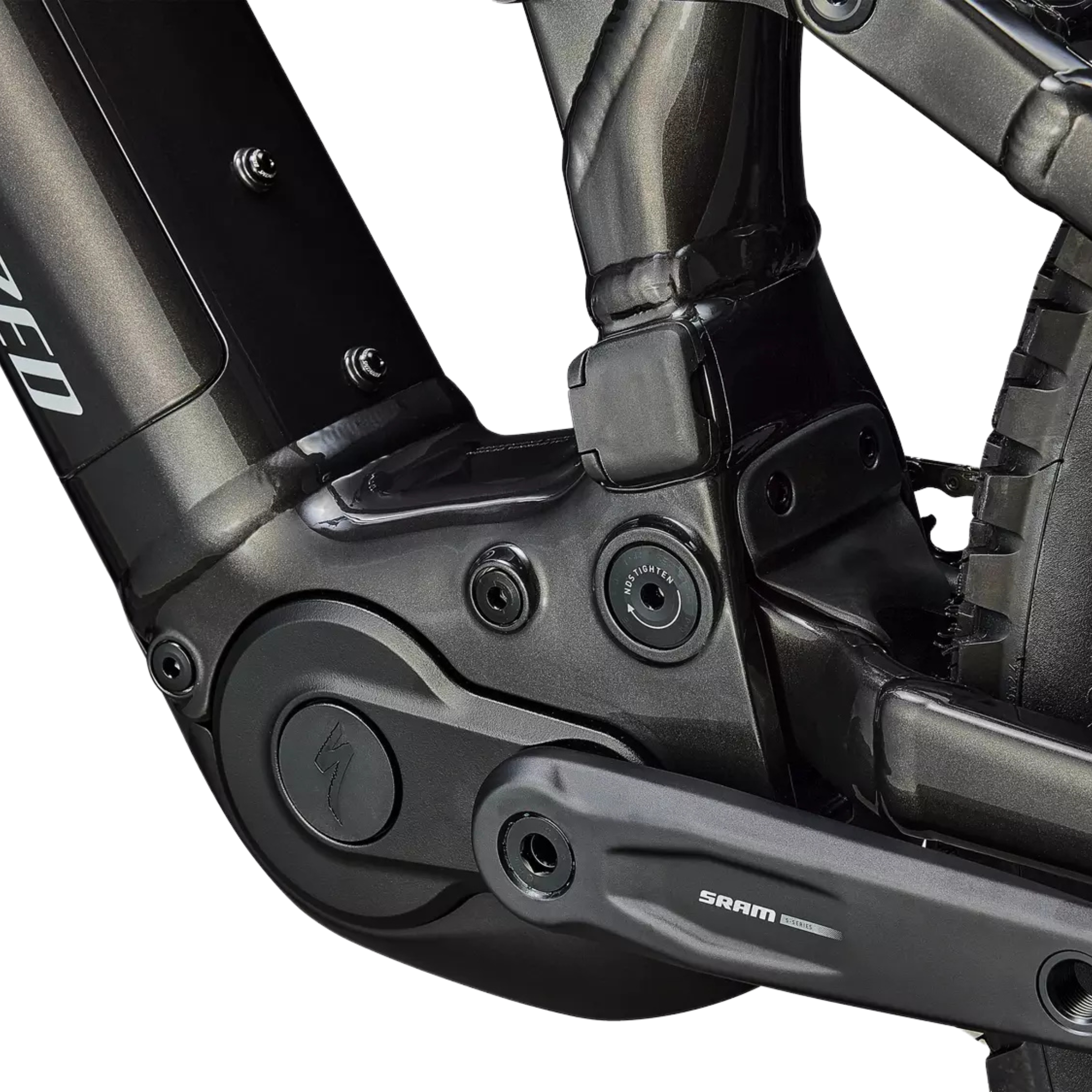

Motor Specialized 3.1 Motor, 101Nm torque, 666Nm power
Charger Specialized 4amp charger
Battery 840Wh battery
Seat Binder Alloy, 38.6mm

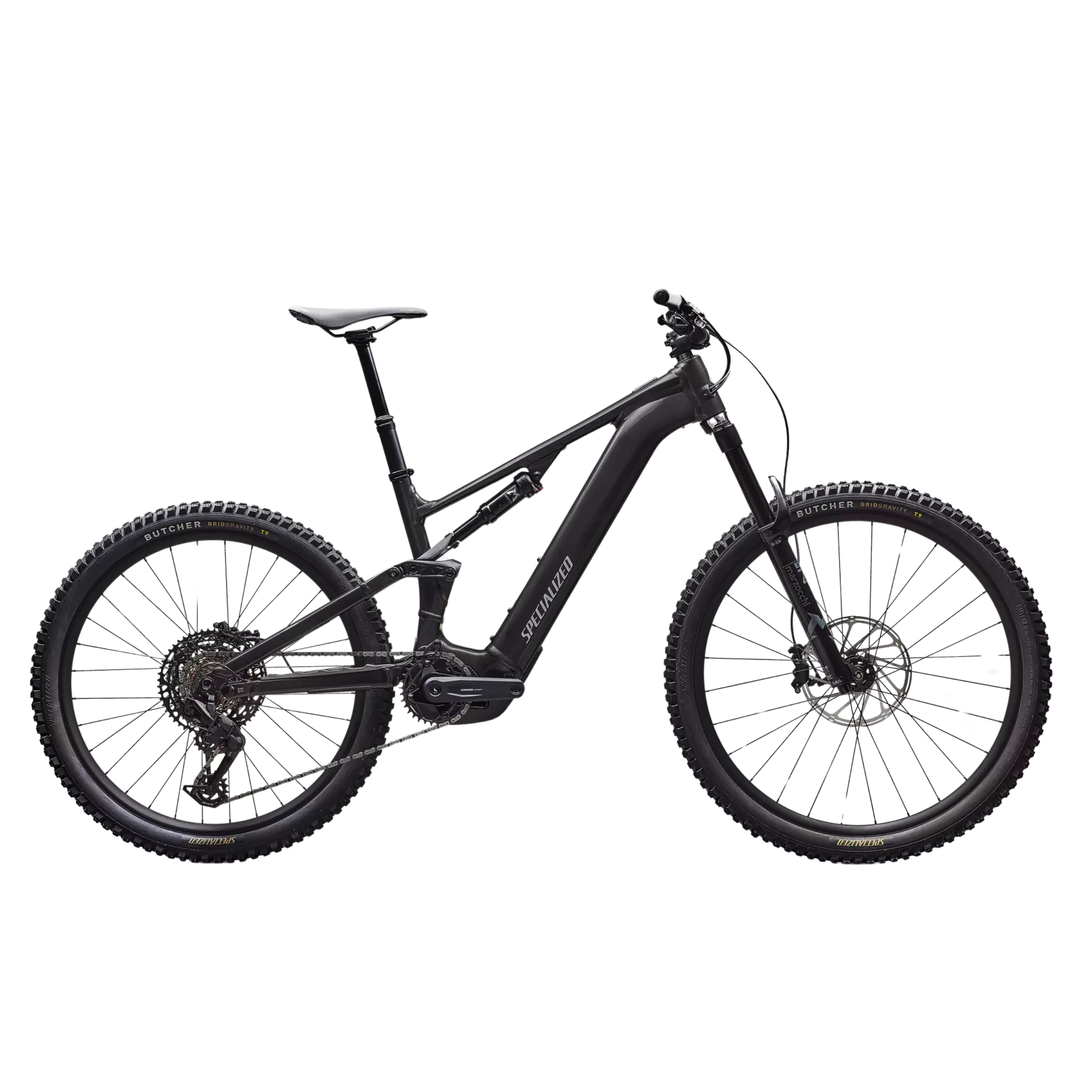

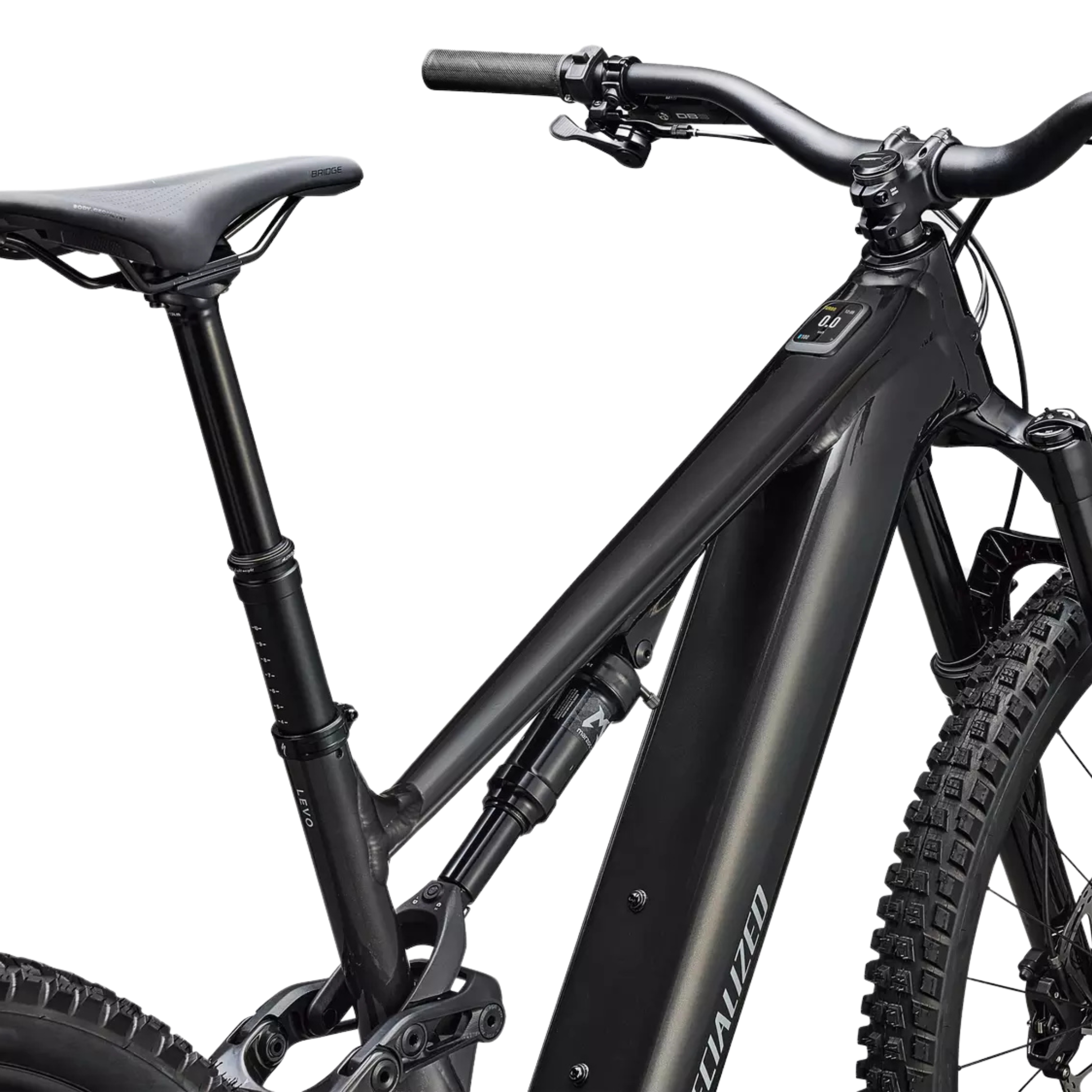

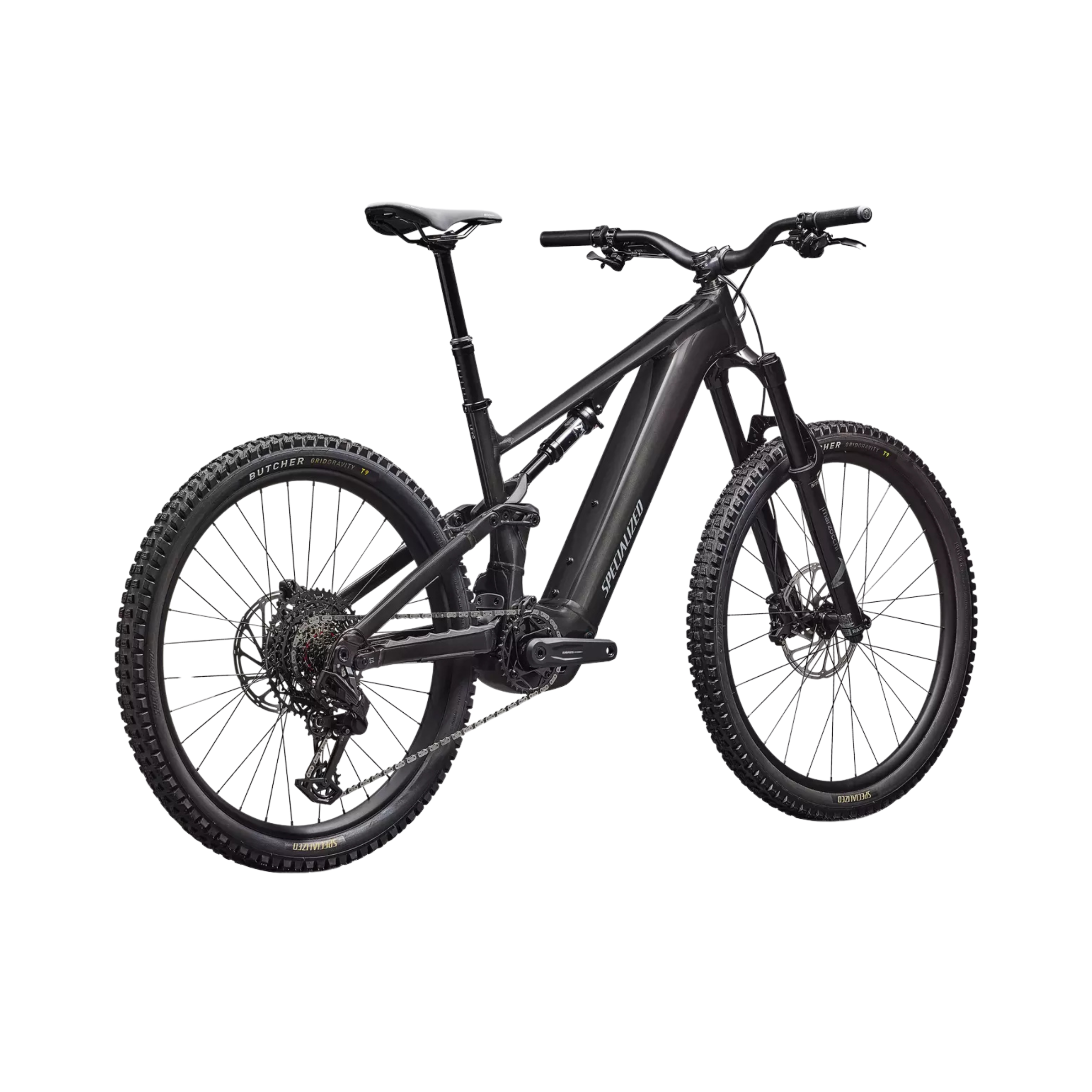

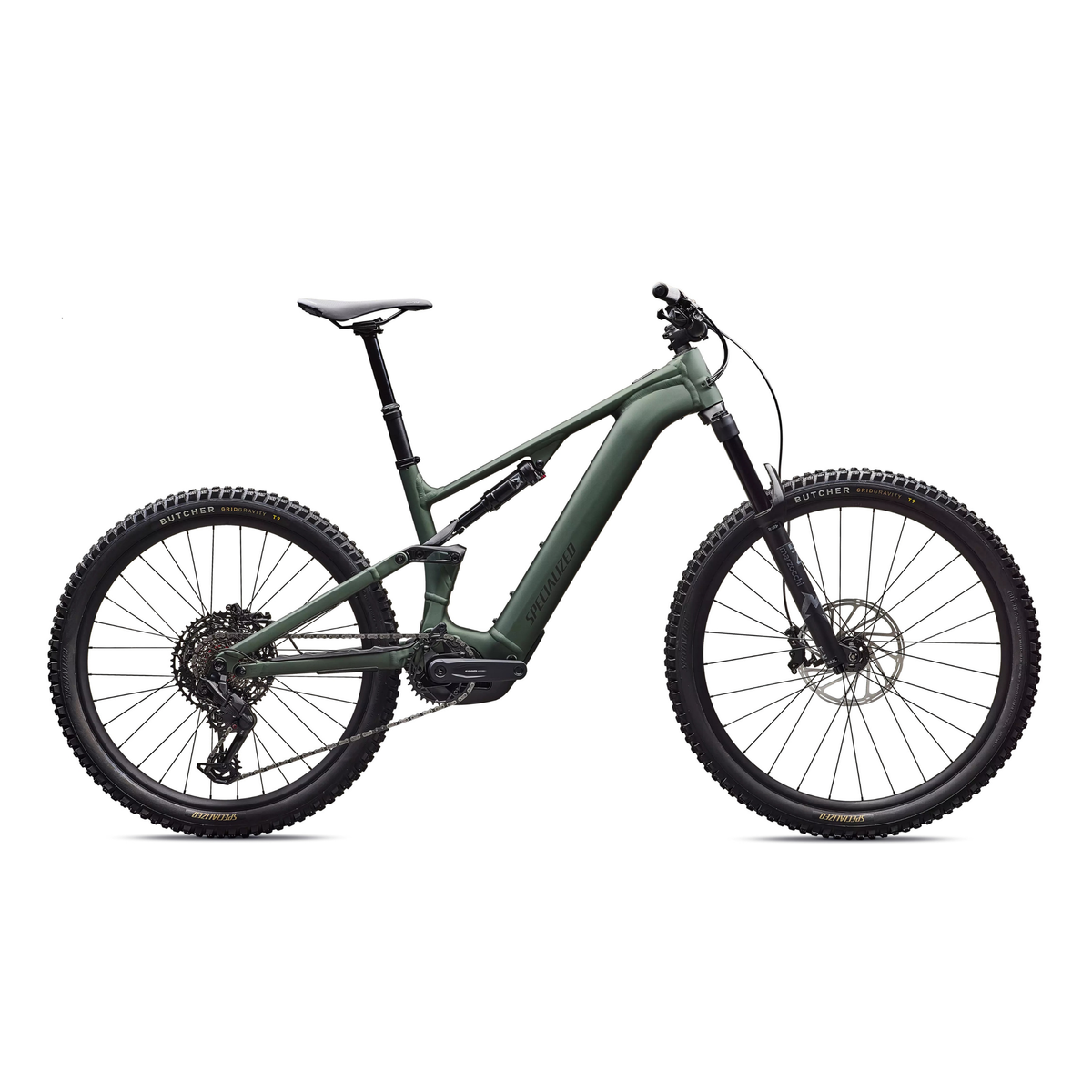

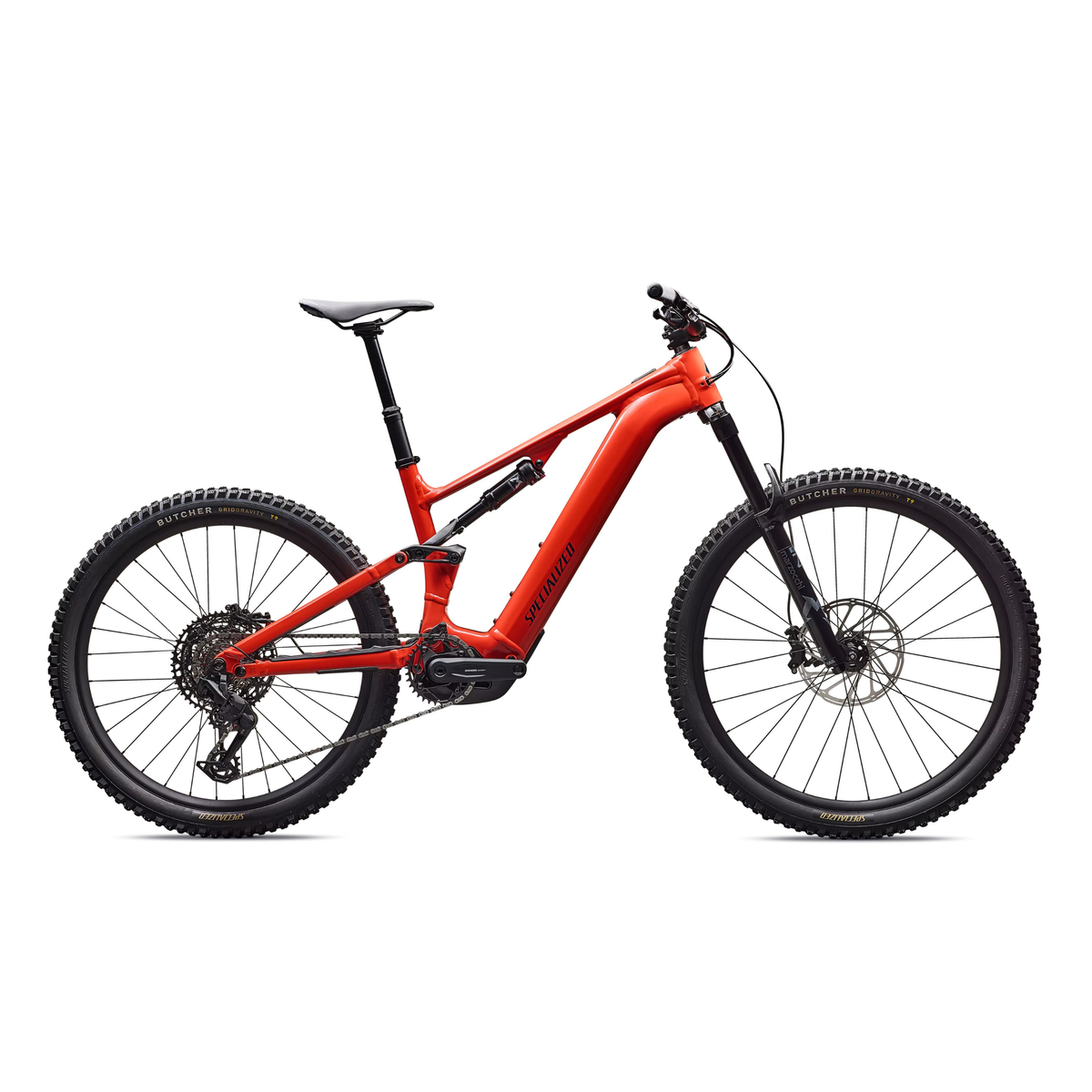

Frame All new Levo 4 M5 Alloy frame, 150mm travel,,
adjustable chainstay, adjustable head tube angle, adjustable bottom bracket,
internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear
wheel, fork travel up to 180mm

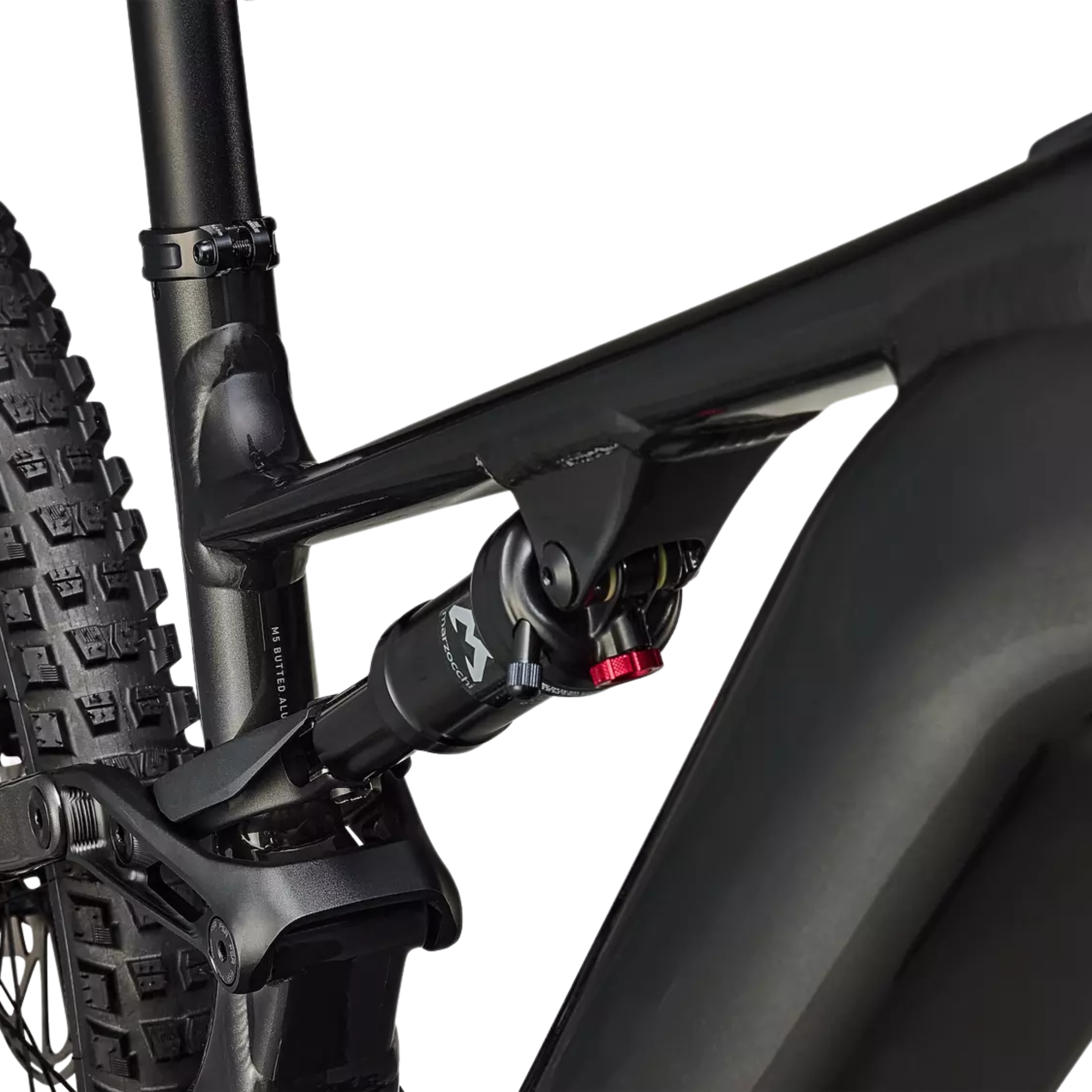

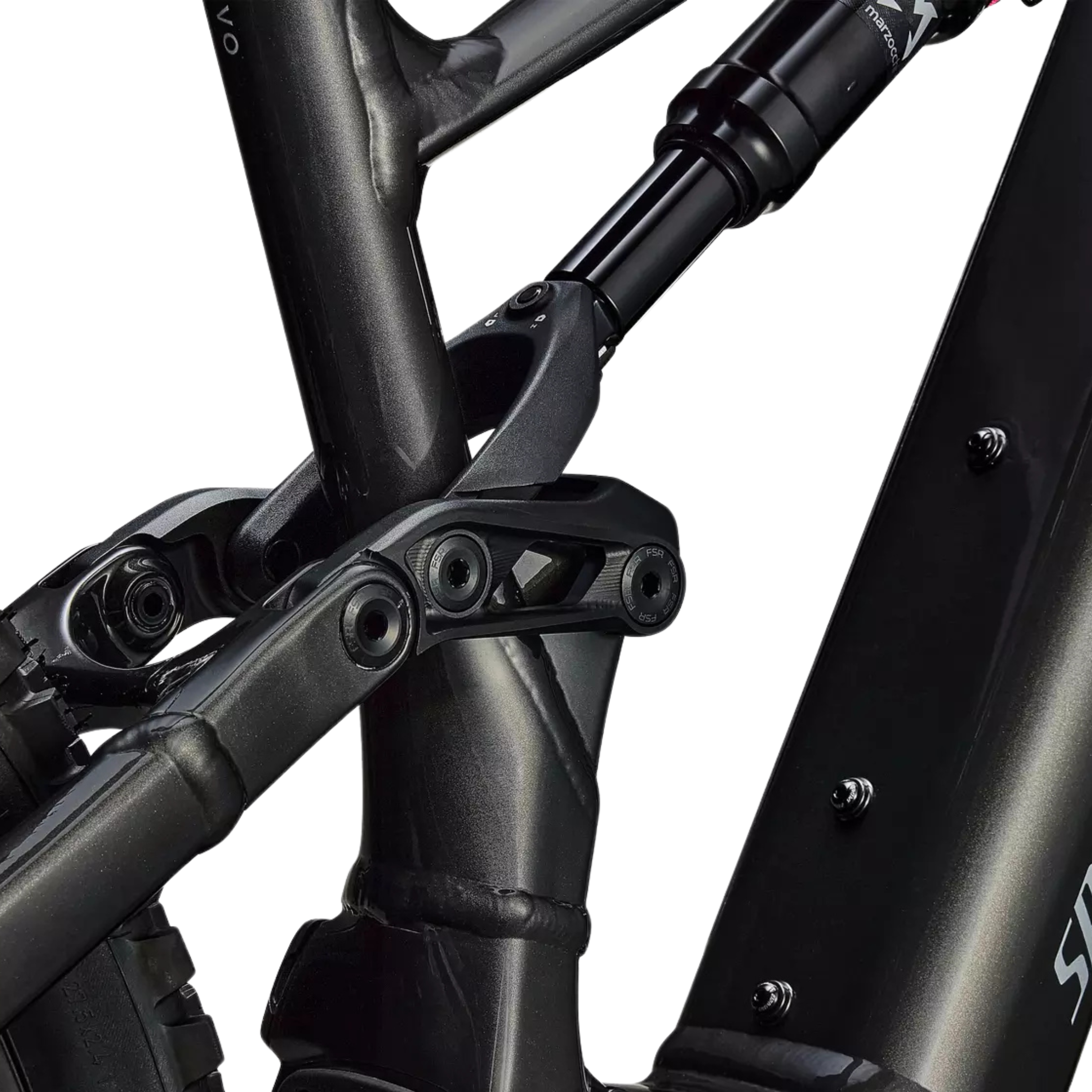

Rear Shock Marzocchi Bomber Inline, EVOL LV air sleeve,
rebound adjust, 210x55mm
Fork Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1:
150mm, sweep adjust compression
Front Brake SRAM DB8 Stealth, 4-piston caliper,
hydraulic disc, 220mm Centerline rotor
Rear Brake SRAM DB8 Stealth, 4-piston caliper, hydraulic
disc, 200mm Centerline rotor
Cassette - XS-1270, 12-speed, 10-52t
Chainrings SRAM 34t T-Type chainring, 104 BCD, steel
Chain SRAM Eagle 70 T-Type Flattop Chain
Rear Derailleur SRAM Eagle 70 T-Type
Shift Levers SRAM 70 trigger, 12-speed, single click
Crankset SRAM S1000 Crankset, ISIS Interface, Integrated
Guard, 55mm Chainline, 155mm
Rear Tyre Butcher, GRID GRAVITY casing, GRIPTON® T9
compound, TLR, 27.5x2.4"
Front Tyre Butcher, GRID GRAVITY casing, GRIPTON® T9
compound, TLR, 29x2.4"
Spokes DT Swiss Elemental
Front Hub Alloy, sealed cartridge bearings, 15x110mm
thru-axle, 28h
Rear Hub Alloy, sealed cartridge bearings, 12x148mm
thru-axle, 32h
Rims Specialized, hookless alloy, 30mm inner width,
tubeless ready
Inner Tubes Standard, Presta Valve

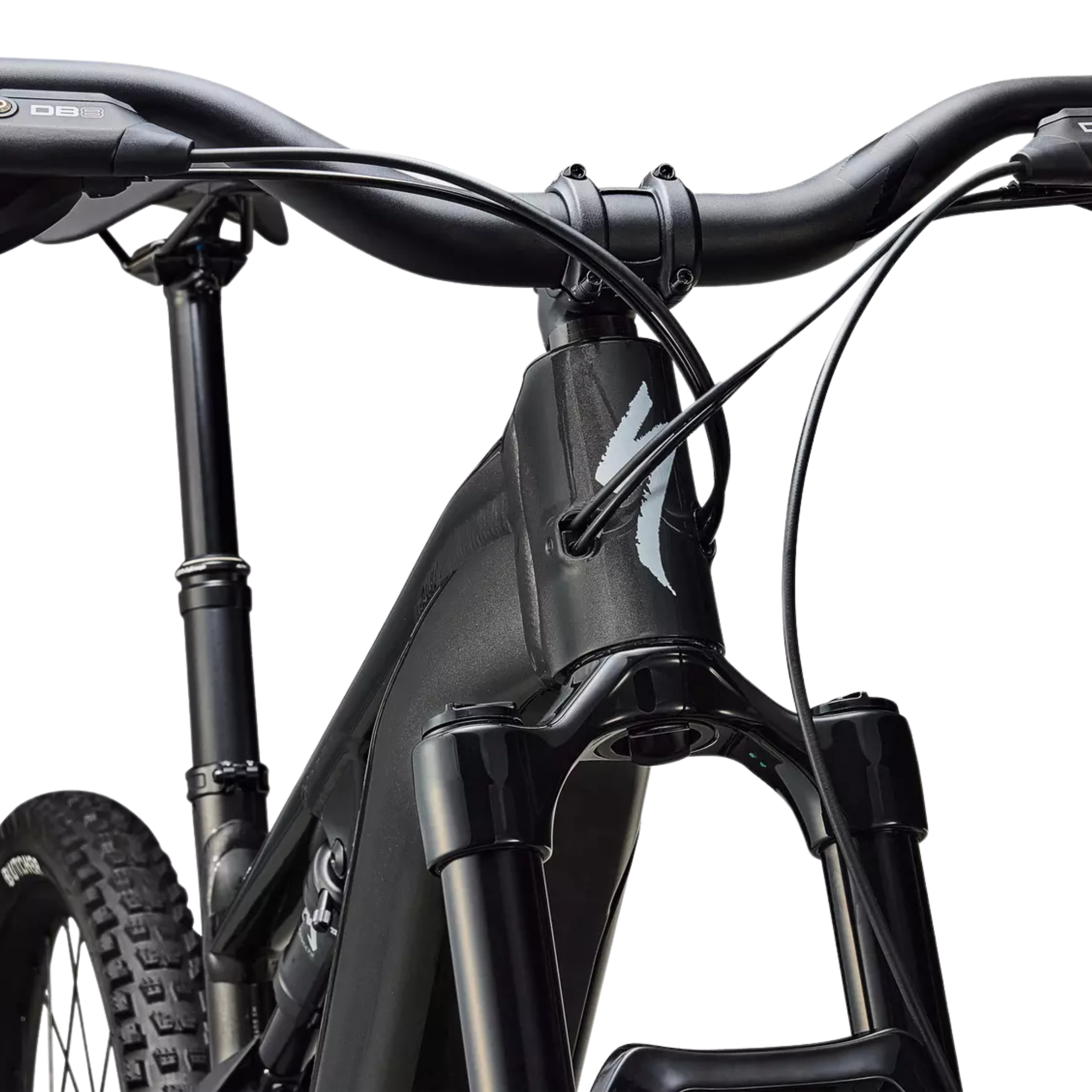

Stem Alloy Trail Stem, 35mm bar bore
Handlebars Specialized, 6061 alloy, 6-degree upsweep,
8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Saddle Body Geometry Bridge Saddle, steel rails
Grips Specialized Trail Grips
Seat Post TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm,
S3: 150mm. S4-S5: 170mm, S6: 200mm
Accessories SWAT SWAT Internal downtube storage
Weight 26.08 kg (57 lb, 7.8 oz)
Weight Size S4
