Motor Specialized 3.1 Motor, 105Nm torque, 810W power
Battery 840Wh battery

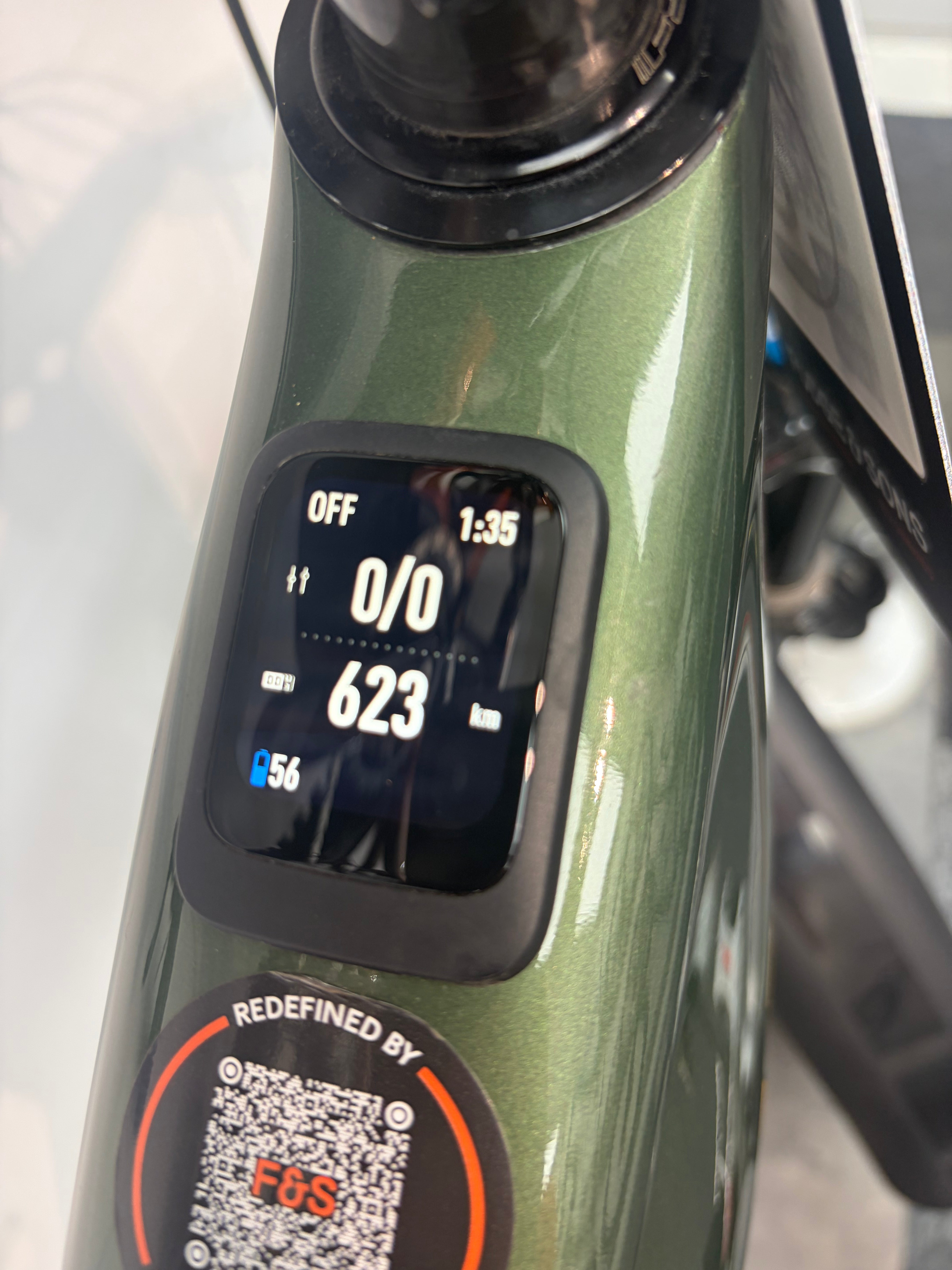

UI/Remote All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Charger Specialized 4amp charger
Frame All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Seat Binder Alloy, 38.6mm
Rear Shock FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment
Fork Fox 38 Performance Elite series, 29", Grip X2 damper,15x110mm axle, 44mm offset, 160mm of travel
Front Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor
Rear Brake SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
Shift Levers SRAM AXS POD Controller
Rear Derailleur SRAM GX Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
Cassette SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Chain SRAM GX Eagle Transmission Flattop Chain
Crankset SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Chainrings SRAM 34t T-Type chainring, 104 BCD, steel
Front Tire Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Front Wheel Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
Rear Tire Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Rear Wheel Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
Inner Tubes Standard, Presta valve
Stem Alloy Trail Stem, 35mm bar bore
Handlebars Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise 780mm width, S3-S5: 40mm rise, 800mm width
Grips Deity Lockjaw grips
Saddle Bridge Comp, Hollow Cr-mo rails
SeatPost PNW Loam post w/travel adjust S2: 125mm, S3: 170mm, S4/S5/S6: 200mm
SWAT SWAT internal downtube storage
Weight 24.41 kg (53 lb, 13.0 oz)
Weight Size S4
